Key Specifications and Ratings
Consolidates 6 circuitsQuick connect input terminalsComes with clear, insulating coverRetail Pack Quantity: 1PC
Voltage Rating32VDC
Current Rating (Per Circuit)30A
Current Rating (Max Input)100A
Features and Application

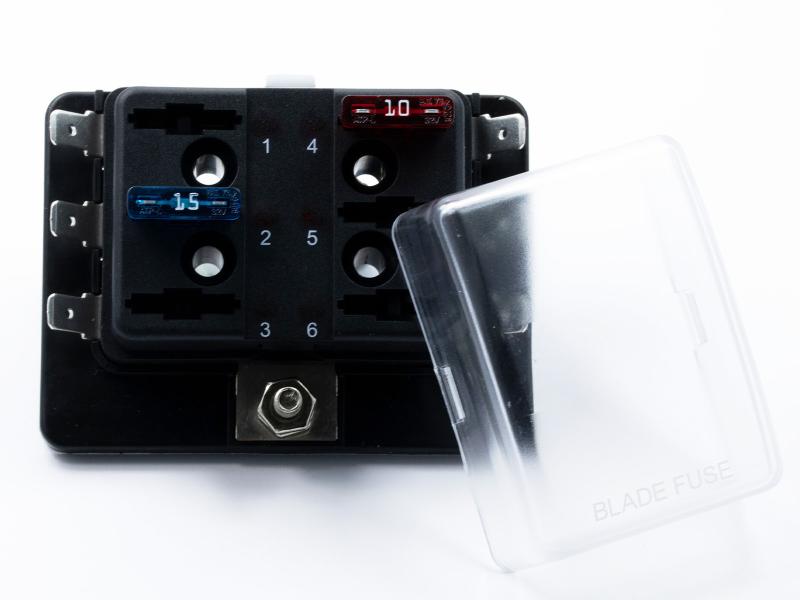

  • Fuse block used to distribute power to automotive electrical systems and provide compact circuit protection for 6 circuits with Regular (ATO/ATC style) blade fuses.
  • The rated current is 30A per position and 100A total for the fuse block.
  • Comes with an insulating cover that offers protection against short circuits, as well as from dirt, dust, and splashes.
  • NEW: Select products are available in attractive retail packaging including blister & clamshell packs and convenient multi amperage assortment packs.
Dimensions and 3D view
Dimensions
Length2.48
Height0.83
Width3.35
UnitInch
Custom solutions
Dimensions and 3D view
Custom solutions
Dimensions
Length2.48
Height0.83
Width3.35
UnitInch
