Fuses
Regular Automotive Blade


ANR

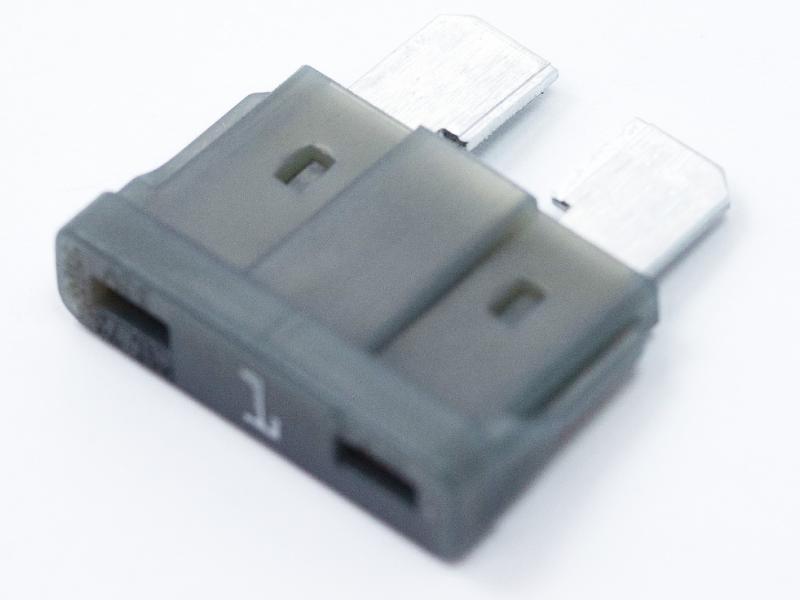

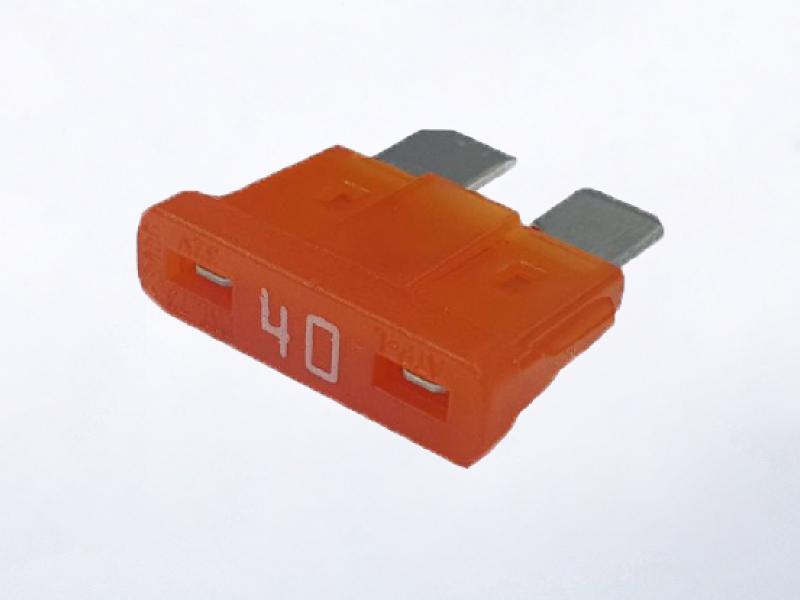

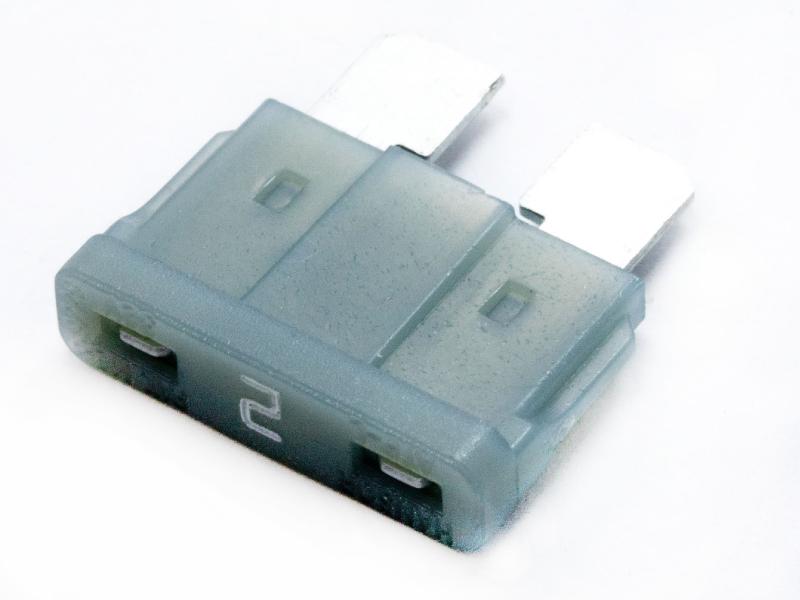

ANR Automotive Blade Fuse
Fast Acting/Blade Mounting
A cost-effective standard automotive fuse for use in automotive, battery and general DC applications.

 Body Material: PA 66

 Electrical Specifications

 3A-40A   32VDC

  spec sheet
 Design Standards
 ISO 8820 Standard Specifications

Time Characteristics
110%
100h
min. hold time
135%
1800s
max. hold time
200%
5s
max. hold time

 Amperage - (3, 4, 5, 7.5, 10, 12, 15, 20, 25, 30, 35,40)A *

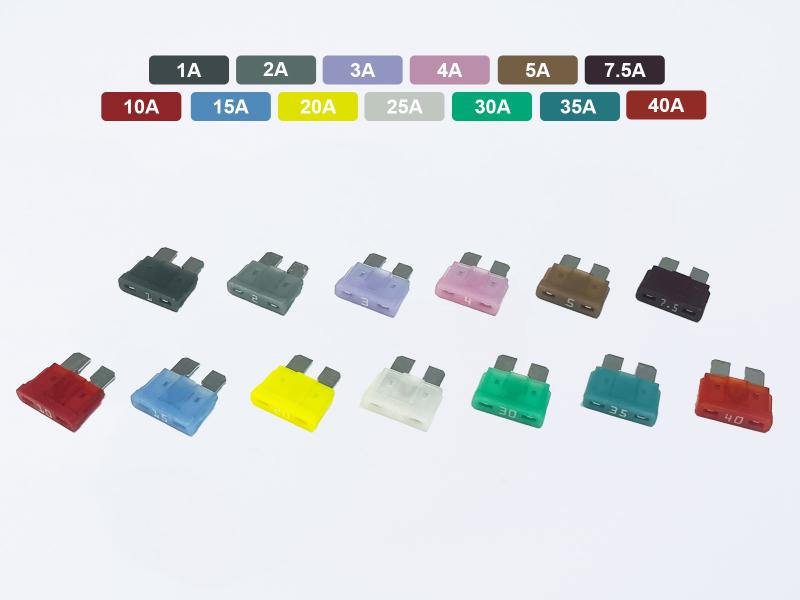

  *  see color chart at the top right portion of screen



 Other Regular Automotive Blade Fuses
Amperage Body Color

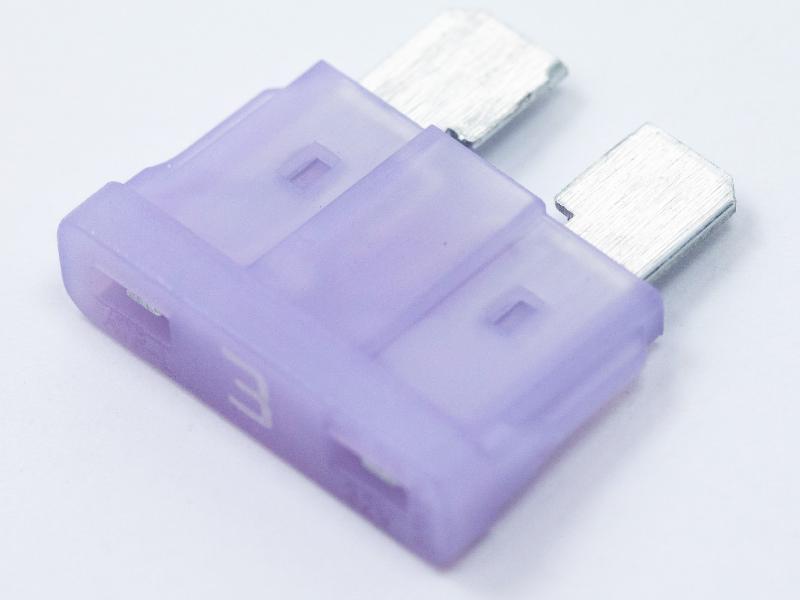

3A
Violet

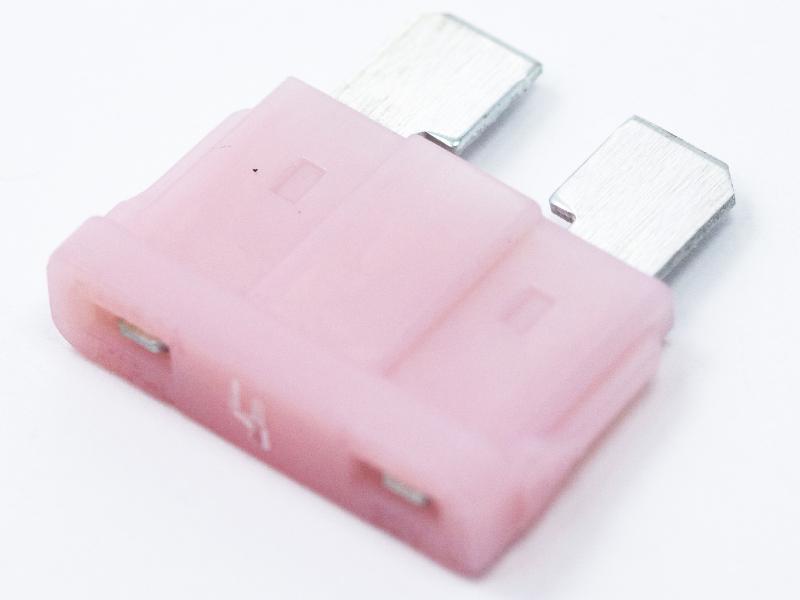

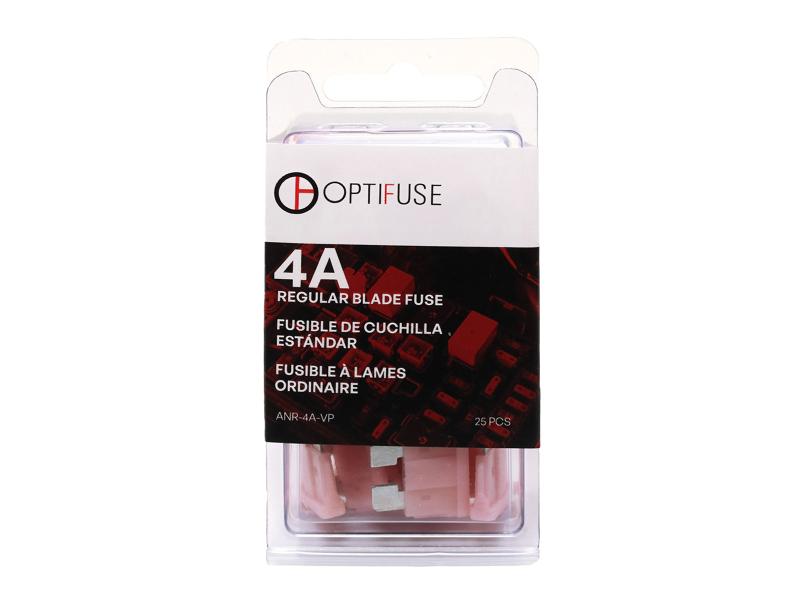

4A
Pink

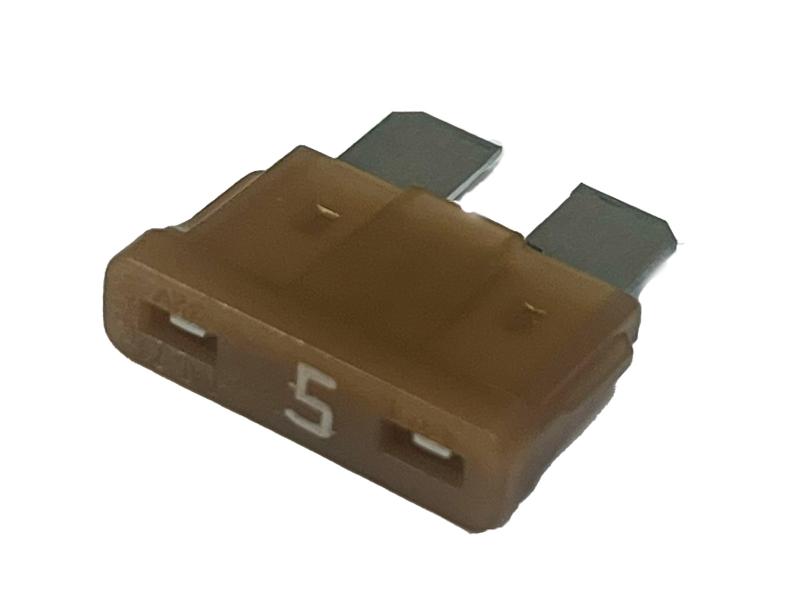

5A
Tan

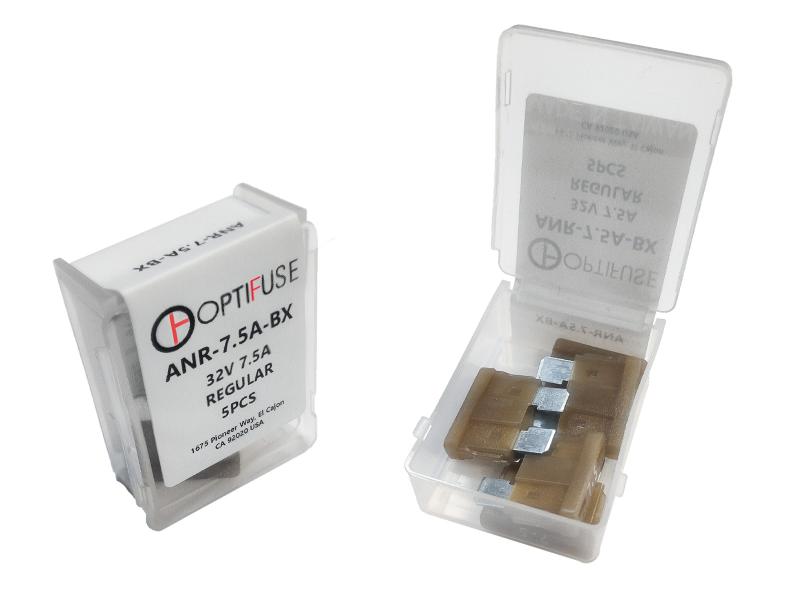

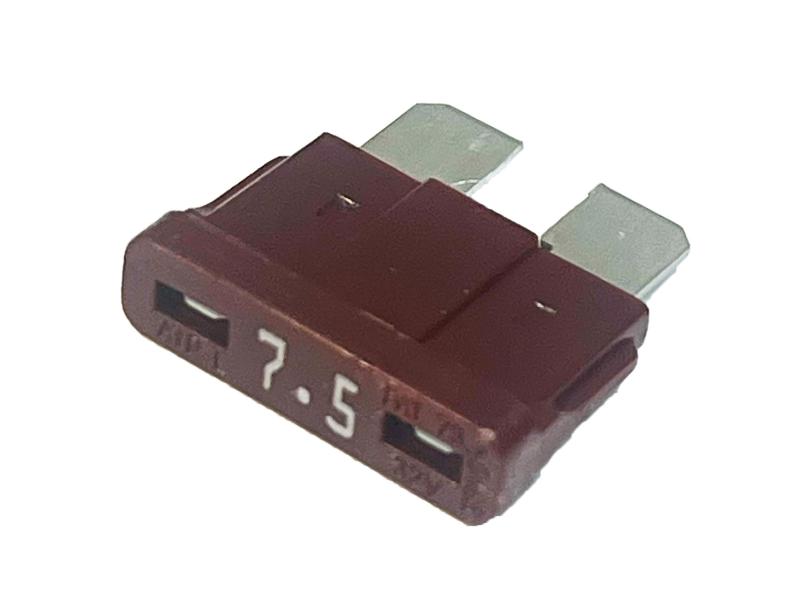

7.5A
Brown

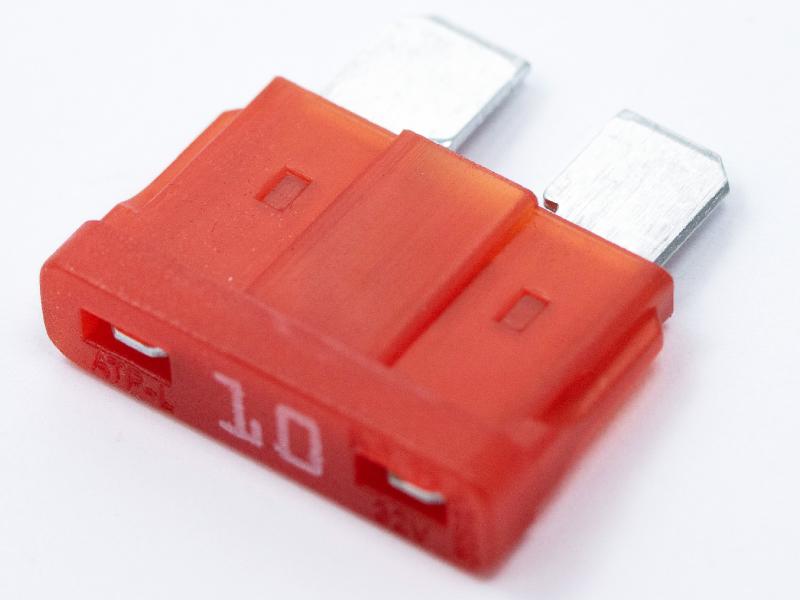

10A
Red
12A
Light Pink

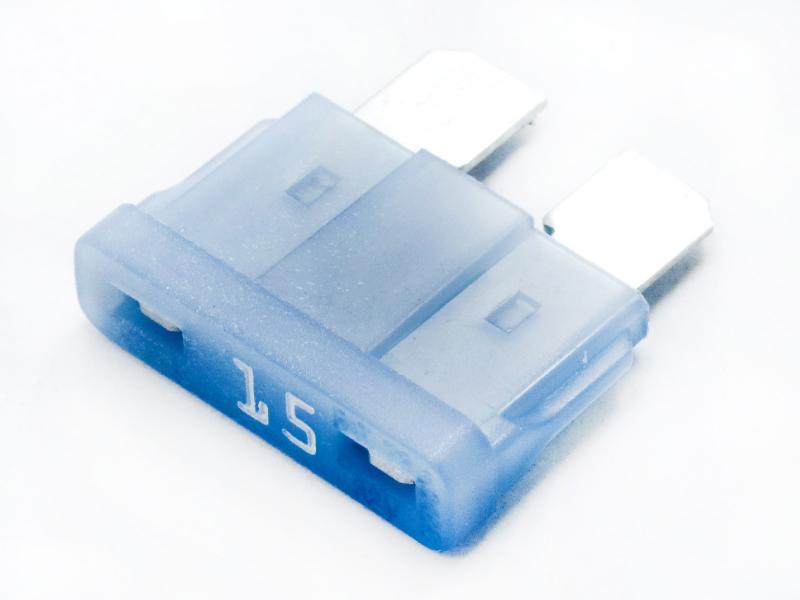

15A
Blue

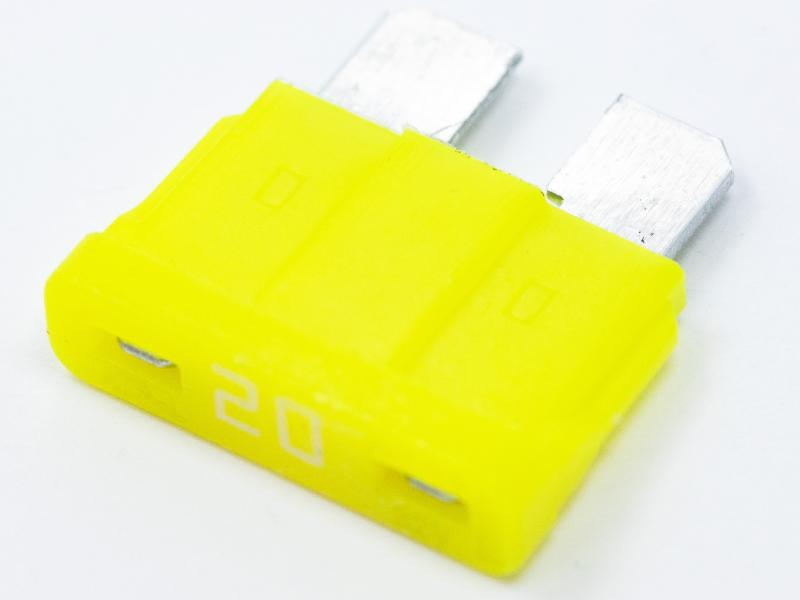

20A
Yellow

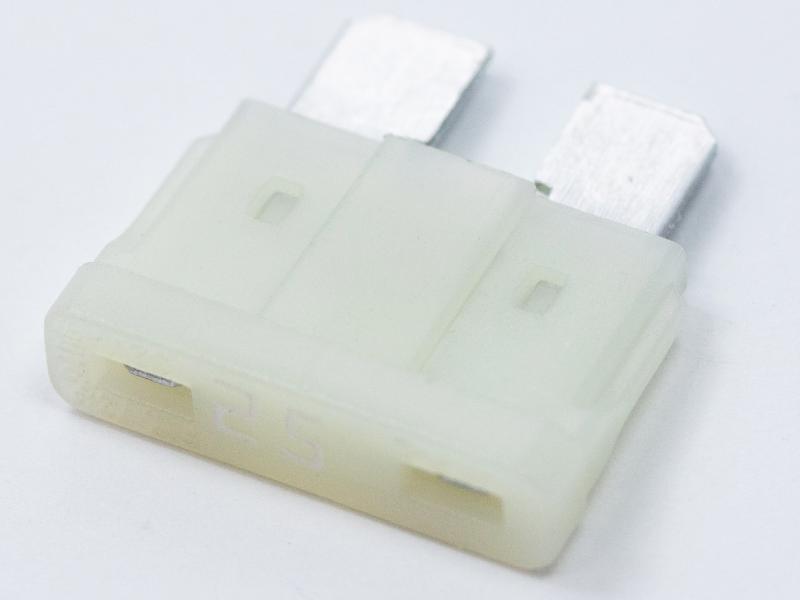

25A
Clear

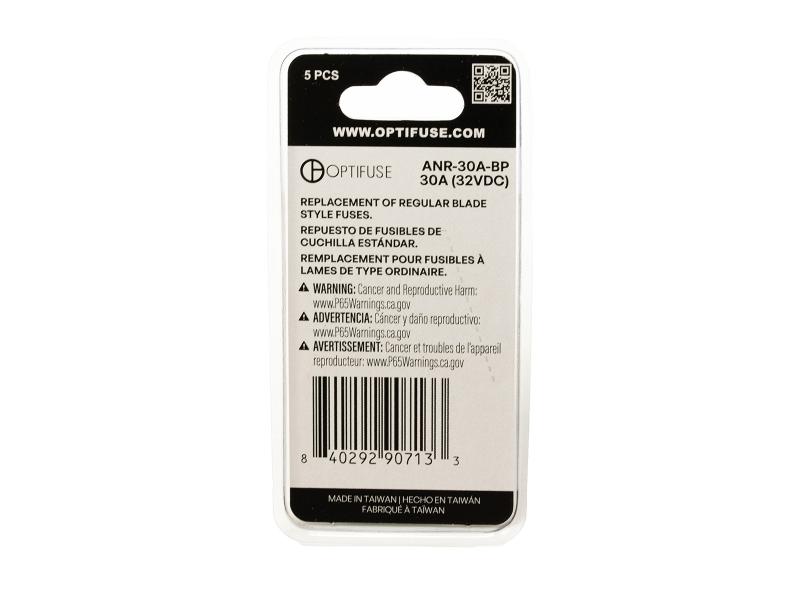

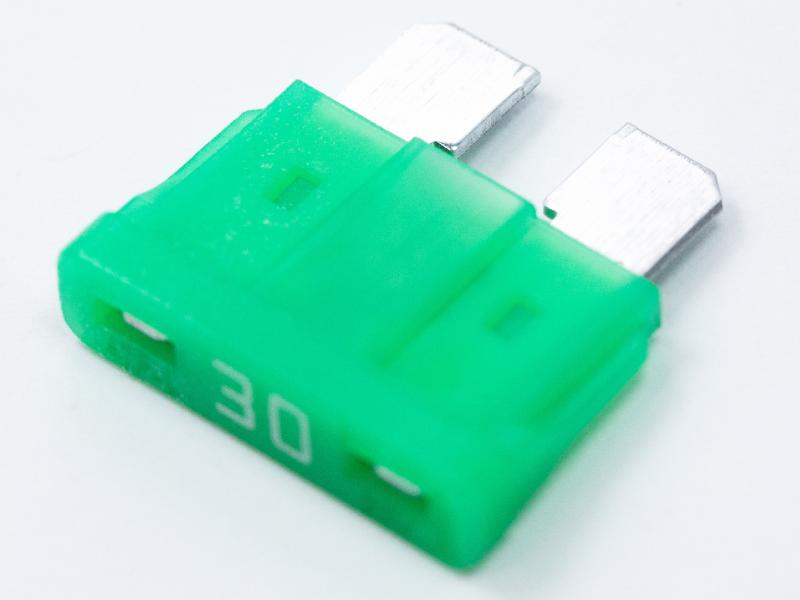

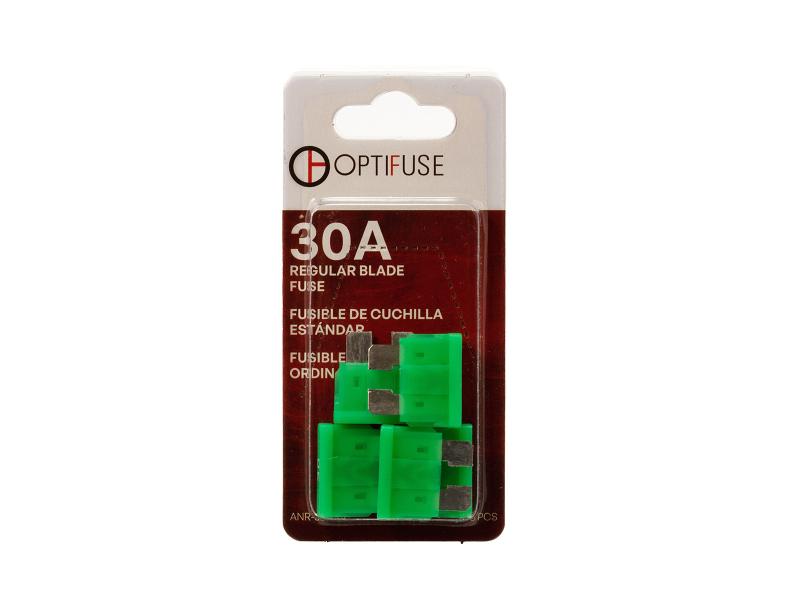

30A
Green
35A
Blue Green
40A
Amber
