Fuses
Subminiature PCB Fuses

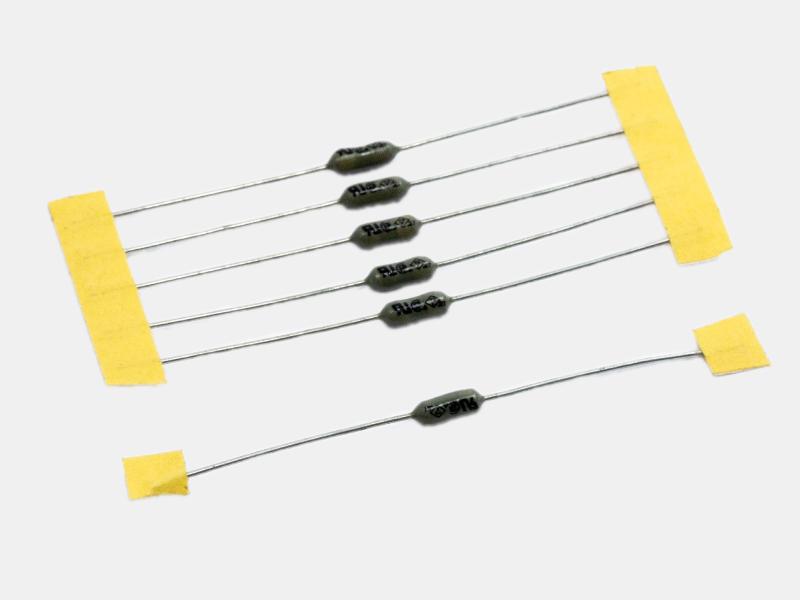

TXG

TXG

Time-Delay / Epoxy Coated
2.7 x 7.3mm

A high performance time-delay current-limiting PCB mount fuse used in printed circuit board component protection applications.
Electrical Specifications
100mA - 7A
spec sheet
Time Characteristics
100% 4h Min hold time
200% 60s Max hold time
300% 0.2 - 3s Max hold time
800% 0.0025 - 0.1s Max hold time


Interrupting Rating
30A @125/250VAC


Agency Standards & Listings   UL  CSA
UL Listed 100mA-7A
CSA Certified 100mA-7A
MITI 1A-5A

 Mounting

Axial leaded only


 Other Subminiature PCB Fuses
