TCC / TCC-P


TCC / TCC-P

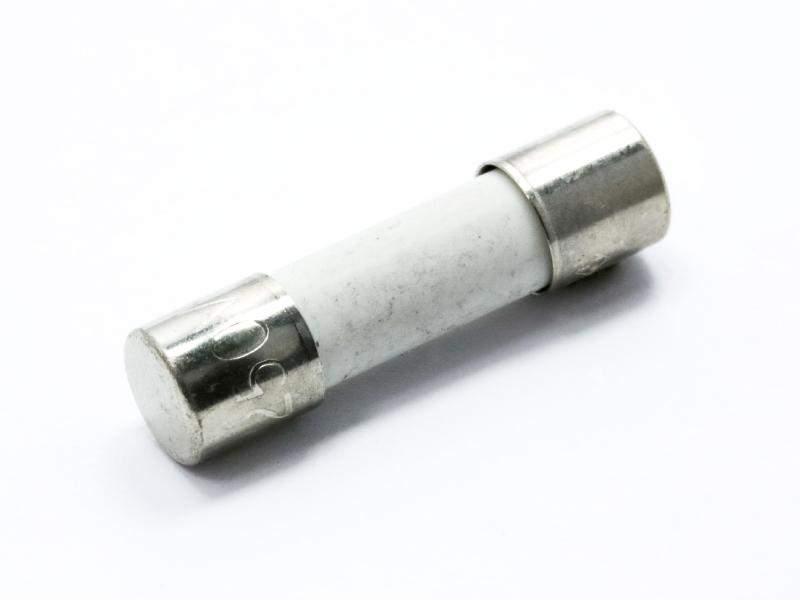

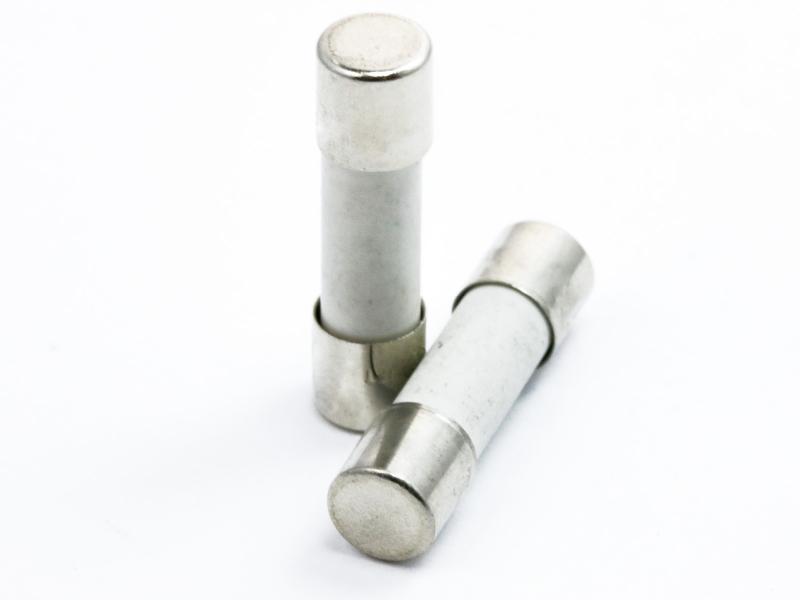

Ceramic - 5 x 20 mm (UL/CSA) - Time Lag
culus certification image
ul248 certification image
RoHS certification image
REACH certification image
Key Specifications and Ratings
5 x 20 mm (UL/CSA)Time lagCeramic fuseBox Quantity: 5PCS
Voltage Rating250VAC
Current Rating1A to 20A
Interrupt Rating750A AC
Features and Application

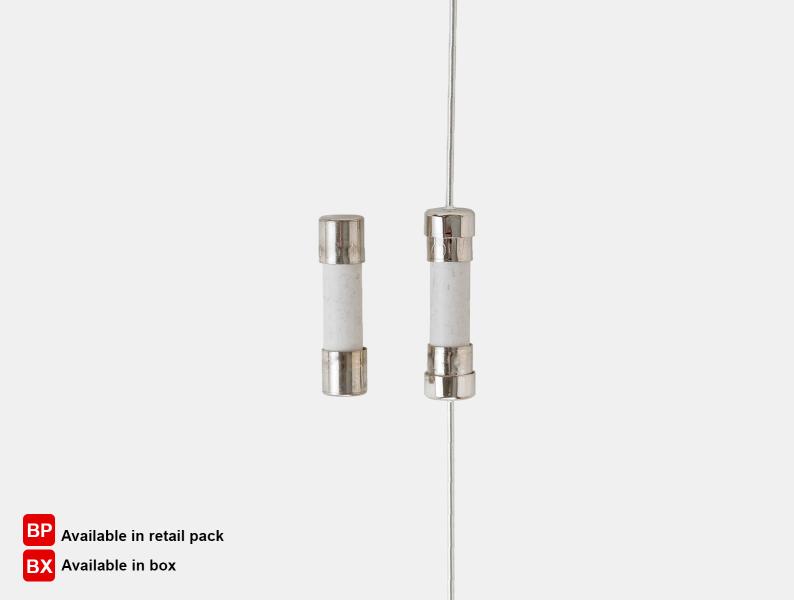

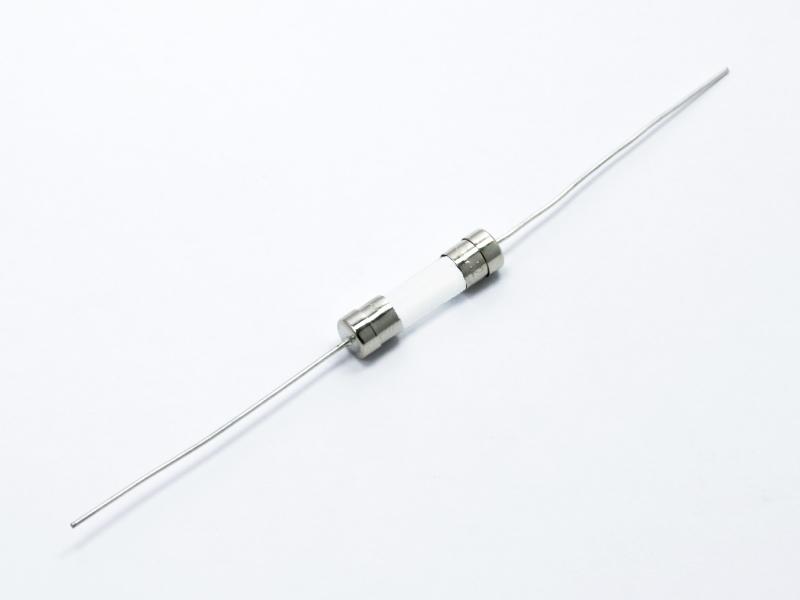

  • 20mm long and 5mm in diameter, this fuse is time lag with a ceramic body and is UL Listed. Available with or without axial leads
  • Time lag fuses are commonly used in applications where high but harmless inrush currents are needed for brief periods, such as with alternators. This fuse prevents nuisance tripping and opens only when an overcurrent sustains in a circuit.
  • Well suited for applications where high currents may occur due to the strong nature of the ceramic material.
  • NEW: Select products are available in pill boxes.
Dimensions and 3D view
Dimensions
Length0.2
Height0.79
Width0.2
UnitInch
Custom solutions
Dimensions and 3D view
Custom solutions
Dimensions
Length0.2
Height0.79
Width0.2
UnitInch
