Key Specifications and Ratings
Manual resetVertical mounting bracketBuilt of durable metal
Voltage Rating24VDC
Current Rating10A to 50A
Interrupt Rating 2000A DC
Features and Application
- Time-saving and cost-effective solution to protect auxiliary circuits in RVs, marine craft, emergency vehicles and heavy-duty trucks up to 24VDC.

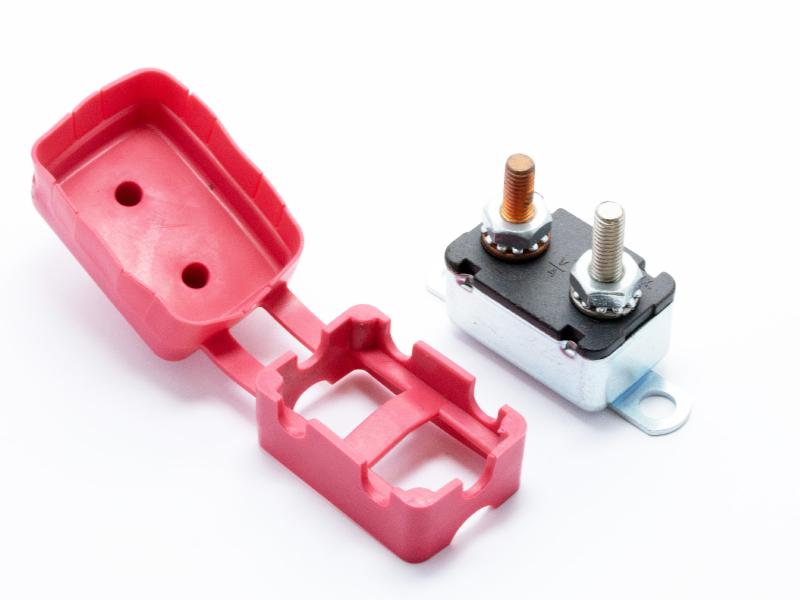

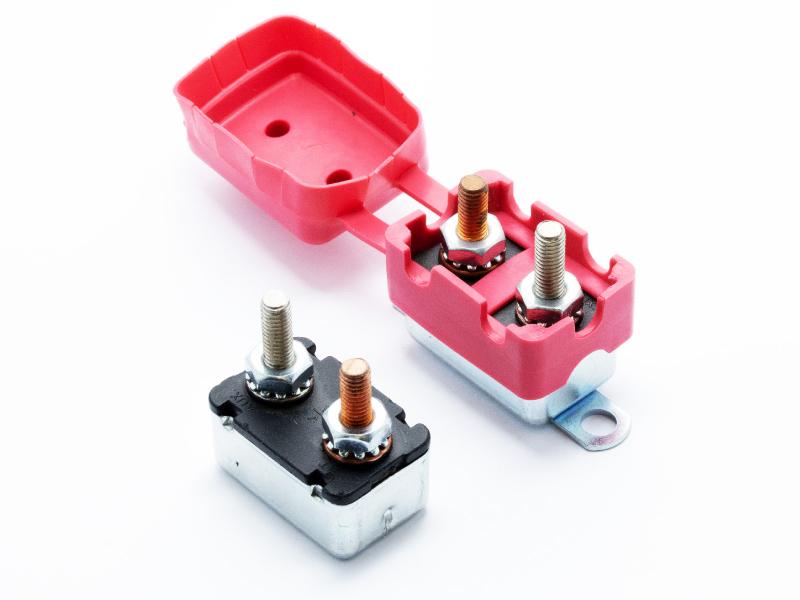

- Conforms to SAE J553 standard for circuit breaker performance and can be protected with a sealing cover, which offers defense against short circuits, dirt, dust, and splashes of water.
- Built with a durable steel body and a mounting bracket welded onto the circuit breaker for convenient mounting when installed individually.
Dimensions and 3D view
Dimensions
Length1.95
Height1.33
Width0.81
UnitInch
What is 3D CAD?
A 3D CAD (.STP) file ready to integrate into your project. Download and use it in your design software to streamline your workflow.
Custom solutions
Dimensions and 3D view
Custom solutions
Dimensions
Length1.95
Height1.33
Width0.81
UnitInch
What is 3D CAD?
A 3D CAD (.STP) file ready to integrate into your project. Download and use it in your design software to streamline your workflow.
