A fuse is an electrical device that protects circuits from overloads or short circuits by melting and breaking the connection when the current is too high. This prevents potential damage to electrical components, reduces the risk of fire, and ensures overall safety in electrical systems.



Characteristics of fuses



Here are the key characteristics of fuses:

• Voltage Rating: Maximum voltage the fuse can handle safely without causing damage. It ensures the fuse can interrupt the circuit without causing arcing or damage.
• Amperage Rating: Maximum current the fuse can carry before blowing. This rating determines the fuse’s threshold for protecting the circuit from overcurrent.
• Interrupting Rating: Maximum fault current the fuse can safely interrupt without hazard. It indicates the fuse’s capability to break the circuit under extreme conditions.
• Response Time: Time it takes for the fuse to blow when the current exceeds its rating, with options for fast-acting or time-delay.
• Physical Size/Shape: Dimensions and form factor, affecting compatibility with circuit designs and mounting.



This is how a fuse work



A fuse works by using a metal link designed to melt when it reaches a specific temperature due to electrical heat. When an overcurrent or short circuit occurs, the excess heat causes the fuse link to melt, breaking the circuit and stopping the flow of electricity. This interruption prevents damage to other devices in the circuit and ensures overall safety.

The primary difference between circuit breakers and fuses is that circuit breakers are resettable and reusable, while fuses need to be replaced after each trip.

In order to select the proper protective device, the following parameters and criteria need to be considered:

• Understanding Overcurrents
• What is the normal operating current of the circuit?
• What is the operating voltage?
• Is the circuit AC or DC?
• What is the operating ambient temperature?
• What is the available short circuit current?
• What is the maximum allowable I²t?
• Are there in-rush currents available?
• Is the protective device being used for short circuit protection, over-load protection, or both?
• What are the physical size limitations?
• Is the PCB surface mount or thru-hole?
• Does the fuse need to be “field-replaceable”?
• Is resettability an issue?
• What safety agency approvals are needed?
• How will I mount the device?
• What are the cost considerations?

Fuses themselves do not have polarity. They are designed to be non-polarized components, meaning they can be installed in either direction within a circuit without affecting their functionality.

Installing the wrong fuse can be hazardous. If you use an oversized fuse, it won’t protect the circuit properly, which can lead to damage to downstream devices, overheating, and potentially cause fires. Conversely, using a fuse with too low a rating may cause frequent blowouts and disrupt the circuit’s operation. Proper fuse selection is crucial for ensuring safety and functionality.

AC and DC fuses are designed differently due to the nature of the currents they handle:

• AC Fuses: Tested and designed for alternating current. They can take advantage of the natural zero-crossing points in AC voltage, which helps in interrupting larger fault currents more effectively. AC fuses typically have a higher interrupting capacity and can clear faults more efficiently due to these zero-voltage moments.
• DC Fuses: Designed for direct current, where the current flow is constant and does not have zero-crossing points. This makes interrupting the circuit more challenging, as there is no natural point to interrupt the current. DC fuses generally have different design considerations to handle continuous current and higher interrupting capacities without these natural zero-voltage moments.

There are many types of fuses, but they can be broadly categorized into the following types:

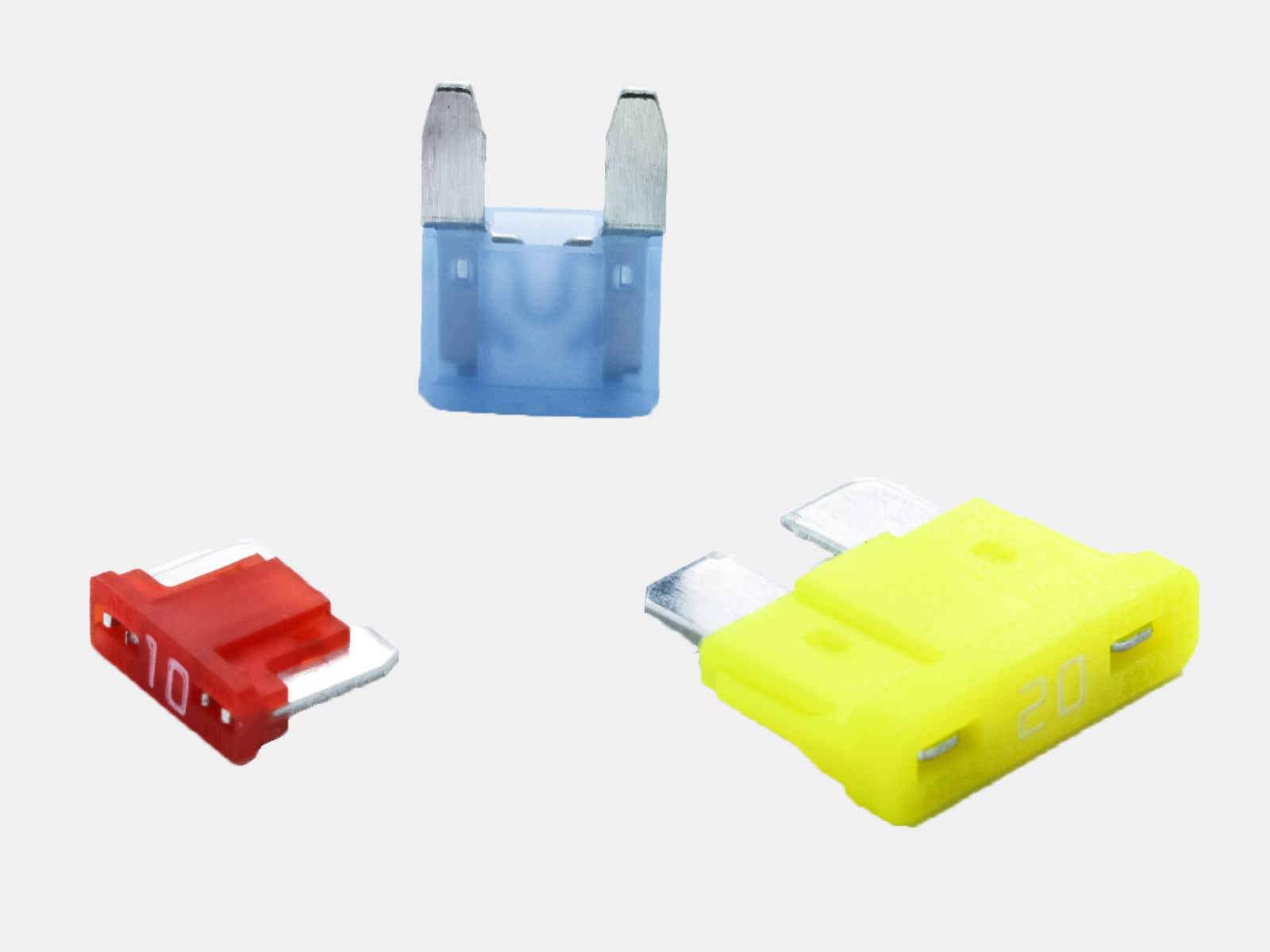

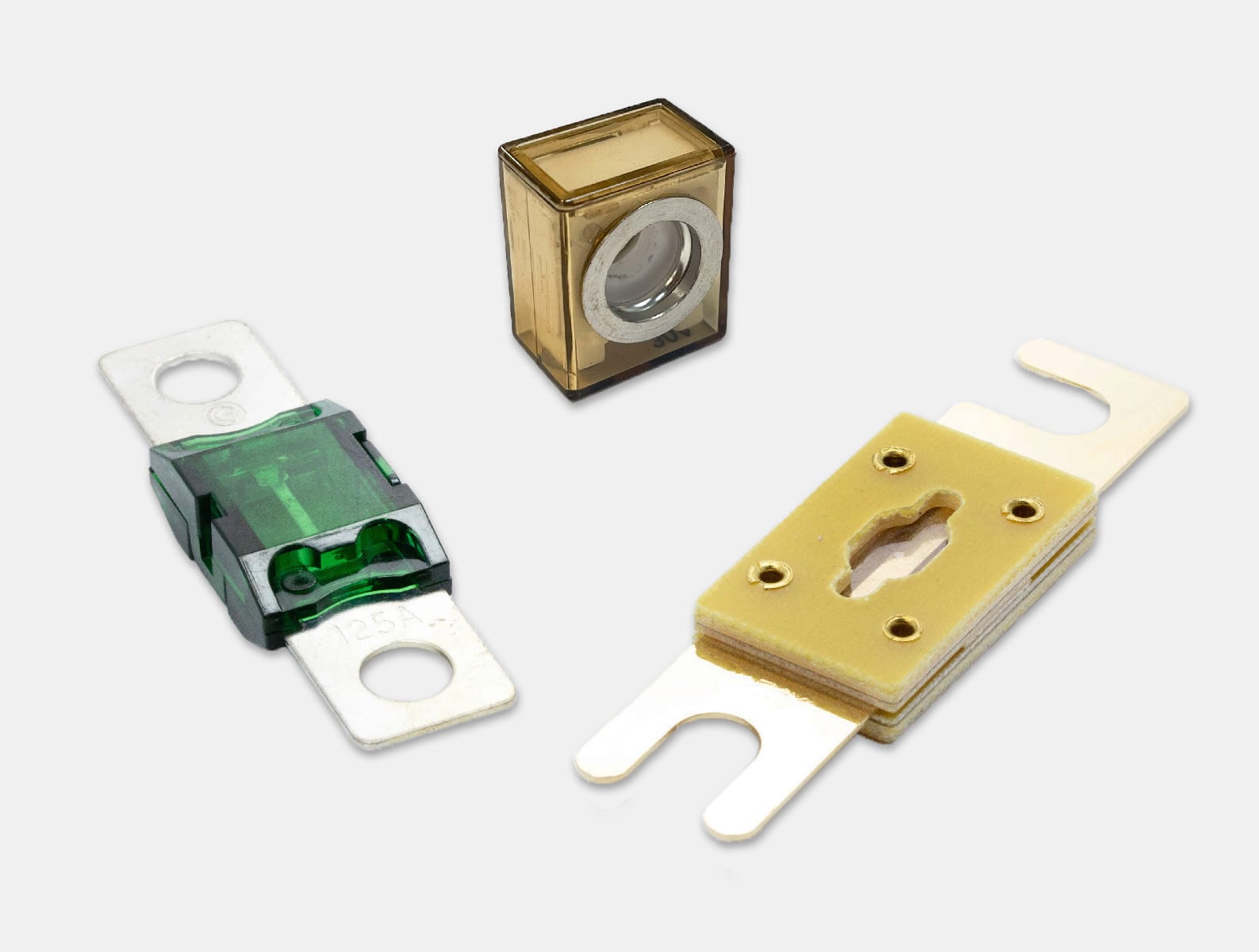

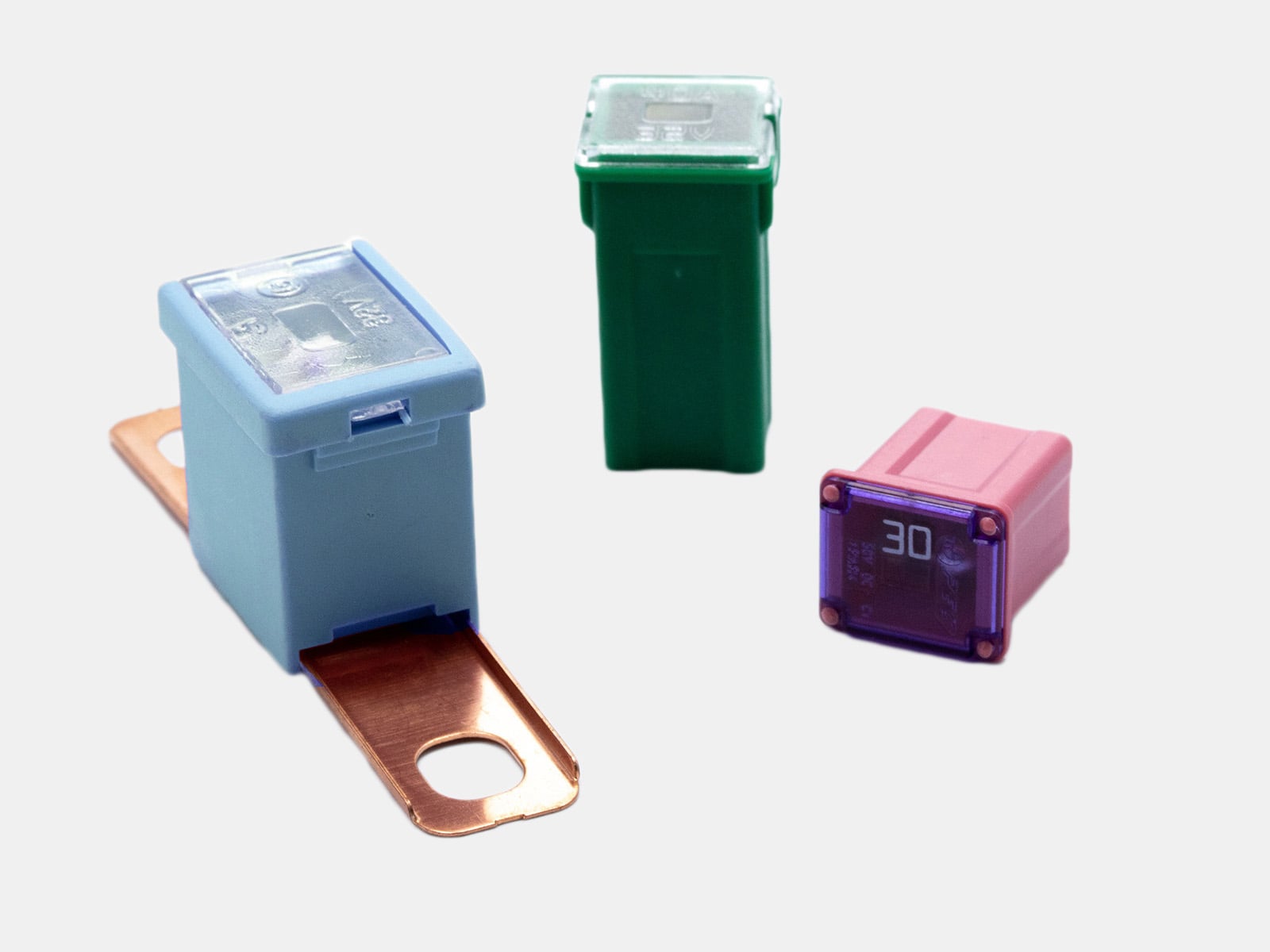

• Automotive Fuses: Includes Blade, Link, Bolt-On, and Glass

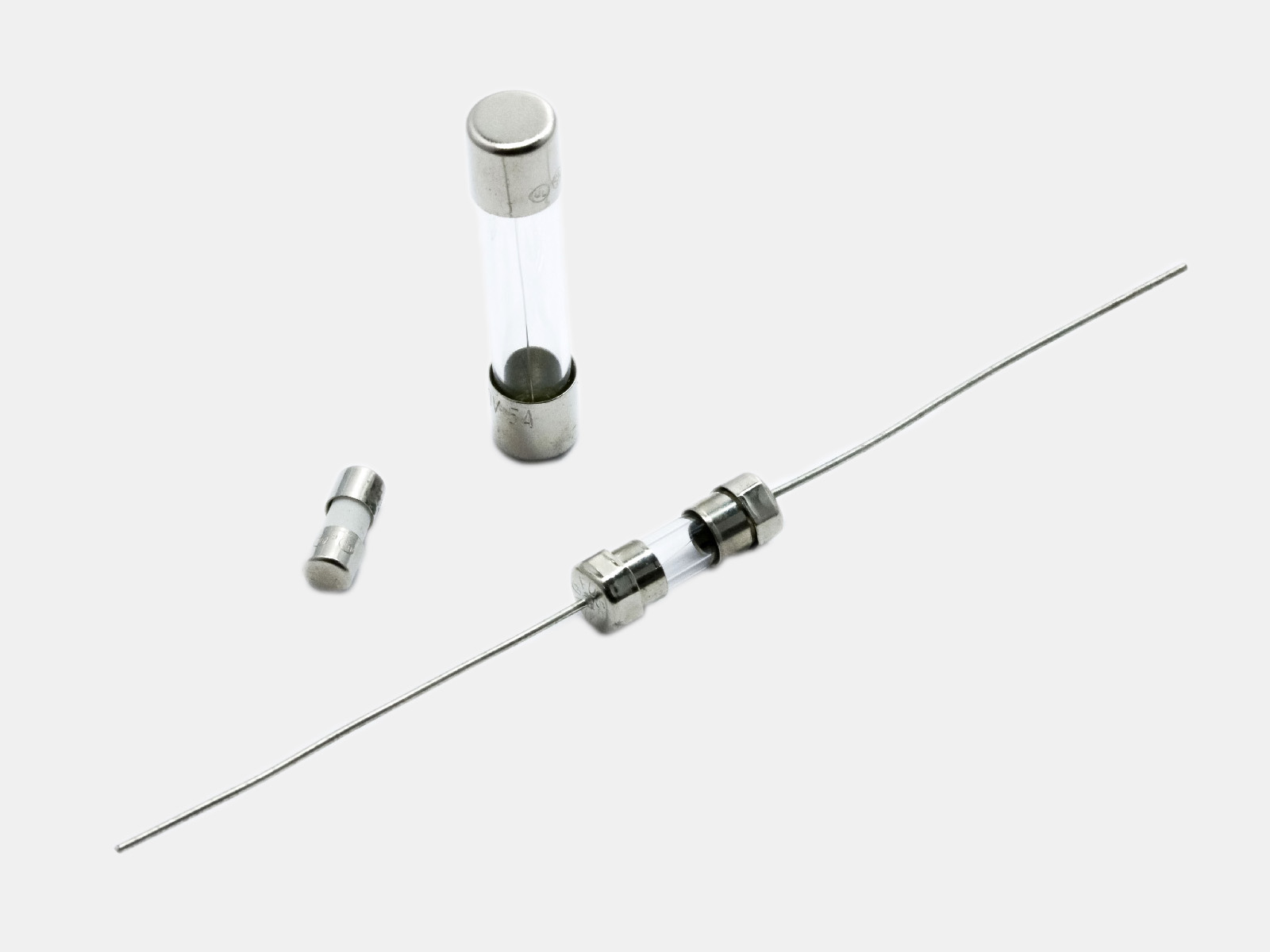

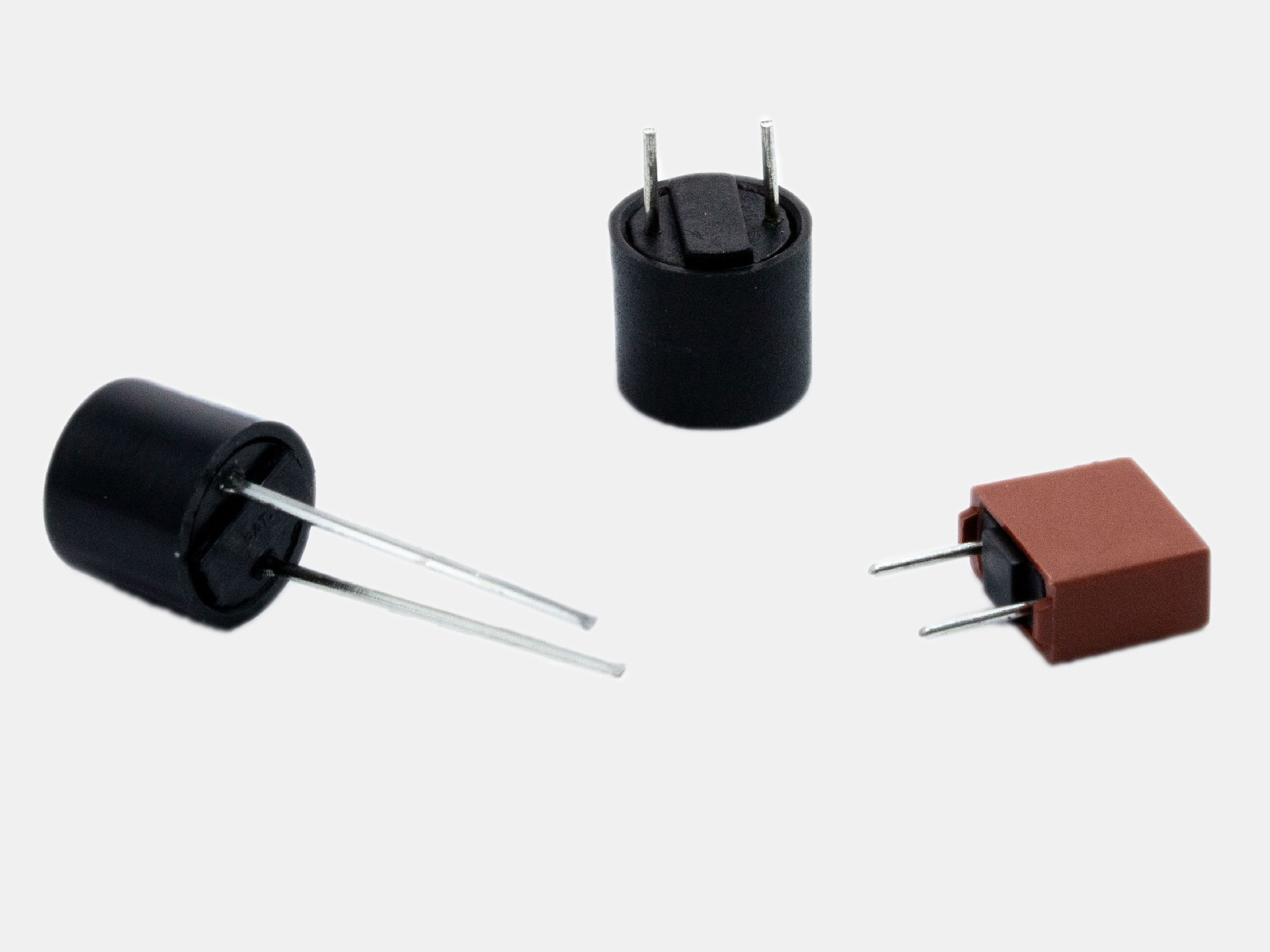

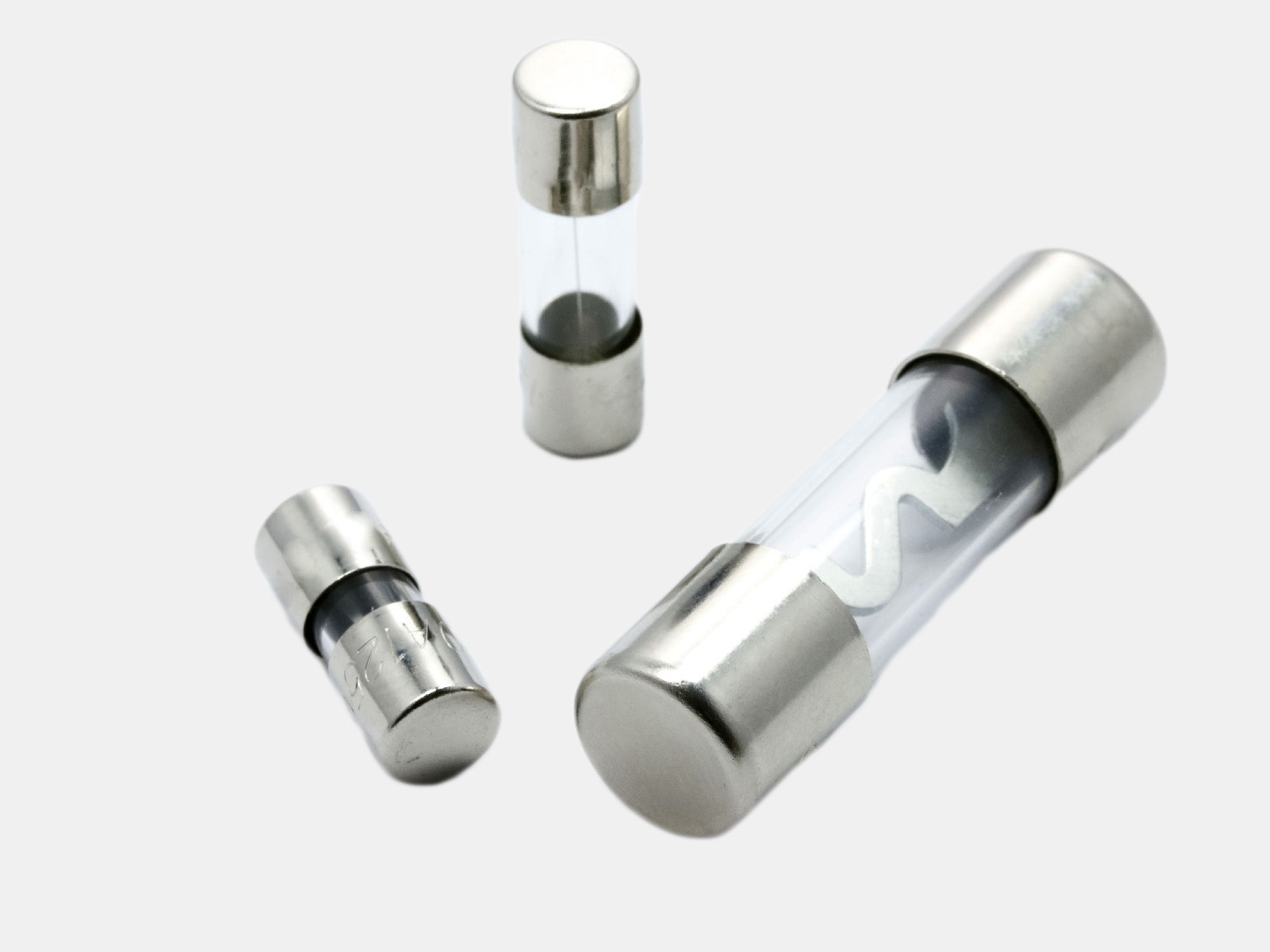

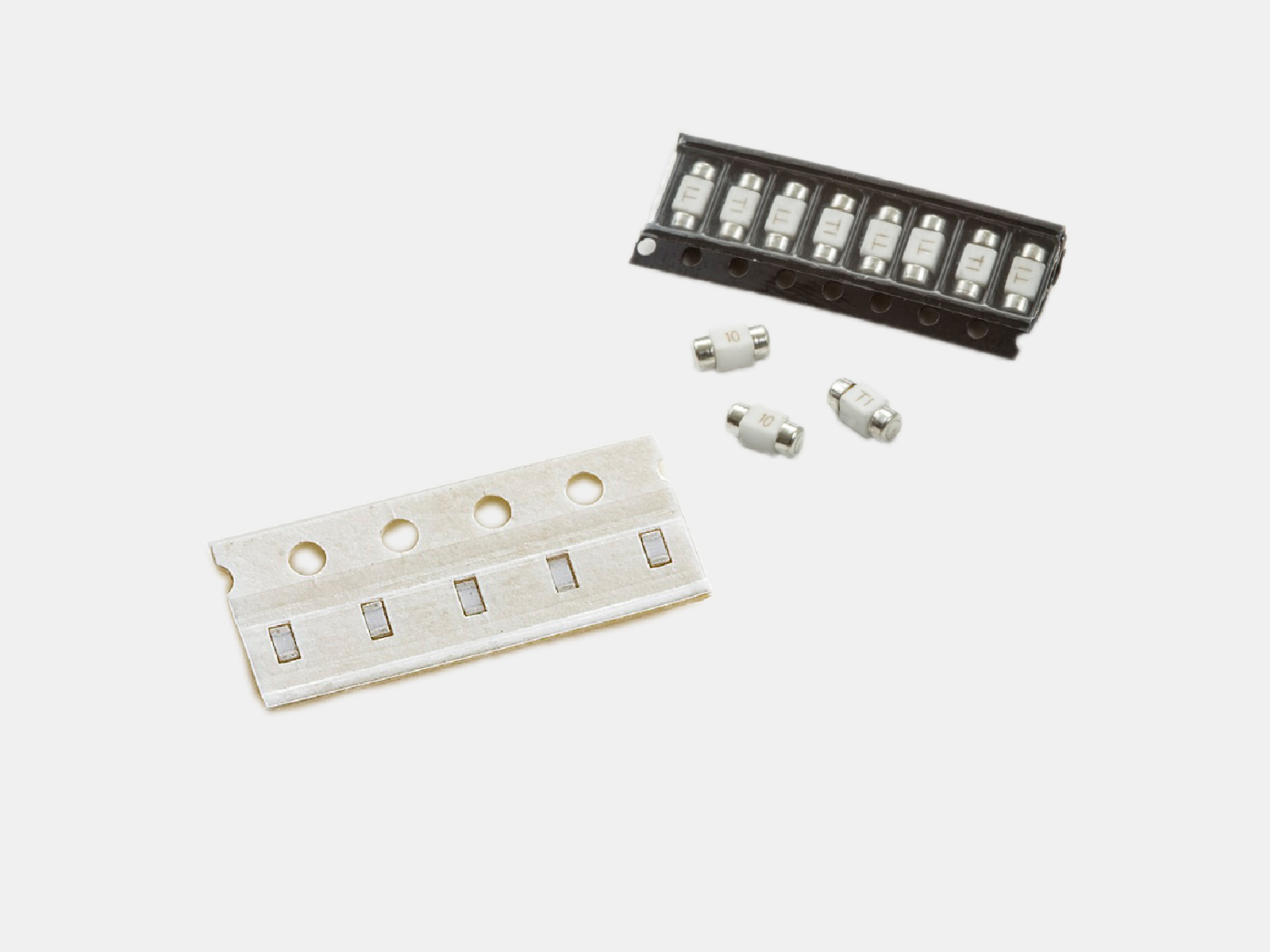

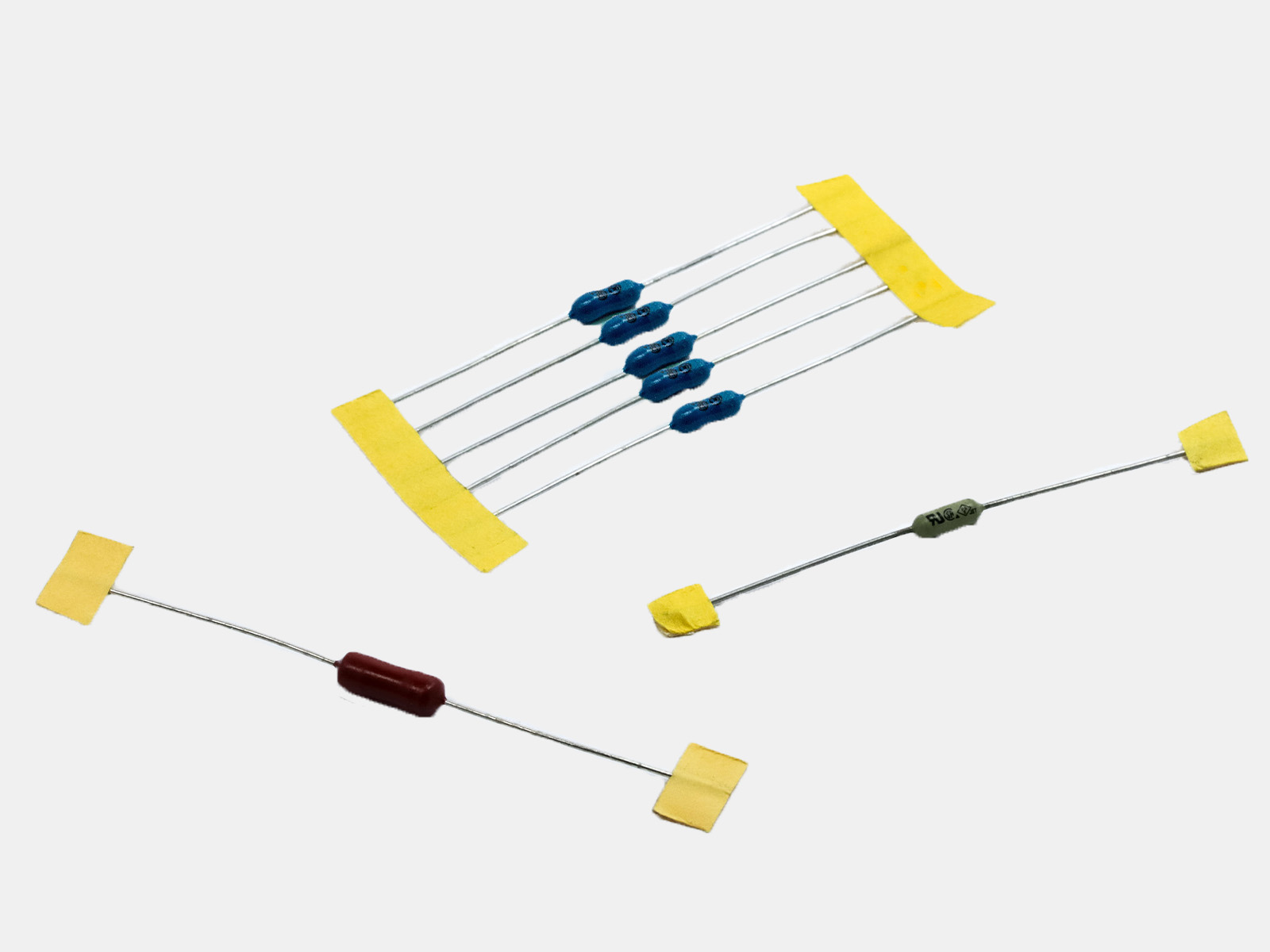

• Electronic Fuses: Includes Glass & Ceramic, Surface Mount (SMD), Micro, and Subminiature fuses.

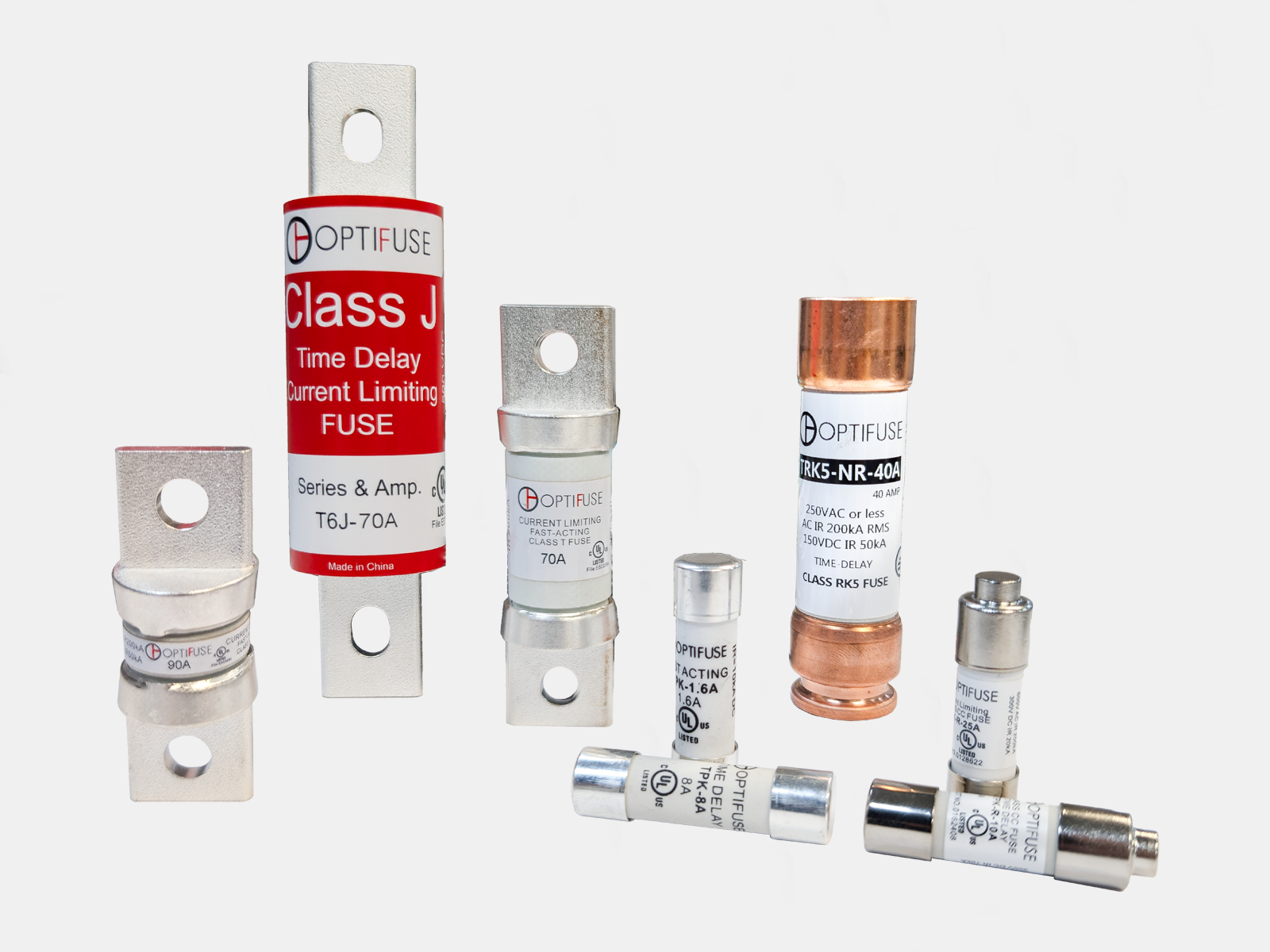

• Industrial Power Fuses: Designed for high-current and high-voltage applications.

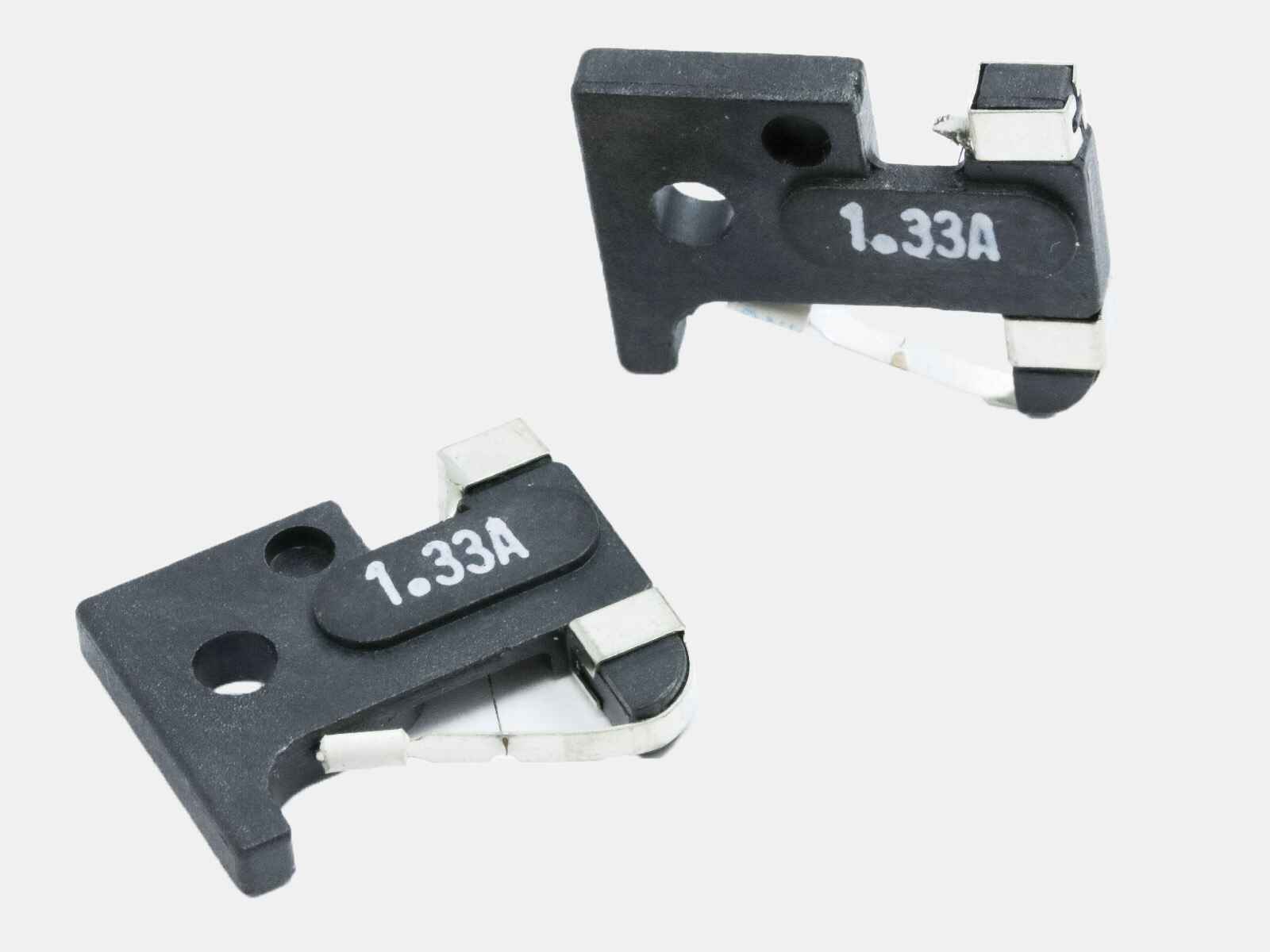

• Telecom Fuses: Used in telecommunications equipment.

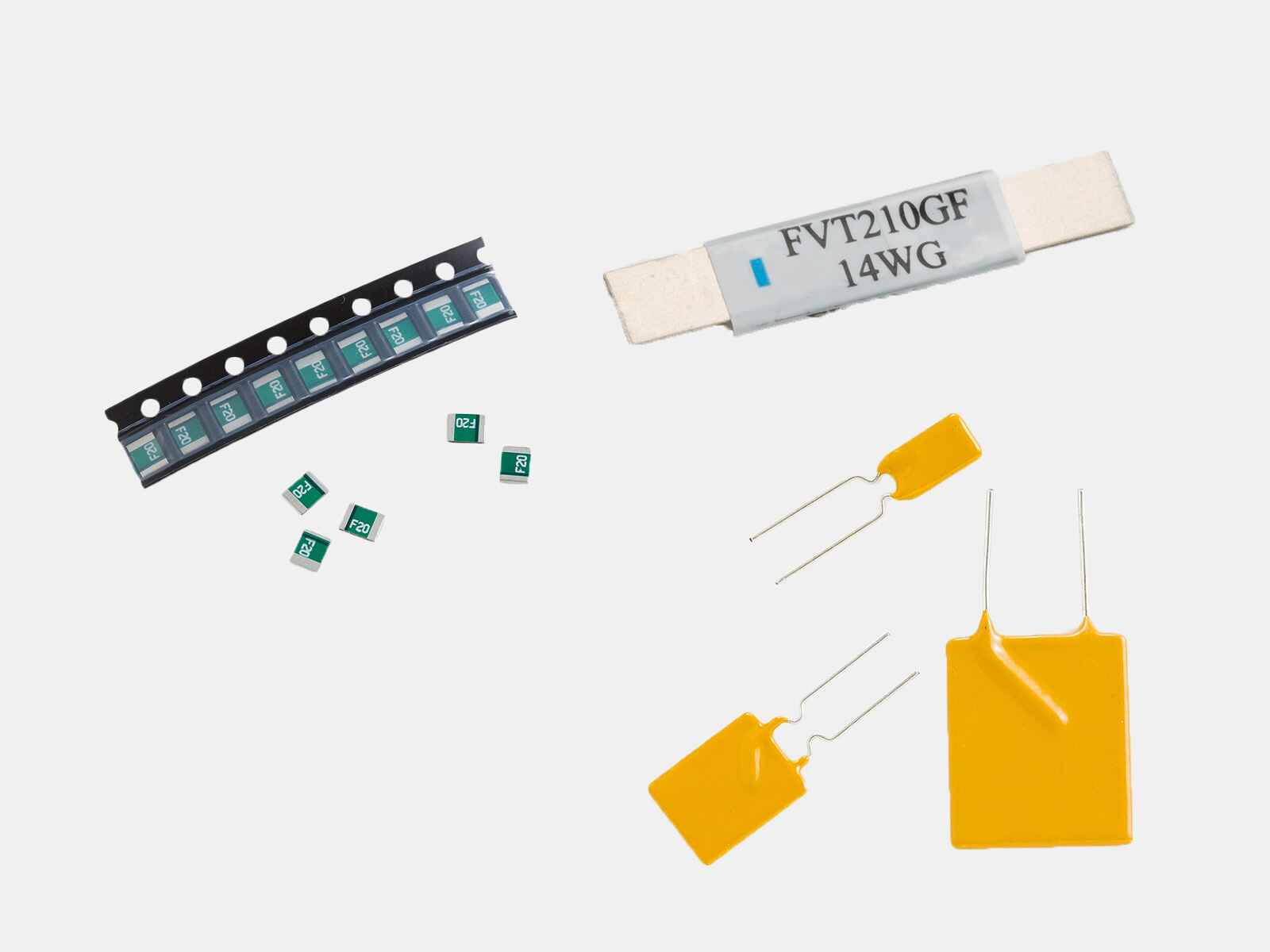

• Resettable Fuses (PTC): Polymer-based fuses that can reset after a fault condition is cleared.

There are many different sizes of fuses, which vary depending on the mounting type and available space for your application. The size of a fuse can differ greatly based on its category, such as automotive, electronic, or industrial fuses. To find specific sizes for your needs, you can use the OptiFuse website, which offers filters to help you select the appropriate fuse style and size for your application.

Indicator fuses have a built-in visual signal to show when the fuse has blown. An LED lights up to alert you, allowing you to replace the fuse without needing to test it manually.

Depending on the type of fuse and its mounting method, it may be possible to check a fuse without removing it. This includes indicator fuses, fuses with an open window that allows you to visually inspect if the fuse link is intact, and fuses installed in indicating fuse blocks that contain LEDs which light up when the fuse has blown.
