Modular Design Fuse Blocks: 4 Blocks with only 2 Modules
Versatile, simple to use and easy to inventory. With only two part numbers, OptiFuse’s new modular design allows for the creation of four different Regular (ATO/ATC style) blade fuse blocks.

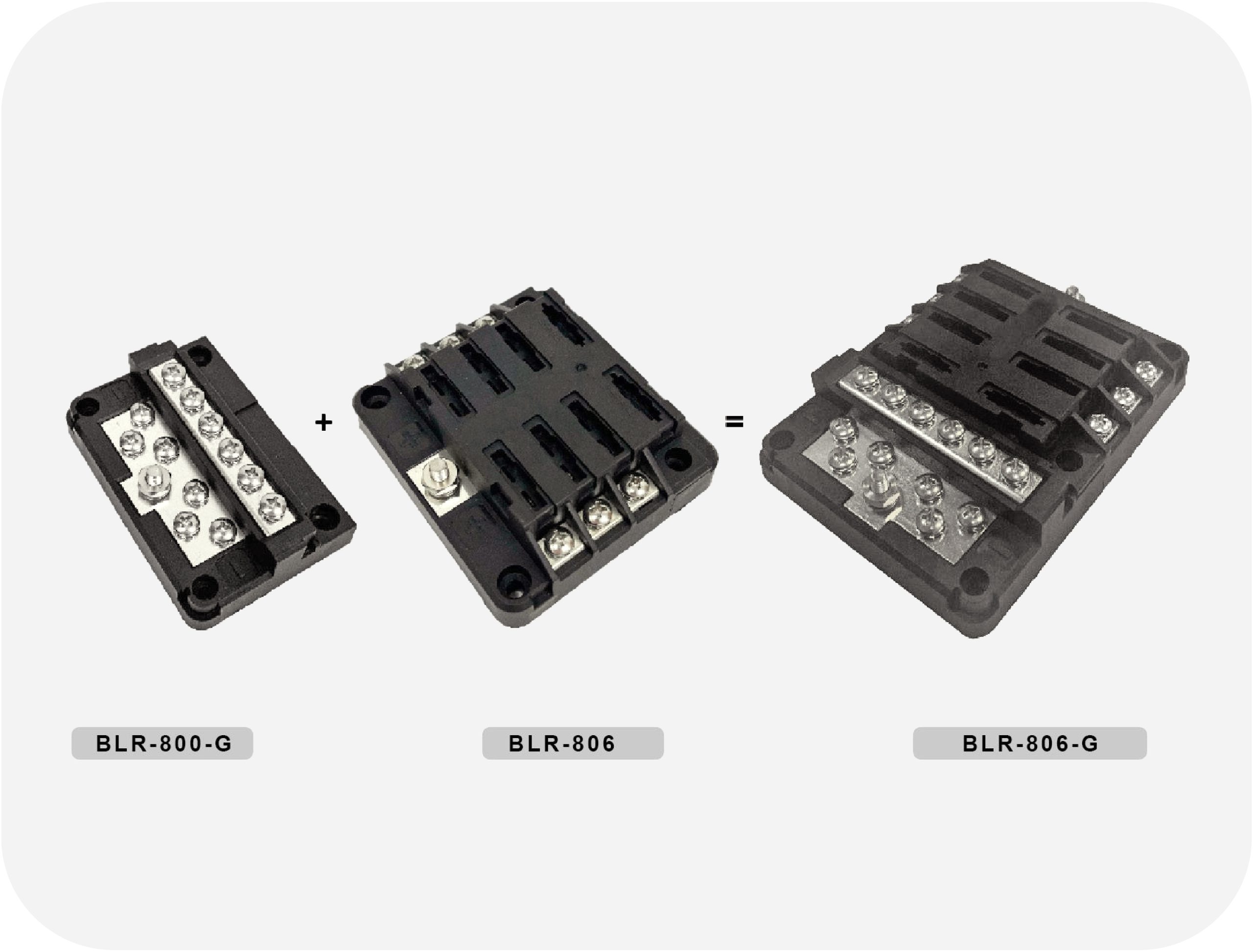

Basic Modules: 2 MODULES for 4 BLOCKS
• Accepts regular (ATO/ATC style) blade fuses.
• Rated up to 30A per position and 100A total for the block.
• Built with an LED light for each circuit that illuminates when a circuit opens and a fuse needs to be replaced.
• Comes with an insulating cover that offers protection against short circuits, as well as from dirt, dust, and splashes.
• Designed with screw terminals for secure wiring, especially beneficial in emergency vehicles.
• Fuse block comes with 60 pieces assorted label stickers and storage for 2 spare fuses.
Basic Modules
Combined Models
BLR-I-806
6
Fuse Block with LED
BLR-I-806-G
6
Fuse Block with LED and Ground Bus
BLR-I-812
12
Fuse Block with LED
BLR-I-812-G
12
Fuse Block with LED and Ground Bus
*All models can also be sold without covers or without blown fuse indicating LEDs.
For detailed information on selecting the appropriate fuse for your application, see our Fuse Selection Guide for complete context.
