Key Specifications and Ratings
Interlocking pins to create a multi-fuse block
Voltage Rating500VDC
Current Rating30A
Features and Application

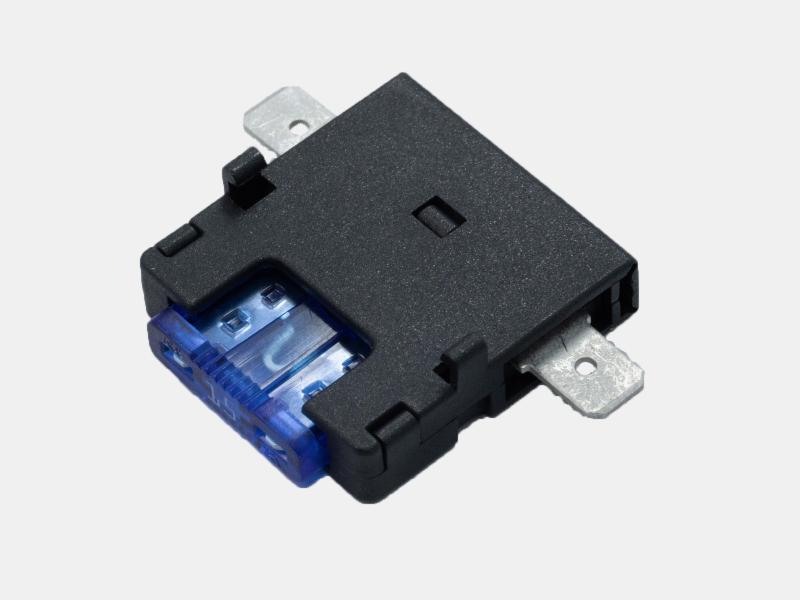

- Single position fuse block for Regular (ATO/ATC style) blade fuses, intended for use when an added circuit is needed or for applications that have minimal circuit requirements.
- This block can safely handle up to 30A.

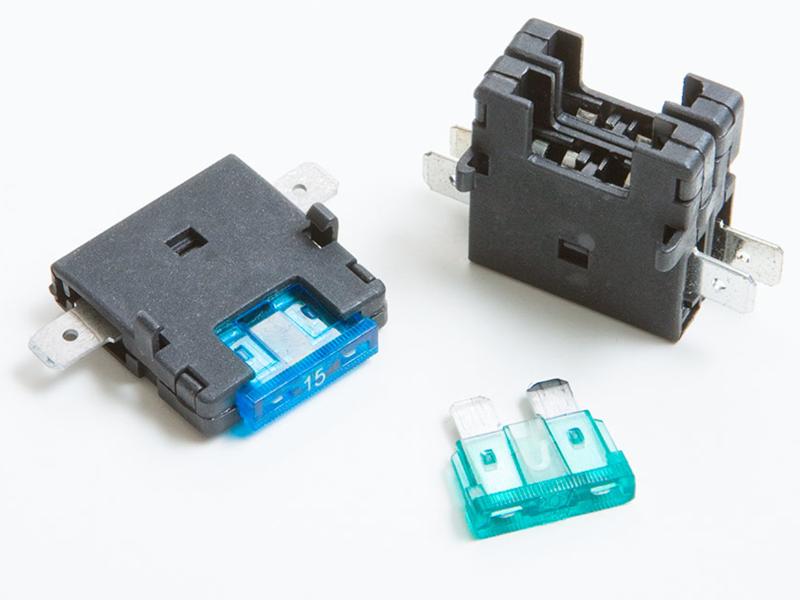

- Pins to buckle the fuse block on the panel. These pins let you connect an additional BLC-11 fuse blocks to create a 2-pole block.
Dimensions and 3D view
Dimensions
Length1.13
Height0.28
Width1.18
UnitInch
What is 3D CAD?
A 3D CAD (.STP) file ready to integrate into your project. Download and use it in your design software to streamline your workflow.
Custom solutions
Dimensions and 3D view
Custom solutions
Dimensions
Length1.13
Height0.28
Width1.18
UnitInch
What is 3D CAD?
A 3D CAD (.STP) file ready to integrate into your project. Download and use it in your design software to streamline your workflow.
