Key Specifications and Ratings
Phosphor-bronze, bright tin-plated pins Vertical fuse entry
Voltage Rating500VAC 250VDC
Current Rating80A
Features and Application

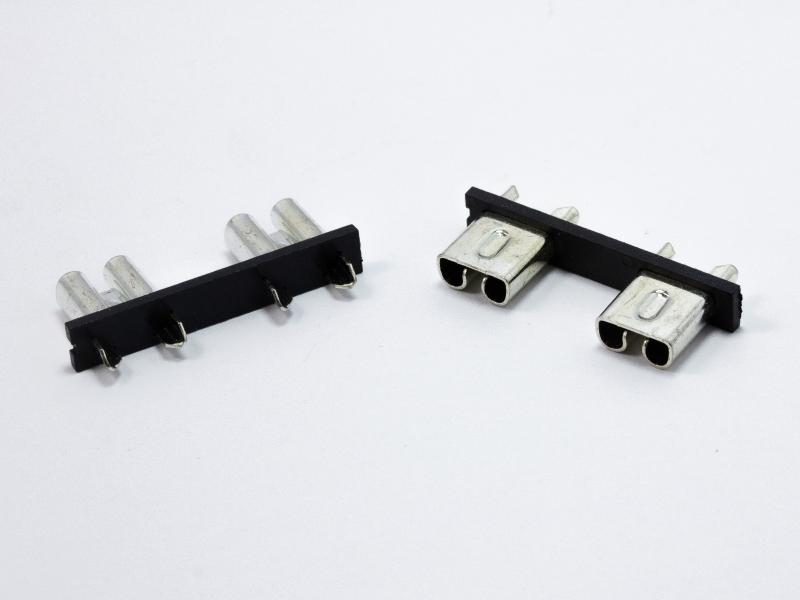

- Economical method to mount Maxi style blade fuses on a printed circuit board (PCB).
- With tin-plated mounting pins for easy soldering and a plastic base that holds the fuse securely, even after multiple insertions.
- The base material is a phosphor-bronze and the plating is bright tin, with a voltage rating up to 250VDC and 500VAC and a current rating up to 80A.
Dimensions and 3D view
Dimensions
Length1.41
Height0.58
Width0.23
UnitInch
What is 3D CAD?
A 3D CAD (.STP) file ready to integrate into your project. Download and use it in your design software to streamline your workflow.
Custom solutions
Dimensions and 3D view
Custom solutions
Dimensions
Length1.41
Height0.58
Width0.23
UnitInch
What is 3D CAD?
A 3D CAD (.STP) file ready to integrate into your project. Download and use it in your design software to streamline your workflow.
