Key Specifications and Ratings
Recommended with LED indicator fusesWater resistant cap (IP 66)Various wire gauge, length and colors available
Voltage Rating58VDC
Current Rating10A to 30A
Wire Gauge#12 - #18AWG
Wire ColorsRed
Wire Length4 Inches
Features and Application

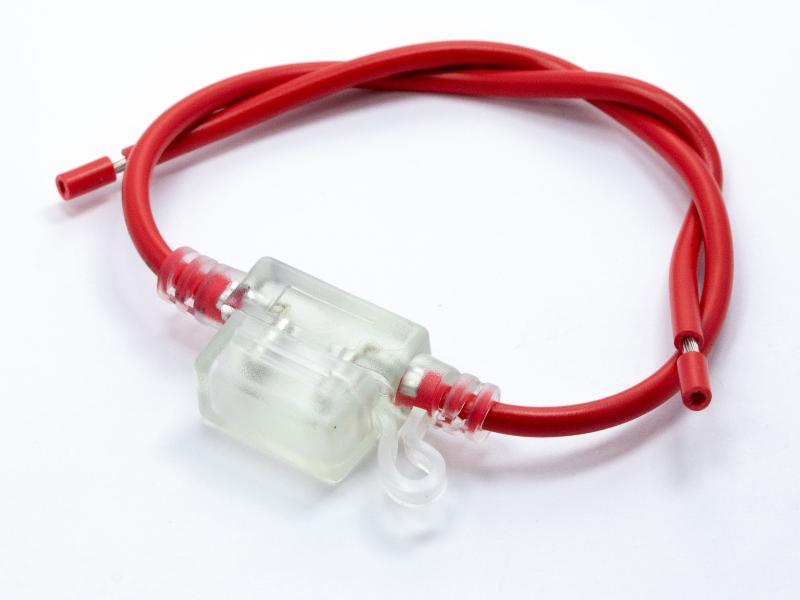

- In-line fuse holder designed to help save space in vehicle electrical systems, with a clear body that pairs well with ANS-I indicating fuses to conveniently pinpoint when a fuse needs replacement.

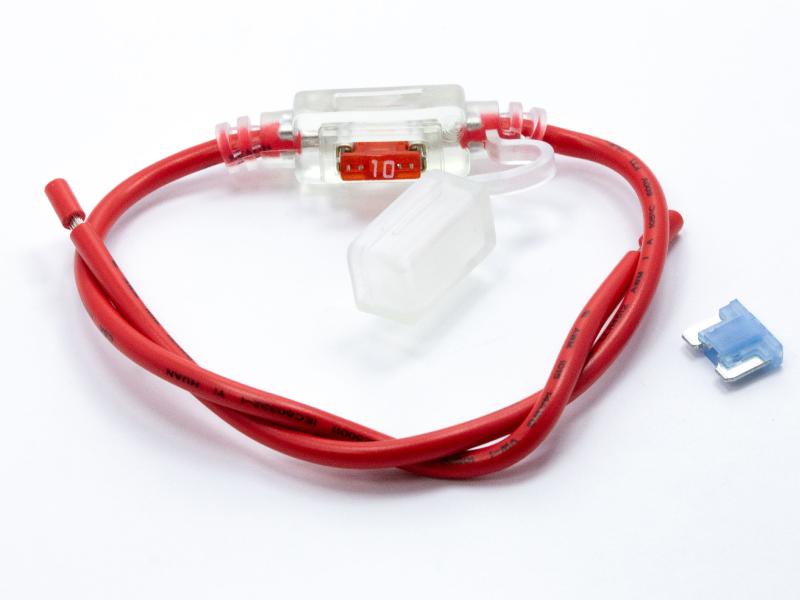

- Features an integrated snap-on cover that helps protect the fuse from water, dust, and other airborne pollutants, with an IP66 rating that makes it ideal for both automotive and marine applications.
- Compatible with 32V and 58V Mini - Low Profile blade style fuses, this holder can safely handle up to 30A, depending on the wire gauge.
Dimensions and 3D view
Dimensions
Length1.77
Height0.43
Width0.9
UnitInch
What is 3D CAD?
A 3D CAD (.STP) file ready to integrate into your project. Download and use it in your design software to streamline your workflow.
Custom solutions
Dimensions and 3D view
Custom solutions
Dimensions
Length1.77
Height0.43
Width0.9
UnitInch
What is 3D CAD?
A 3D CAD (.STP) file ready to integrate into your project. Download and use it in your design software to streamline your workflow.
