Key Specifications and Ratings
Water resistant cap (IP 67)Recommended with LED indicator fusesBracket to gang multiple holders together
Voltage Rating125VDC
Current Rating15A to 20A
Wire Gauge#14 - #16AWG
Wire ColorsRed
Wire Length4 Inches
Features and Application

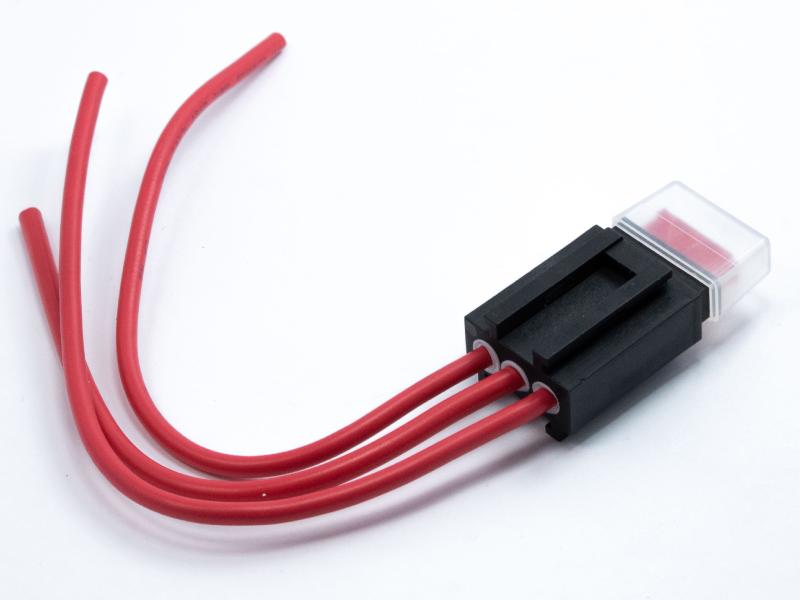

- In-line fuse holder that is IP67 rated for waterproofing and is designed to save space in electrical systems of trailers and marine applications where water infiltration is a problem.
- Built with a clear cover that enables the use of ANK-I indicating fuses that conveniently pinpoint an open fuse that needs replacement.
- Compatible with 32V and 58V DC MICRO3 style blade fuses, with 16 AWG leads that are compatible with fuses up to 15A or 14 AWG leads that accept fuses up to 20A.

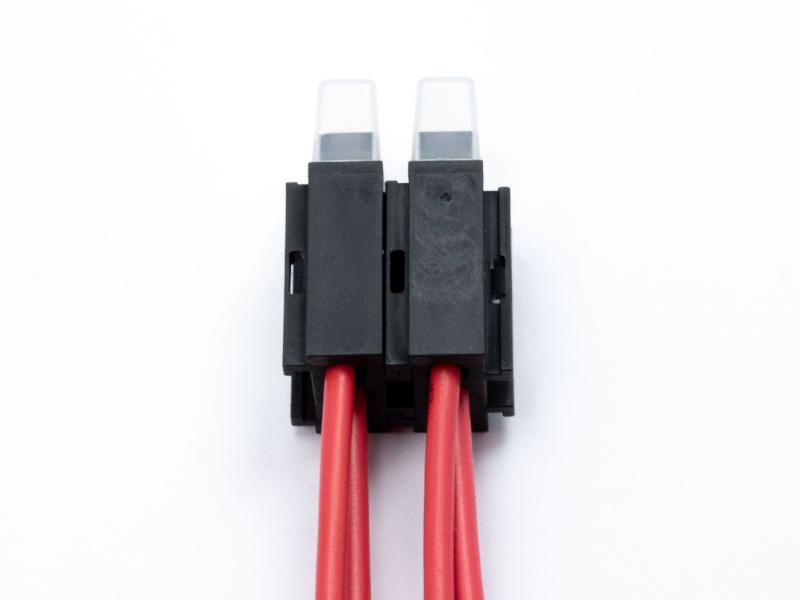

- The housing features an attached bracket to gang multiple fuse holders together.
Dimensions and 3D view
Dimensions
Length0.84
Height0.61
Width1.5
UnitInch
What is 3D CAD?
A 3D CAD (.STP) file ready to integrate into your project. Download and use it in your design software to streamline your workflow.
Custom solutions
Dimensions and 3D view
Custom solutions
Dimensions
Length0.84
Height0.61
Width1.5
UnitInch
What is 3D CAD?
A 3D CAD (.STP) file ready to integrate into your project. Download and use it in your design software to streamline your workflow.
