Key Specifications and Ratings
LED blown fuse indicatorSplash-proof cap (IP X6)
Voltage Rating24VDC
Current Rating10A to 30A
Wire Gauge#12 - #18AWG
Wire ColorsRed
Wire Length4 Inches
Features and Application

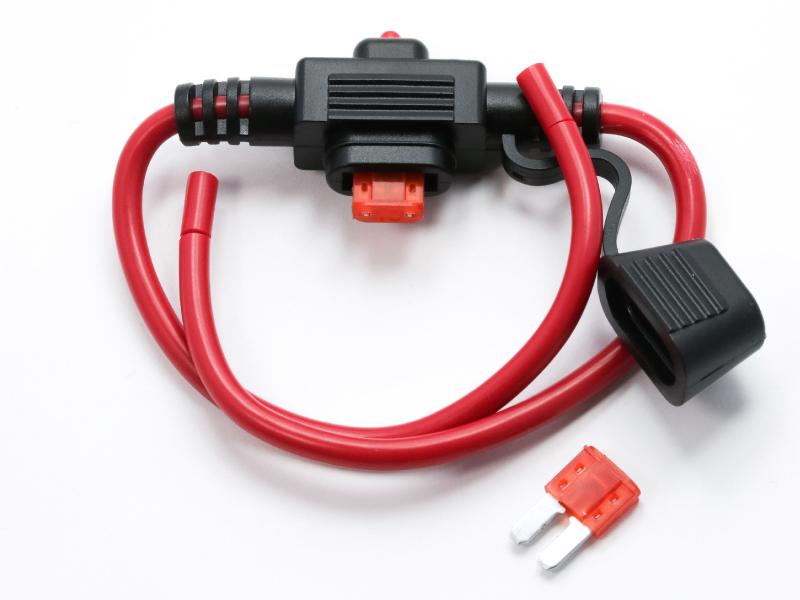

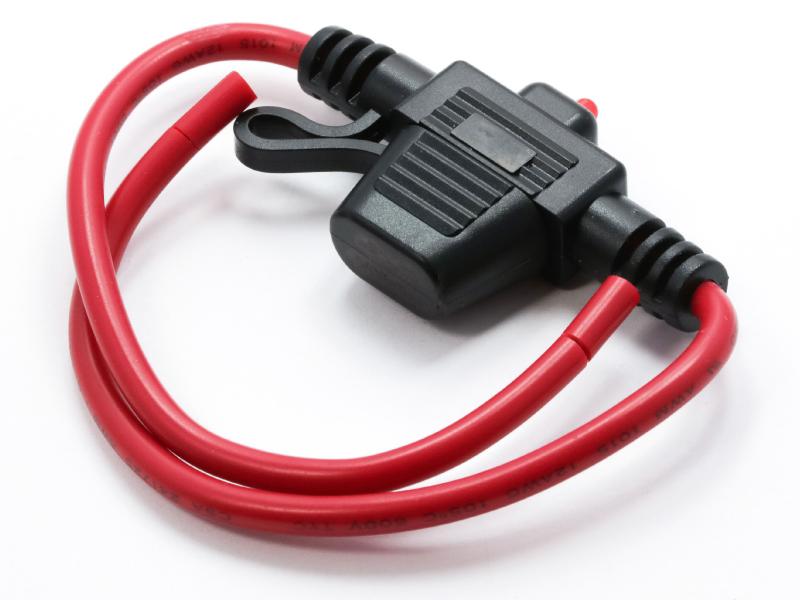

- In-line fuse holder designed to save space in vehicle electrical systems, typically used to mount individual fuses in cars, trucks, RVs, and DC-powered equipment.
- For use with applications that call for an automotive MICRO2 style blade fuse, this holder can safely handle up to 30A, depending on the wire gauge.
- With an LED light that illuminates when the fuse inside is open and needs replacement.
- Manufactured to withstand harsh environmental conditions with an integrated snap-on cover that offers splashproof protection.
Dimensions and 3D view
Dimensions
Length2.13
Height0.44
Width1.12
UnitInch
What is 3D CAD?
A 3D CAD (.STP) file ready to integrate into your project. Download and use it in your design software to streamline your workflow.
Custom solutions
Dimensions and 3D view
Custom solutions
Dimensions
Length2.13
Height0.44
Width1.12
UnitInch
What is 3D CAD?
A 3D CAD (.STP) file ready to integrate into your project. Download and use it in your design software to streamline your workflow.
