Key Specifications and Ratings
Upgradable with clear, insulating coverDesigned for heavy duty loadsMounting slots molded on
Voltage Rating500VAC 500VDC
Current Rating300A to 500A
Features and Application

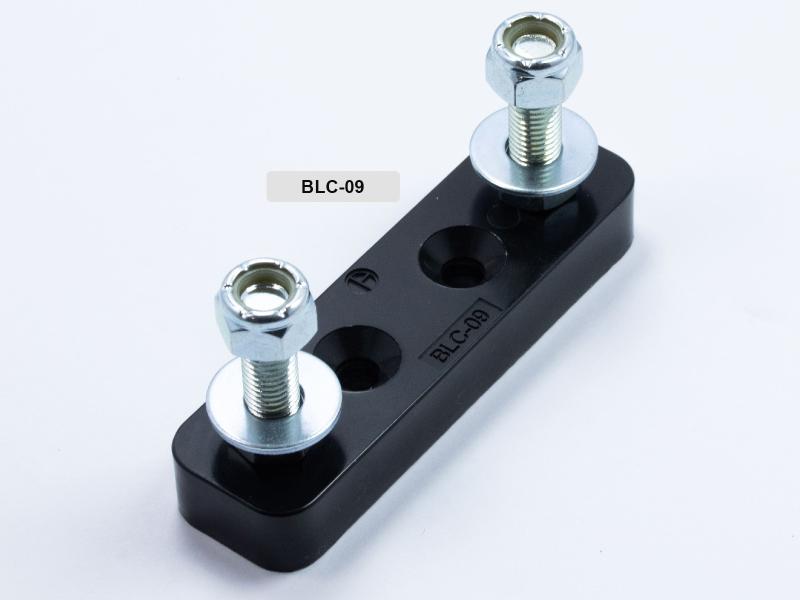

- This block mounts the OptiFuse ANE / ANF limiter fuses rated up to 200A or 500A, depending on the selected model, and it accepts 5/16" (M8) ring terminals.

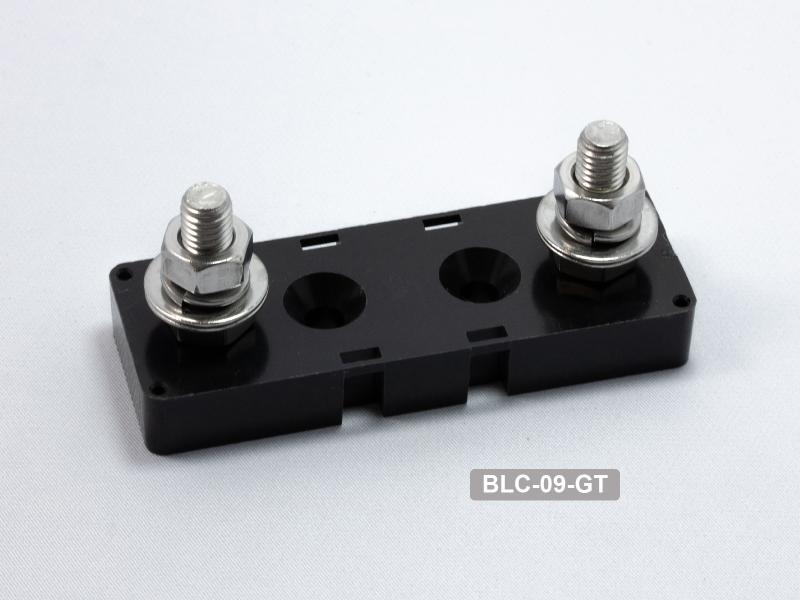

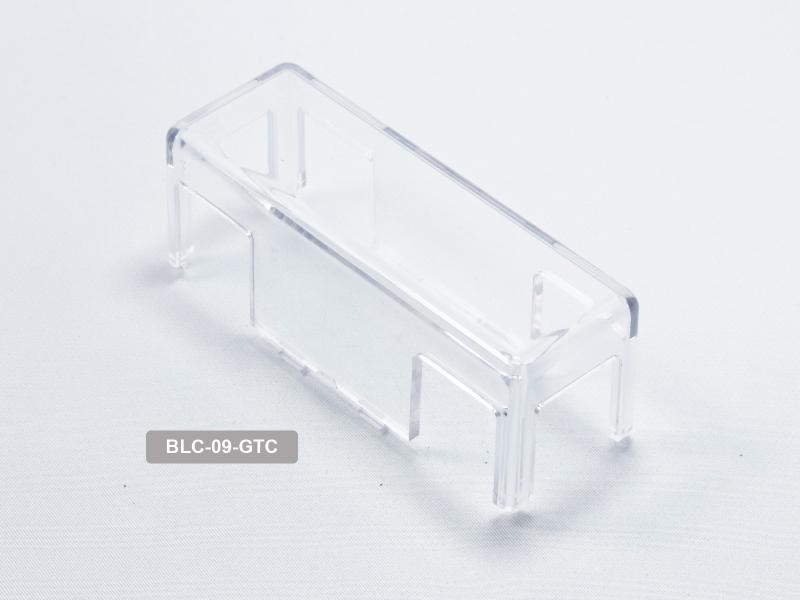

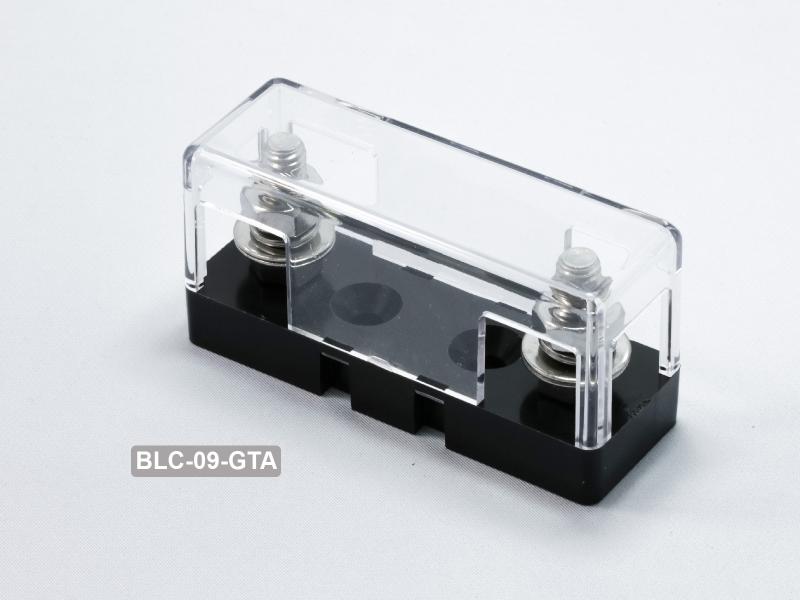

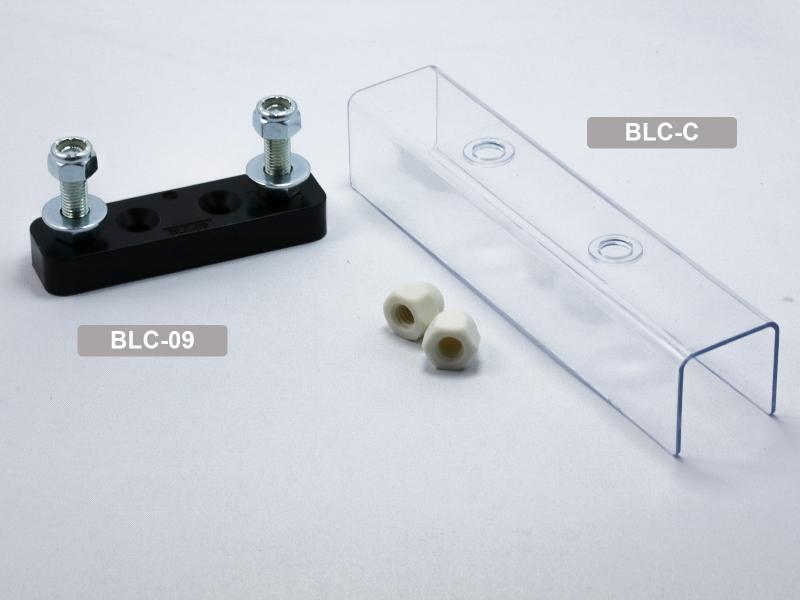

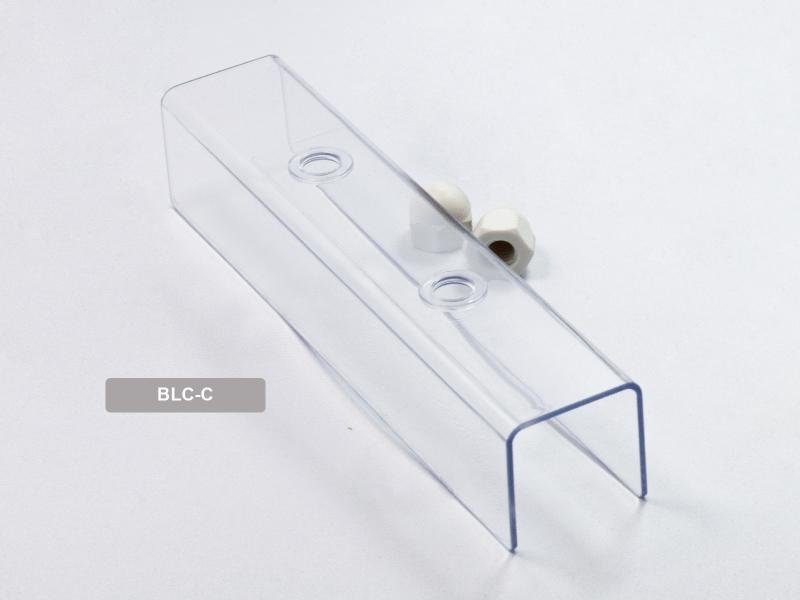

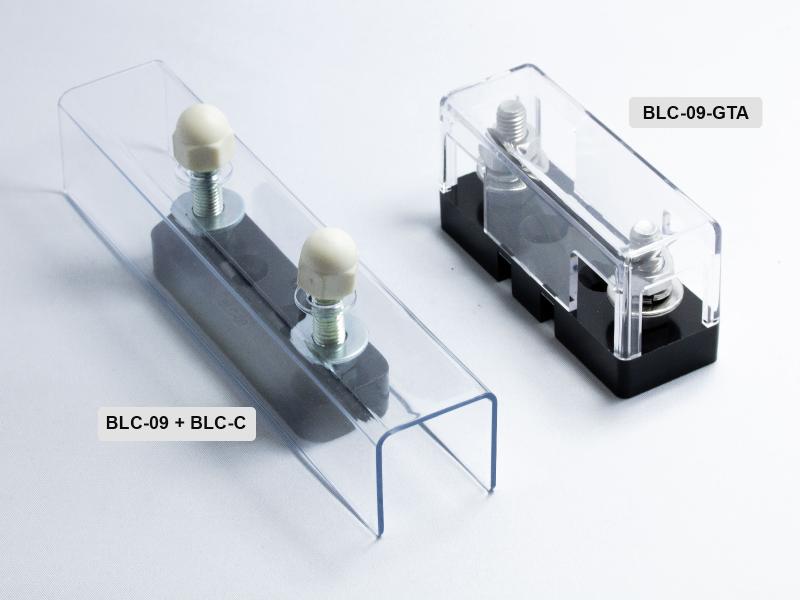

- This block is offered in two different base style configurations, and a clear plastic cover with wire access in three directions is available as an upgrade to defend against accidental short circuits.
- The block is made of quality high-temperature thermoplastic and designed for applications with heavy duty loads associated with DC battery operated equipment.
Dimensions and 3D view
Dimensions
Length3.46
Height1.52
Width1.22
UnitInch
Custom solutions
Dimensions and 3D view
Custom solutions
Dimensions
Length3.46
Height1.52
Width1.22
UnitInch
