Key Specifications and Ratings
1, 2, and 3 polesFinger/Touch SafeDin-Rail fuse block
Voltage Rating1000VDC
Current Rating30A
Features and Application

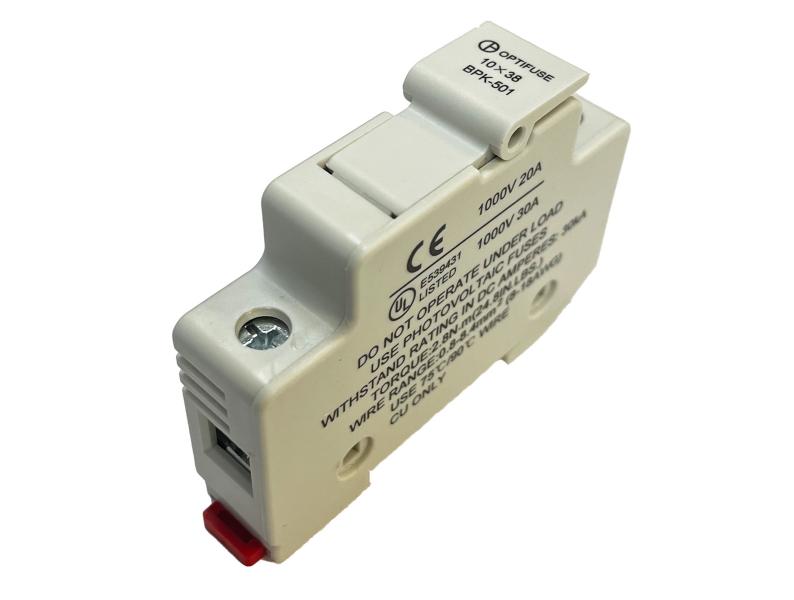

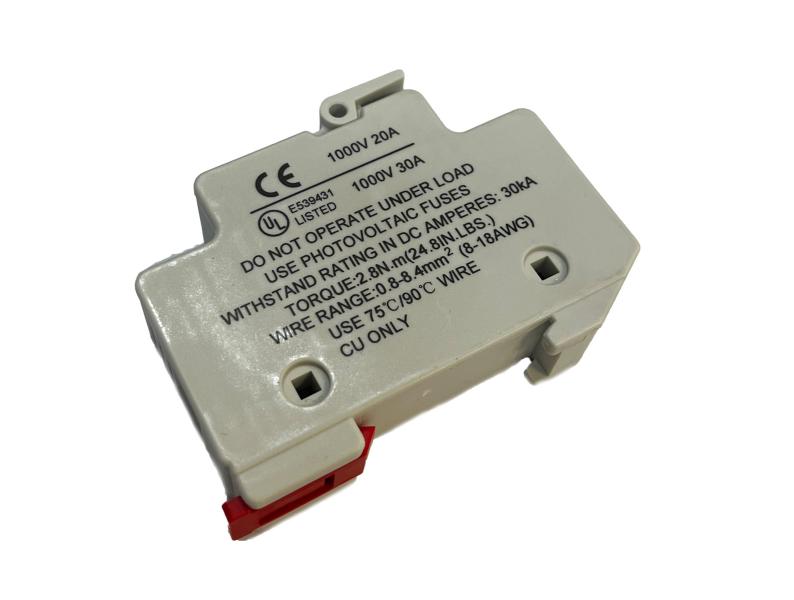

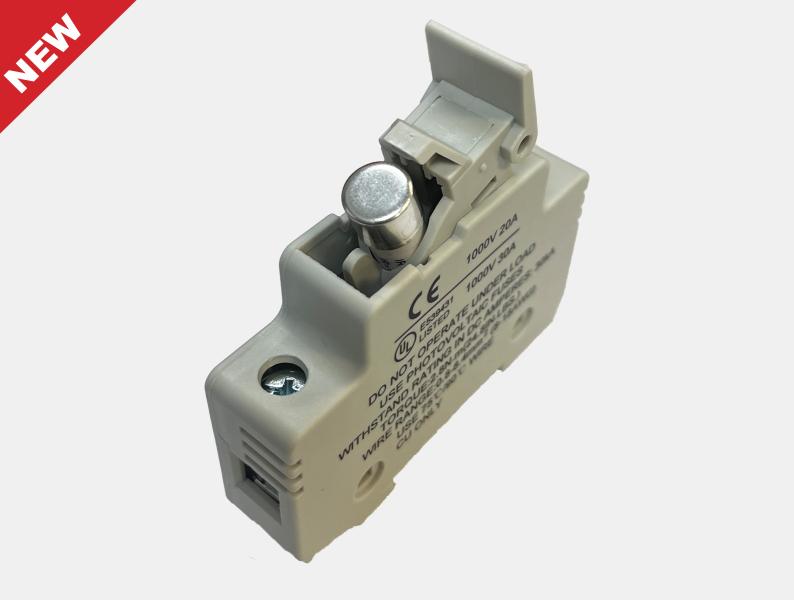

- UL Listed Din-Rail mountable fuse block designed to fit 10 x 38mm Photovoltaic fuses up to 30A. Intended for use in high voltage systems (up to 1000VDC). When used with a 10 x 38mm fuse the BPK-500 boasts a 30kA Interrupting Rating.

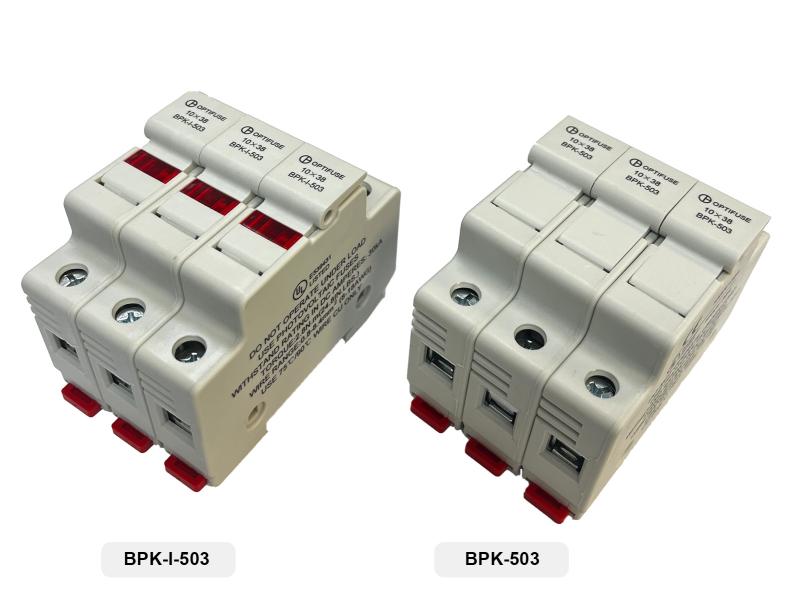

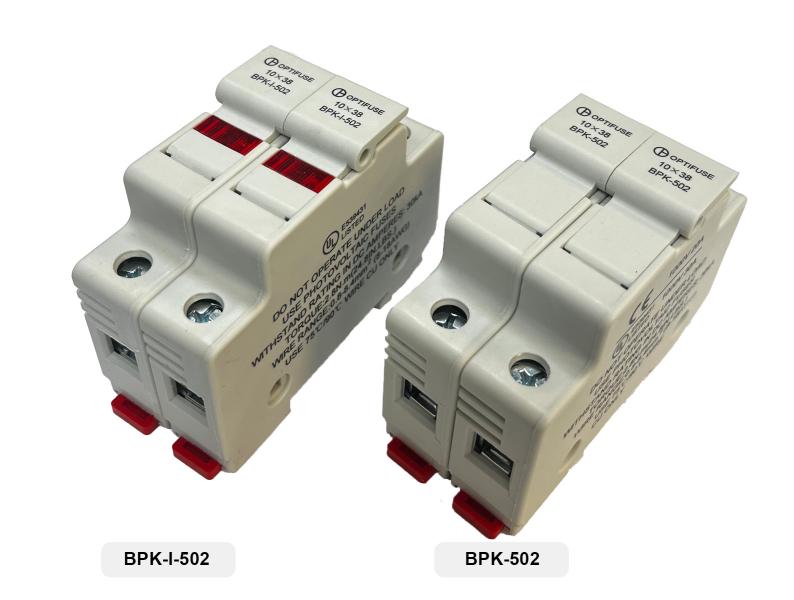

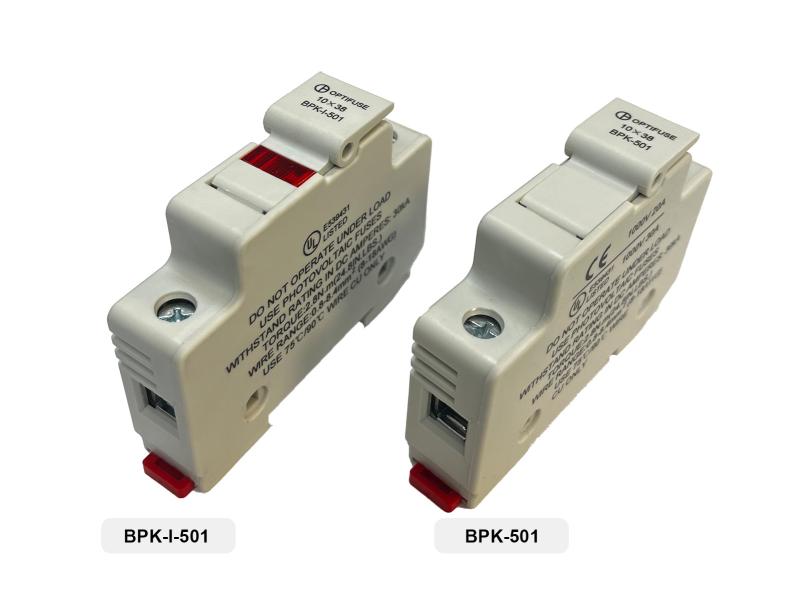

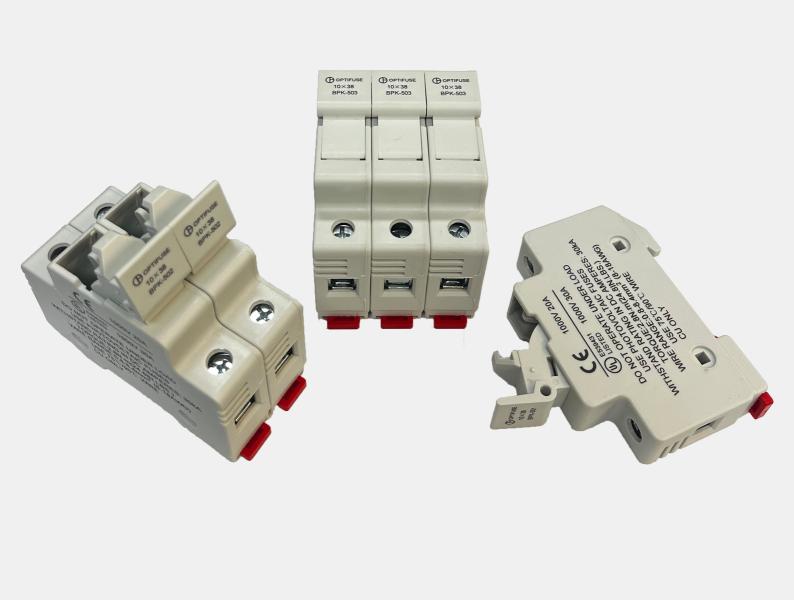

- The BPK-500 features Finger/Touch Safe protection, enabling easy fuse changes without the need for additional tools. It is available in 1, 2, and 3 poles.
UL File
Dimensions and 3D view
Dimensions
Length3.25
Height2.48
Width0.69
UnitInch
What is 3D CAD?
A 3D CAD (.STP) file ready to integrate into your project. Download and use it in your design software to streamline your workflow.
Custom solutions
Dimensions and 3D view
Custom solutions
Dimensions
Length3.25
Height2.48
Width0.69
UnitInch
What is 3D CAD?
A 3D CAD (.STP) file ready to integrate into your project. Download and use it in your design software to streamline your workflow.
