Key Specifications and Ratings
Screw or quick-connect mountingInterlocking pins to create a multi-fuse block
Voltage Rating600VAC
Current Rating30A
Features and Application
- Rated at 600VAC, this compact fuse block is designed to fit UL Class CC fuses up to 30A in high-voltage systems (up to 600 VAC/VDC). When used with a Class CC fuse, the BPK-R-100 supports an interrupting rating up to 200 kA (10 kA when using quick-connect terminals).
- With screw terminals, it also provides mounting flexibility and accommodates mounted quick-connect terminals. It comes with spring clips that hold fuses securely but allow for quick fuse replacement.

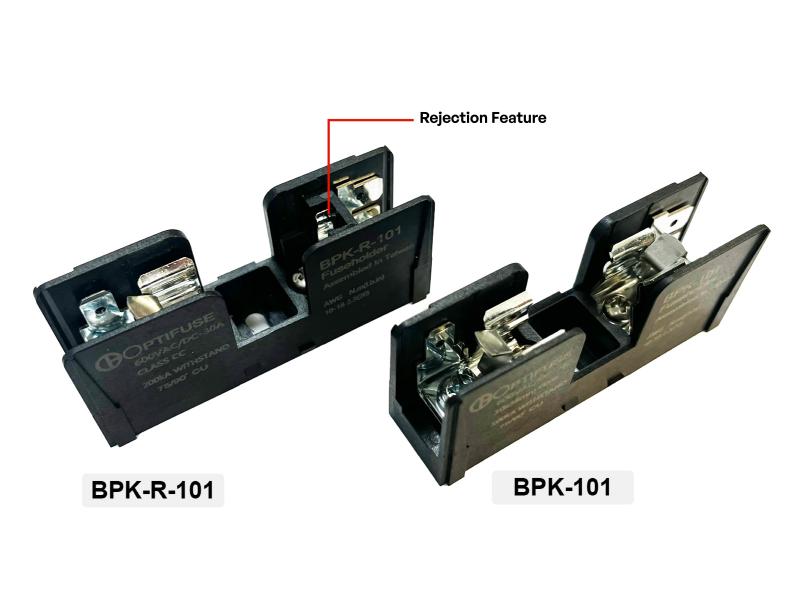

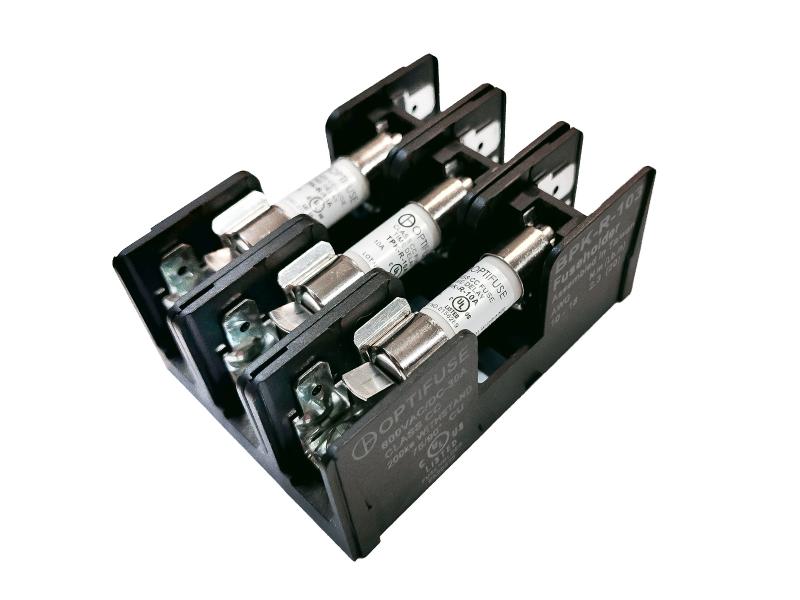

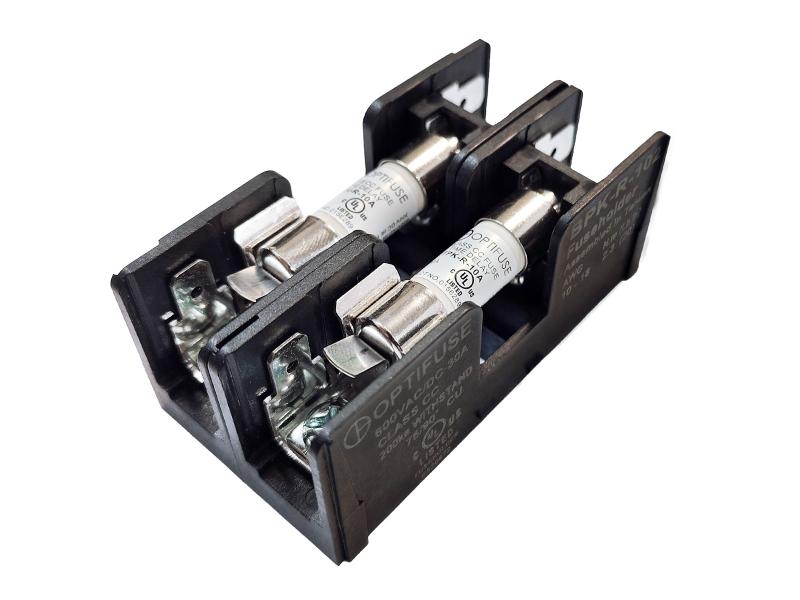

- BPK-R-100 is available in 1, 2, and 3 poles.
UL File
Dimensions and 3D view
Dimensions
Length3
Height1.26
Width1
UnitInch
What is 3D CAD?
A 3D CAD (.STP) file ready to integrate into your project. Download and use it in your design software to streamline your workflow.
Custom solutions
Dimensions and 3D view
Custom solutions
Dimensions
Length3
Height1.26
Width1
UnitInch
What is 3D CAD?
A 3D CAD (.STP) file ready to integrate into your project. Download and use it in your design software to streamline your workflow.
Accessories and Mounting Devices
Use it with
