Key Specifications and Ratings
For power connection pointsModular designStainless steel
Voltage Rating-
Current Rating-
Features and Application

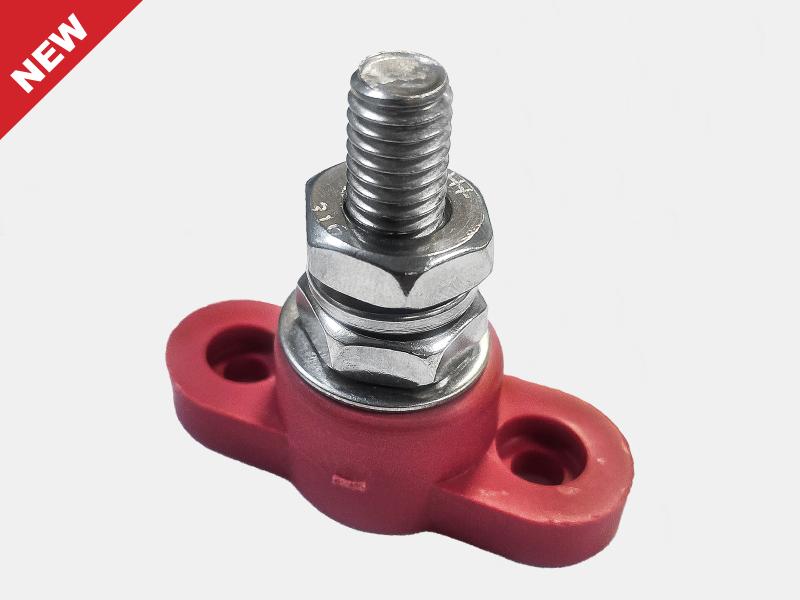

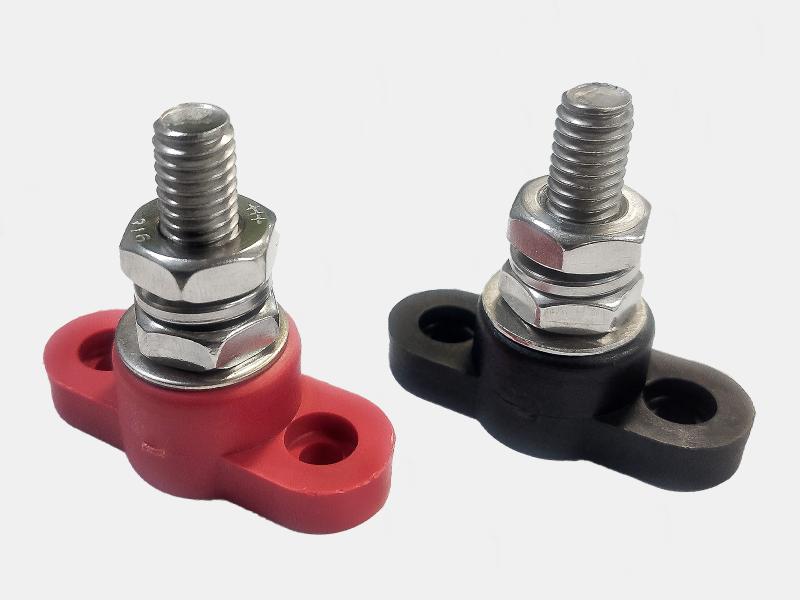

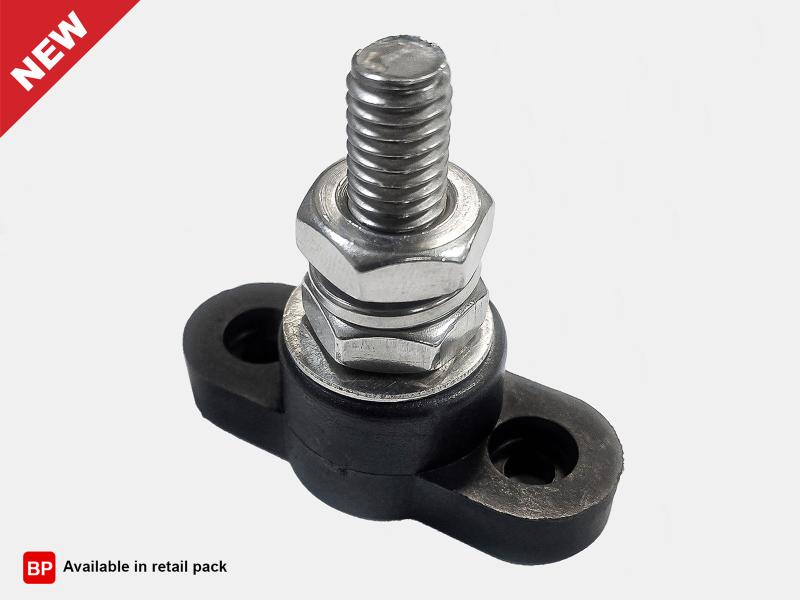

- The JP1 series is a stainless steel, non-feed-through junction post designed for heavy-duty ground or power connections in AC and DC circuits.
- It is red color-coded for easy identification of power connection points. Its modular construction provides design and manufacturing flexibility.
- An isolated base prevents leakage to metal hulls, ensuring safe and reliable installation.
Dimensions and 3D view
Dimensions
Length2.08
Height1.9
Width0.97
UnitInch
What is 3D CAD?
A 3D CAD (.STP) file ready to integrate into your project. Download and use it in your design software to streamline your workflow.
Custom solutions
Dimensions and 3D view
Custom solutions
Dimensions
Length2.08
Height1.9
Width0.97
UnitInch
What is 3D CAD?
A 3D CAD (.STP) file ready to integrate into your project. Download and use it in your design software to streamline your workflow.
