Key Specifications and Ratings

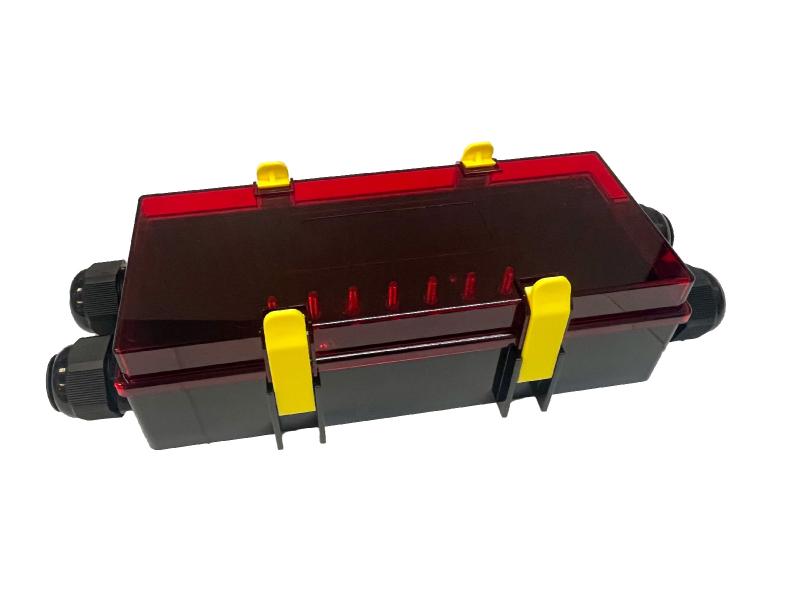

7 stud terminalsSolid plastic constructionRemovable translucent cover
Voltage Rating125VAC 125VDC
Current Rating30A
Features and Application

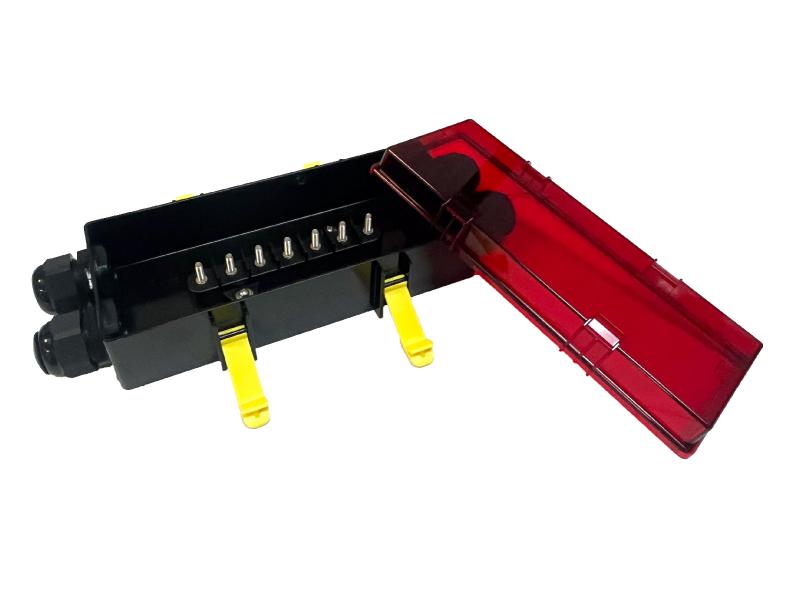

- TJB-7P allows to securely connect the 7-primary trailer electrical wires. It contains 7 stud terminals and 4 self-sealing cable entry ports to allow wire in and out and protect connections.
- Designed to provide a fully IPX5 weatherproof connection area for trailer or outdoor electrics.
- The rugged plastic housing and cover offer protection against short circuits, as well as from dirt, dust, and splashes.
Dimensions and 3D view
Dimensions
Length12.17
Height3
Width4.49
UnitInch
What is 3D CAD?
A 3D CAD (.STP) file ready to integrate into your project. Download and use it in your design software to streamline your workflow.
Custom solutions
Dimensions and 3D view
Custom solutions
Dimensions
Length12.17
Height3
Width4.49
UnitInch
What is 3D CAD?
A 3D CAD (.STP) file ready to integrate into your project. Download and use it in your design software to streamline your workflow.
