Key Specifications and Ratings

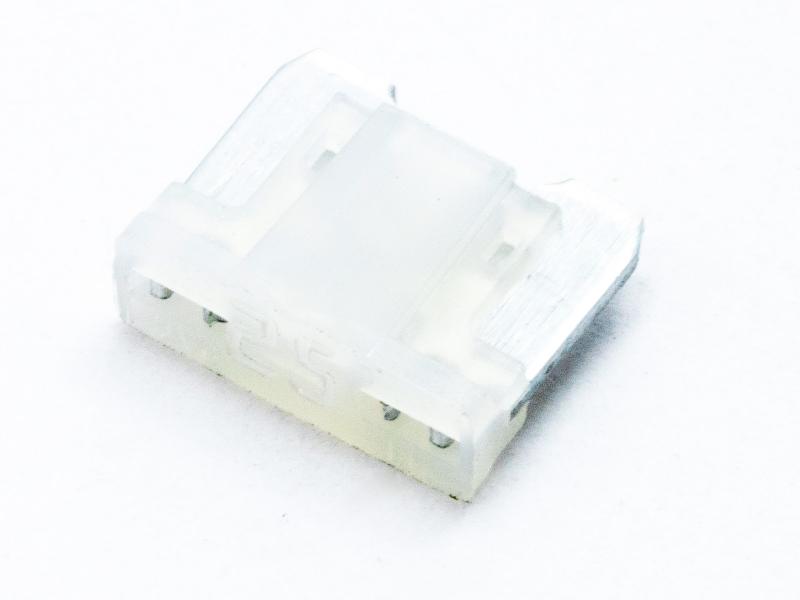

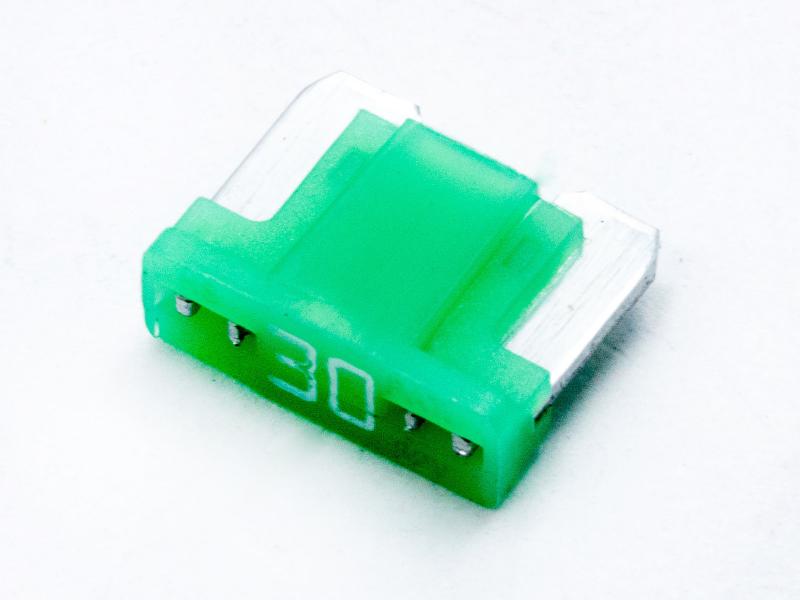

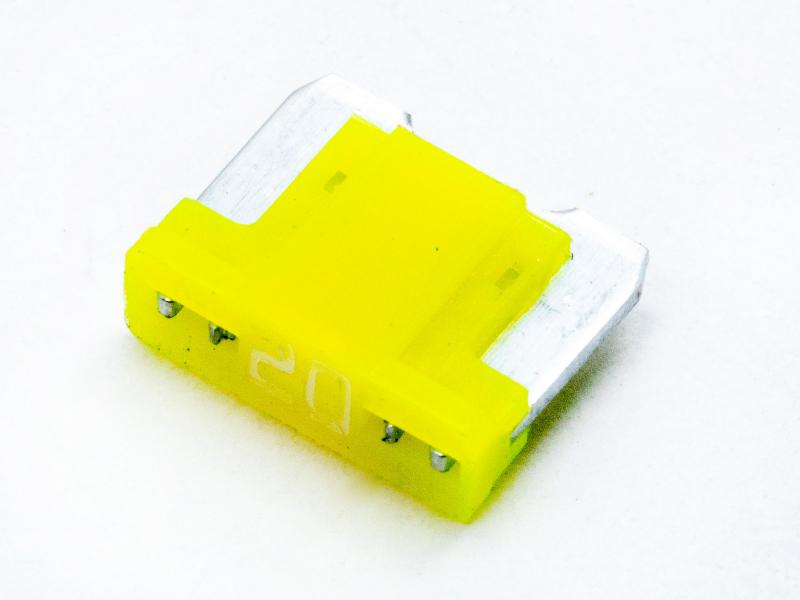

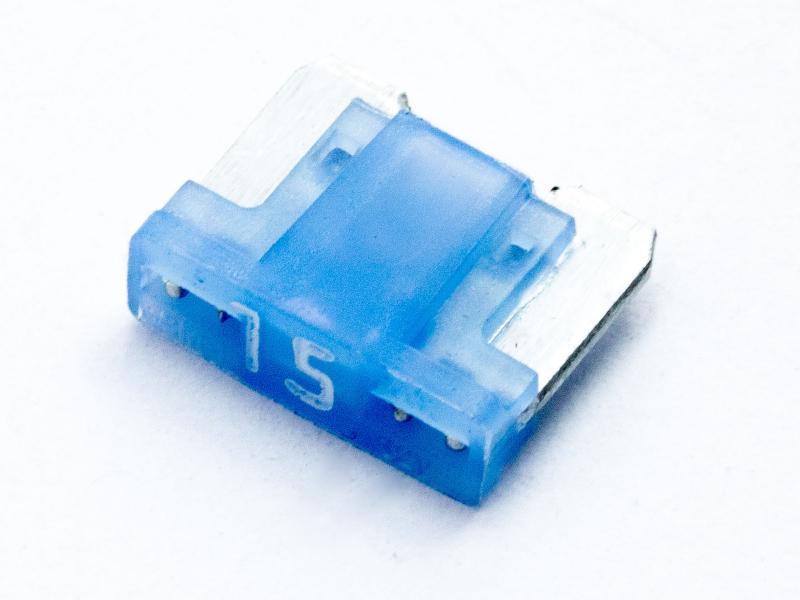

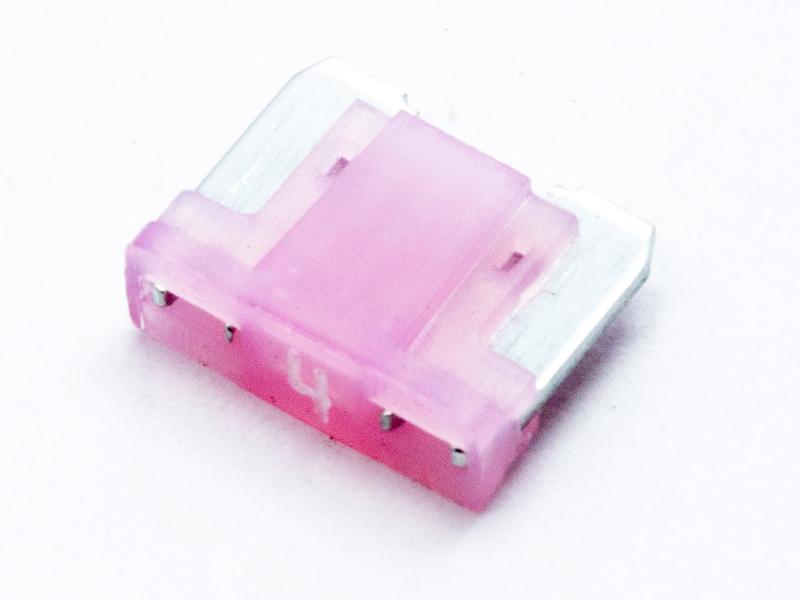

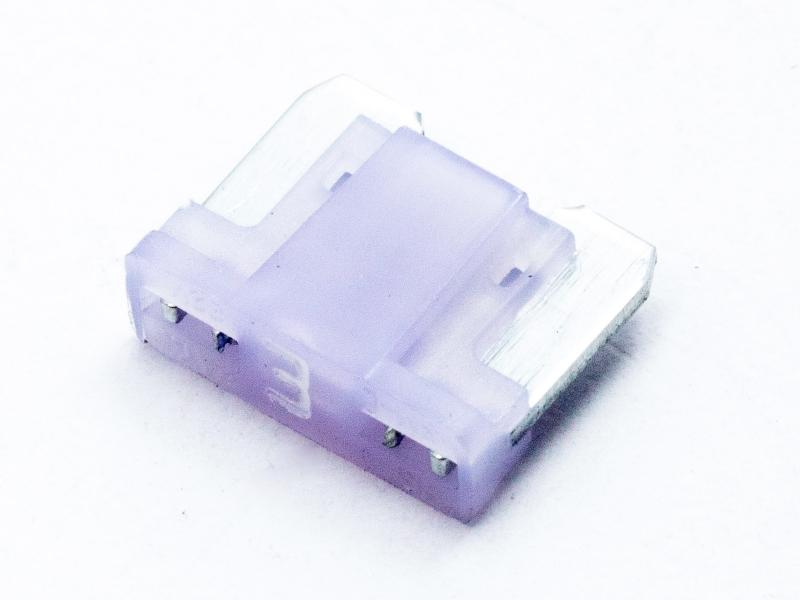

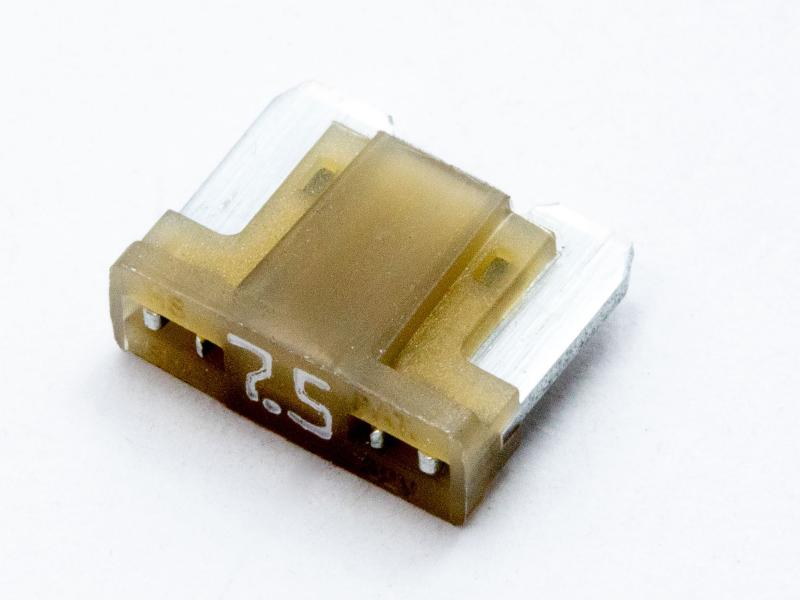

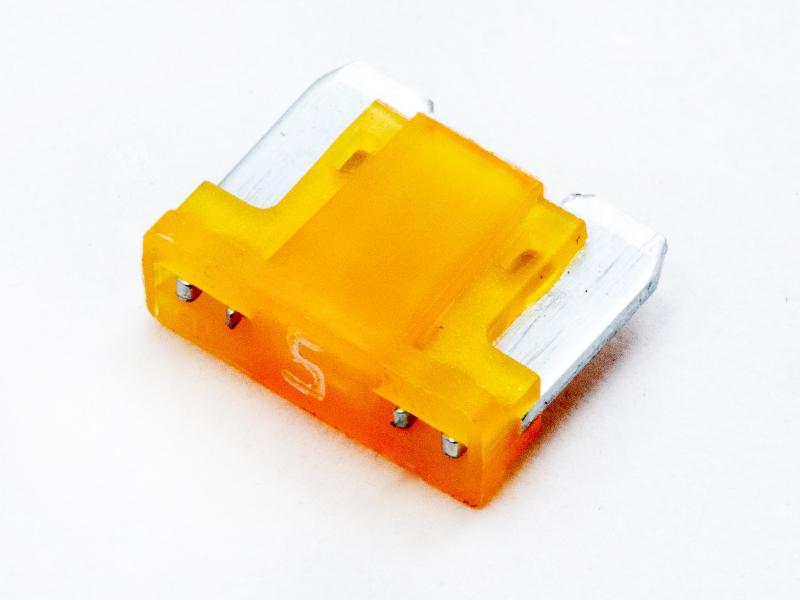

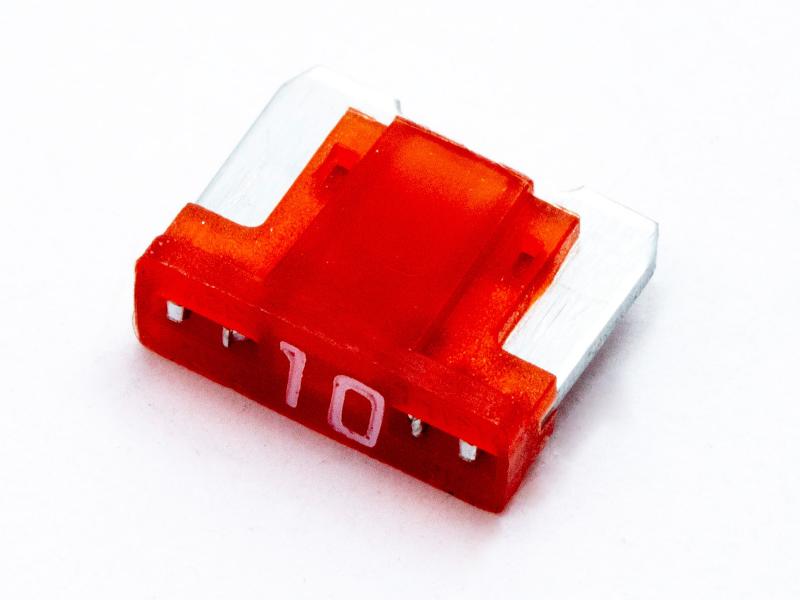

Mini style - Low ProfileColor coded to amp ratingsNylon housingRetail Pack Quantity: 5PCS / Value Pack Quantity: 25PCS / Box Quantity: 5PCS
Voltage Rating32VDC
Current Rating3A to 30A
Interrupt Rating 1000A DC
Features and Application
- With the same housing height and width as our Mini style blade fuses, this fuse is engineered to save more space and weight by utilizing blade terminals that do not extend the length of the plastic housing body.

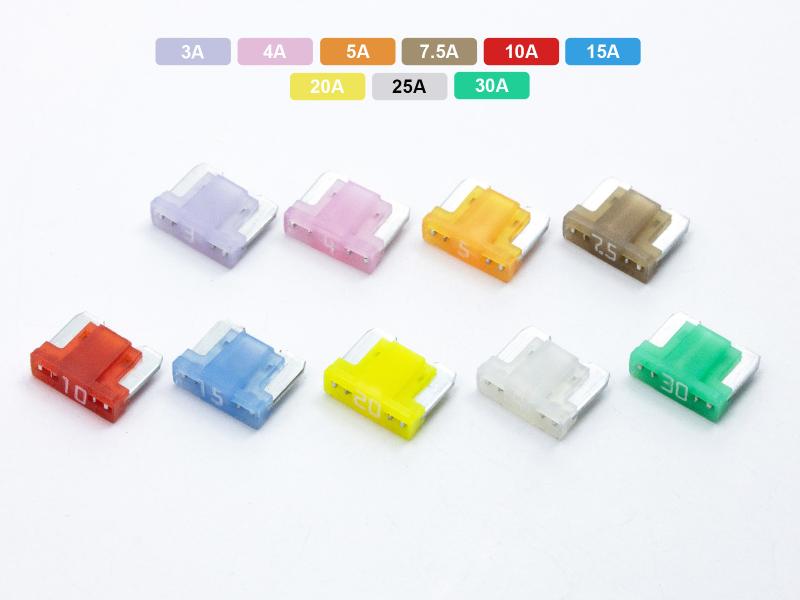

- Designed with industry-standard color coding for easy amperage identification.

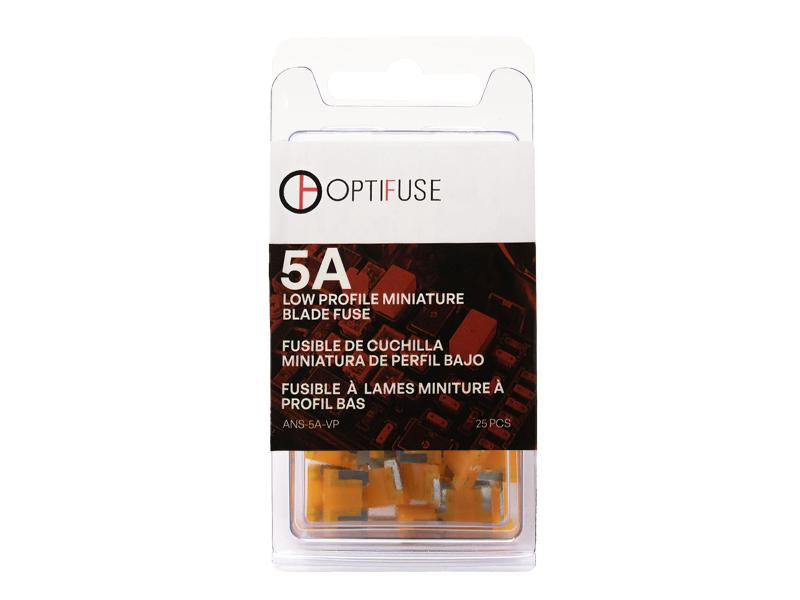

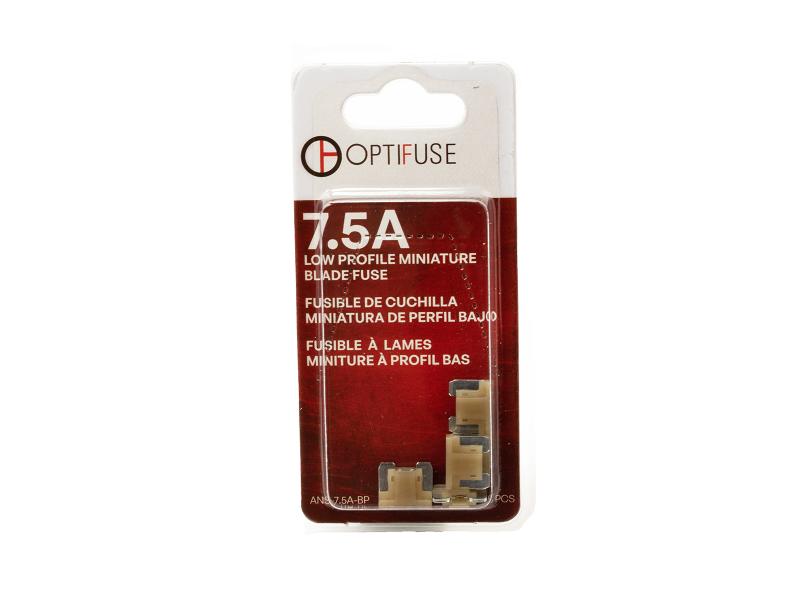

- NEW: Select products are available in attractive retail packaging including blister & clamshell packs and convenient multi amperage assortment packs.
Dimensions and 3D view
Dimensions
Length0.43
Height0.34
Width0.15
UnitInch
What is 3D CAD?
A 3D CAD (.STP) file ready to integrate into your project. Download and use it in your design software to streamline your workflow.
