Key Specifications and Ratings

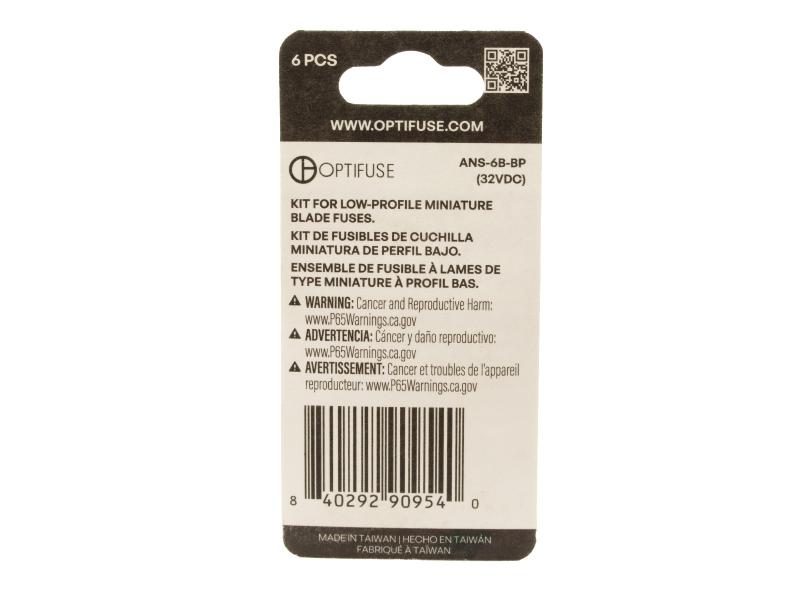

Mini style - Low Profile6 piece assortment packIncludes (7.5, 10, 15, 20, 25, 30) amp fusesAssortment Pack Quantity: 6PCS
Voltage Rating32VDC
Current Rating7.5A to 30A
Interrupt Rating 1000A DC
Features and Application
- Assortment pack includes the most popular Low Profile Mini style blade fuses in a convenient retail package.
- With the same housing height and width as our Mini style blade fuses, this fuse is engineered to save more space and weight by utilizing blade terminals that do not extend the length of the plastic housing body.
- Designed with industry-standard color coding for easy amperage identification.
Dimensions and 3D view
Dimensions
Length1.79
Height3.73
Width0.7
UnitInch
What is 3D CAD?
A 3D CAD (.STP) file ready to integrate into your project. Download and use it in your design software to streamline your workflow.
Custom solutions
Dimensions and 3D view
Custom solutions
Dimensions
Length1.79
Height3.73
Width0.7
UnitInch
What is 3D CAD?
A 3D CAD (.STP) file ready to integrate into your project. Download and use it in your design software to streamline your workflow.
