Key Specifications and Ratings

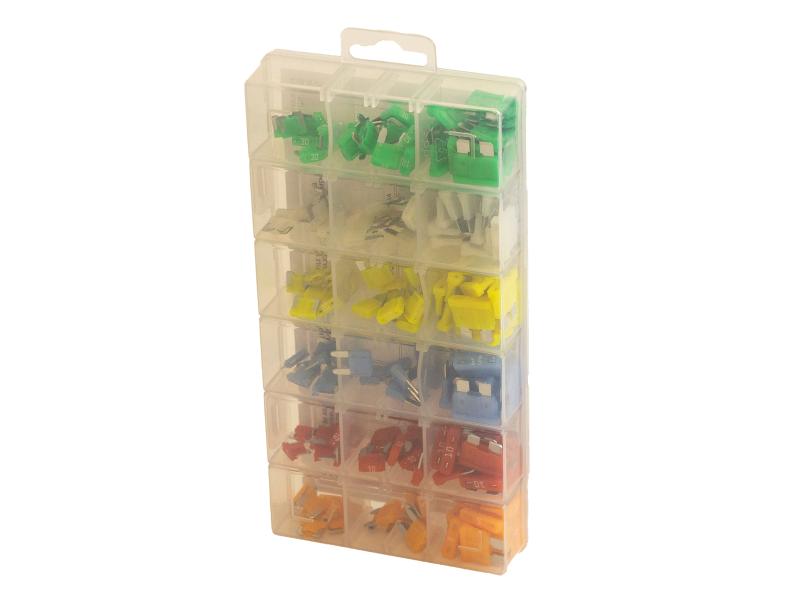

Regular (ATO/ATC style), Mini style & Low Profile180 piece assortment kitIncludes (5, 10, 15, 20, 25, 30) amp fusesAssortment Kit Quantity: 180PCS
Voltage Rating32VDC
Current Rating5A to 30A
Interrupt Rating 1000A DC
Features and Application
- Assortment kit includes the most popular Regular (ATO/ATC style), Mini and Low Profile Mini style blade fuses in a convenient retail package.
- Includes 3 popular replacement blade style fuses.
- Designed with industry-standard color coding for easy amperage identification.
Dimensions and 3D view
Dimensions
Length4.29
Height8.88
Width1.2
UnitInch
What is 3D CAD?
A 3D CAD (.STP) file ready to integrate into your project. Download and use it in your design software to streamline your workflow.
Custom solutions
Dimensions and 3D view
Custom solutions
Dimensions
Length4.29
Height8.88
Width1.2
UnitInch
What is 3D CAD?
A 3D CAD (.STP) file ready to integrate into your project. Download and use it in your design software to streamline your workflow.
