Key Specifications and Ratings
Automatic resetHorizontal mounting bracketMarine rated
Voltage Rating24VDC
Current Rating5A to 50A
Interrupt Rating 200A DC
Features and Application
- Time-saving and cost-effective solution to protect auxiliary circuits in RVs, marine craft, emergency vehicles and heavy-duty trucks.

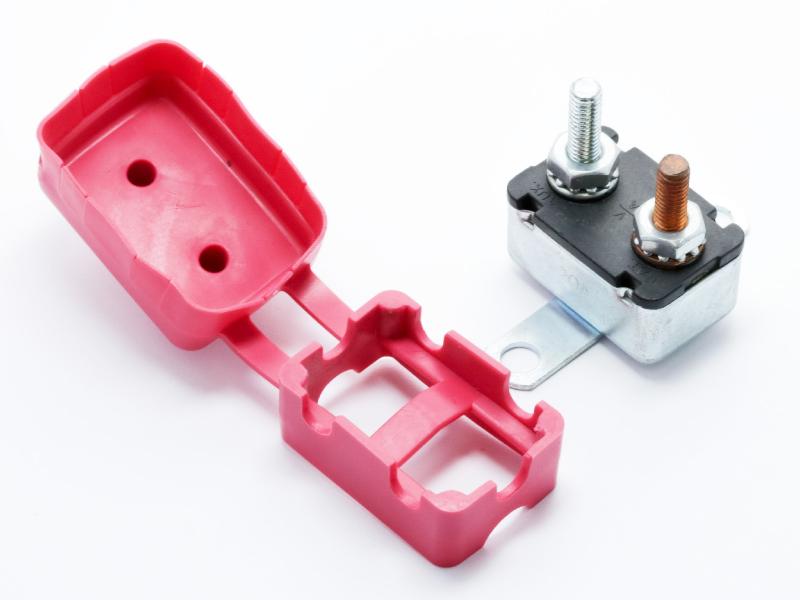

- Conforms to SAE J553 standard for circuit breaker performance and can be protected with a sealing cover, which offers defense against short circuits, dirt, dust, and splashes of water.
- Ignition rated and SAE J1171 compliant for use in marine engine compartments.
- Built with a durable steel body and a mounting bracket welded onto the circuit breaker for convenient mounting when installed individually.
Dimensions and 3D view
Dimensions
Length2
Height1.3
Width0.8
UnitInch
What is 3D CAD?
A 3D CAD (.STP) file ready to integrate into your project. Download and use it in your design software to streamline your workflow.
Custom solutions
Dimensions and 3D view
Custom solutions
Dimensions
Length2
Height1.3
Width0.8
UnitInch
What is 3D CAD?
A 3D CAD (.STP) file ready to integrate into your project. Download and use it in your design software to streamline your workflow.
