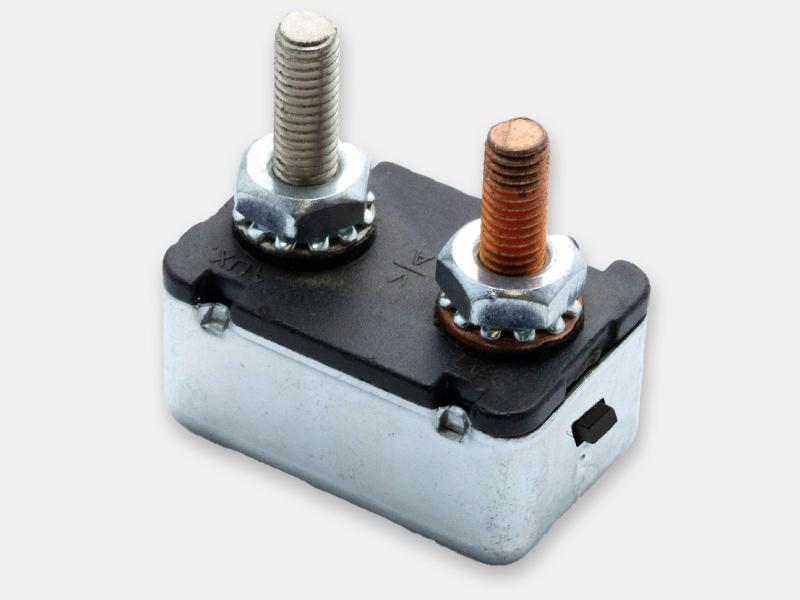

MRCB-N 12/24VDC Manual Reset No-Bracket Breaker for Industrial Circuits
Disclaimer Notice
MRCB-N 12/24VDC Manual Reset No-Bracket Breaker for Industrial Circuits
Disclaimer Notice
Shortstop - Manual Reset - No Bracket
Contact Sales
Find a DistributorKey Specifications and Ratings
Manual resetNo mounting bracketMarine rated
Voltage Rating32VDC
Current Rating5A to 50A
Interrupt Rating 200A DC
Features and Application
- Time-saving and cost-effective solution to protect auxiliary circuits in RVs, marine craft, emergency vehicles and heavy-duty trucks up to 32VDC.

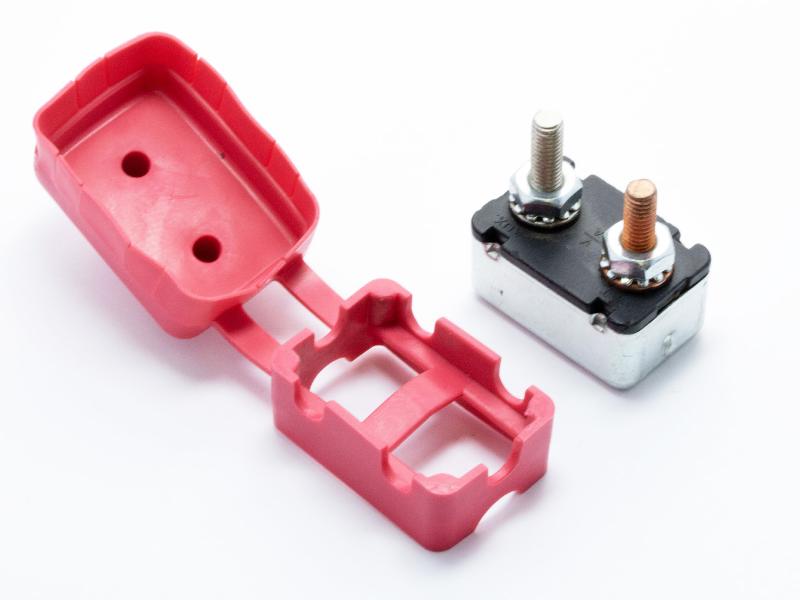

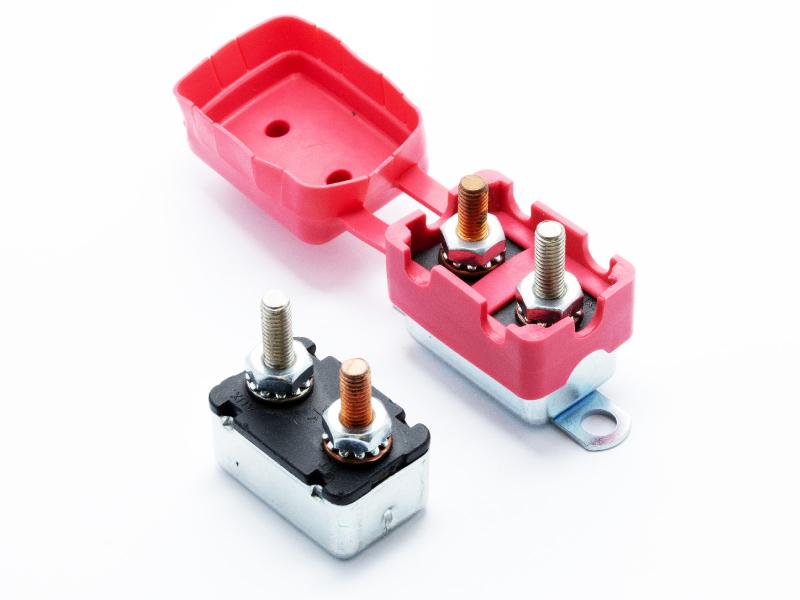

- Conforms to SAE J553 standard for circuit breaker performance and can be protected with a sealing cover, which offers defense against short circuits, dirt, dust, and splashes of water.
- Ignition rated and SAE J1171 compliant for use in marine engine compartments.
- Built with a durable steel body and #10-32 threaded termination style.
Dimensions and 3D view
Dimensions
Length1.25
Height1.33
Width0.81
UnitInch
Custom solutions
Dimensions and 3D view
Custom solutions
Dimensions
Length1.25
Height1.33
Width0.81
UnitInch
