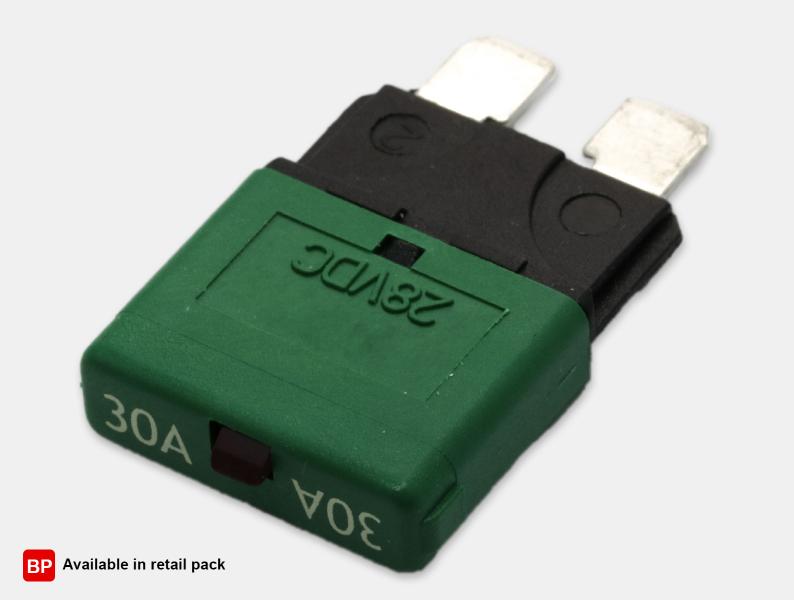

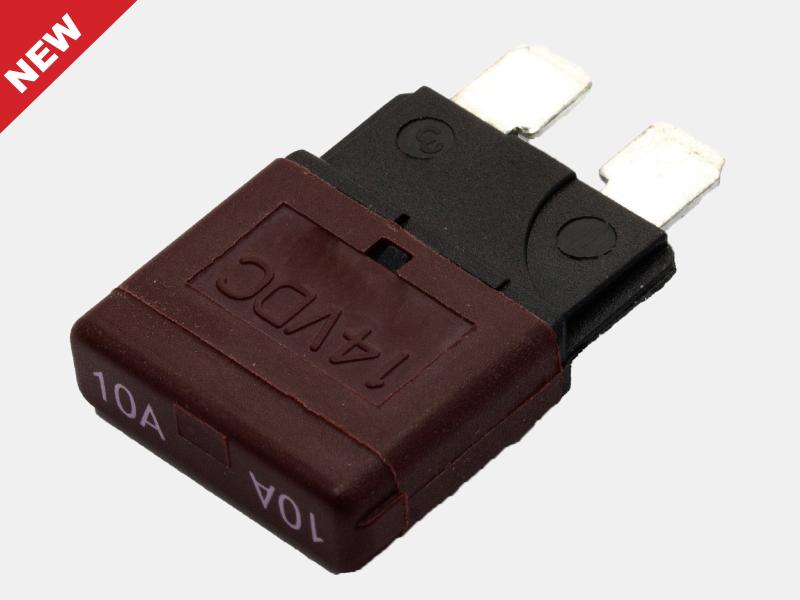

Key Specifications and Ratings
Modified resetColor coded to amp ratingsVersatile ATO/ATC style footprint
Voltage Rating14VDC
Current Rating5A to 30A
Interrupt Rating 450A DC
Features and Application
- Recommended for most commercial applications where downtime can be costly and resettability is needed.
- Conforms to the SAE J553 standard for circuit breaker performance and is intended to replace a Regular (ATO/ATC style) blade fuse, such as the OptiFuse APR and ANR series.

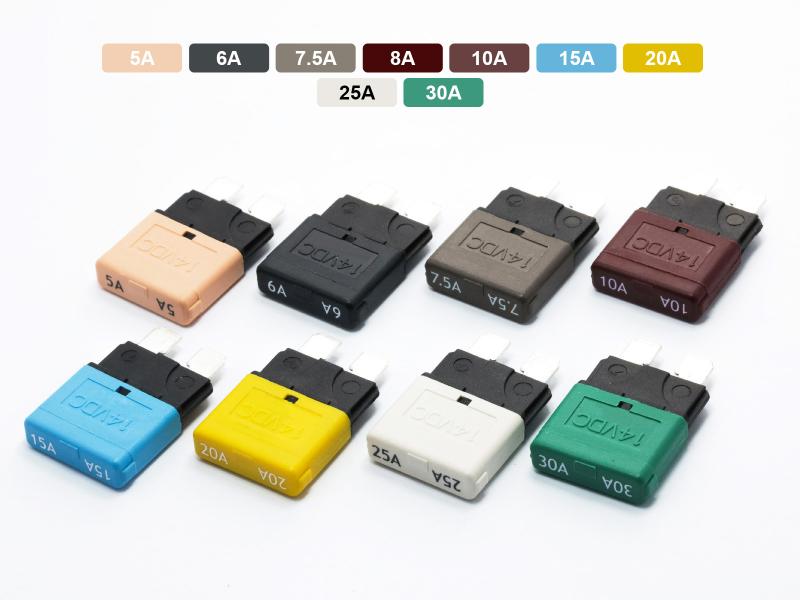

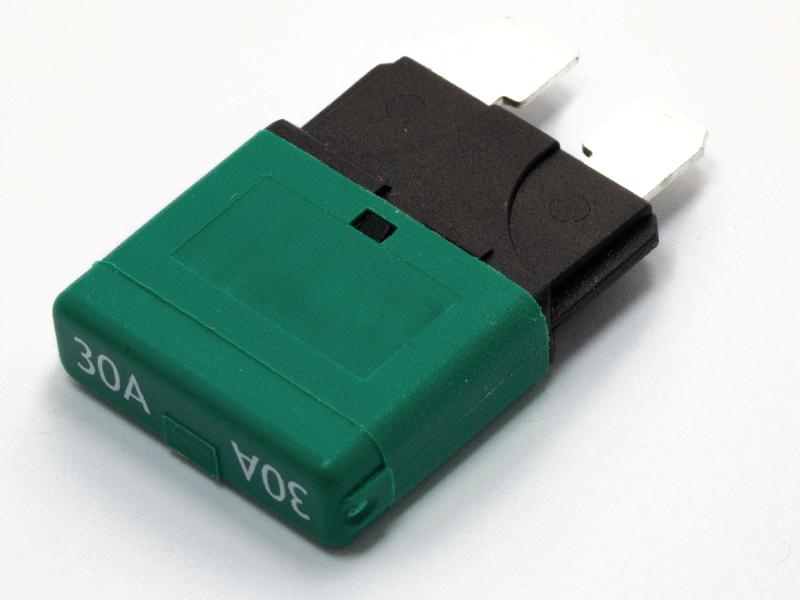

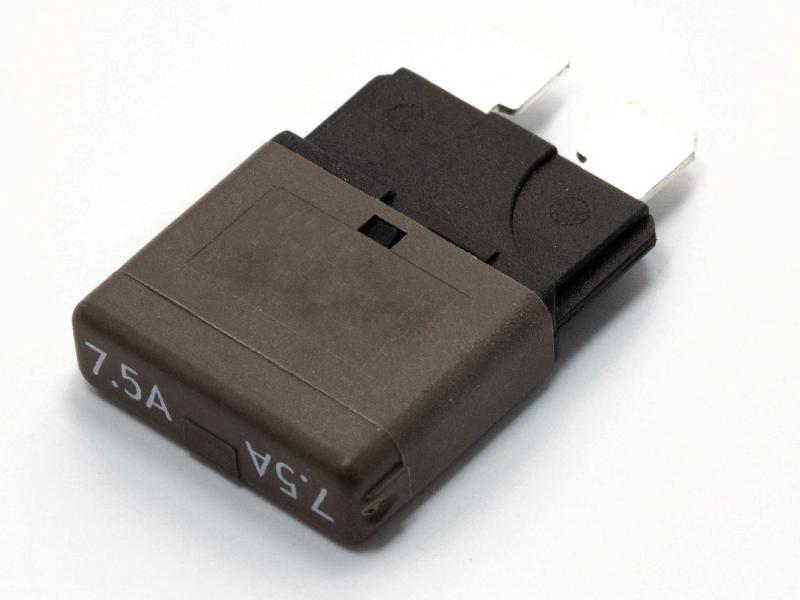

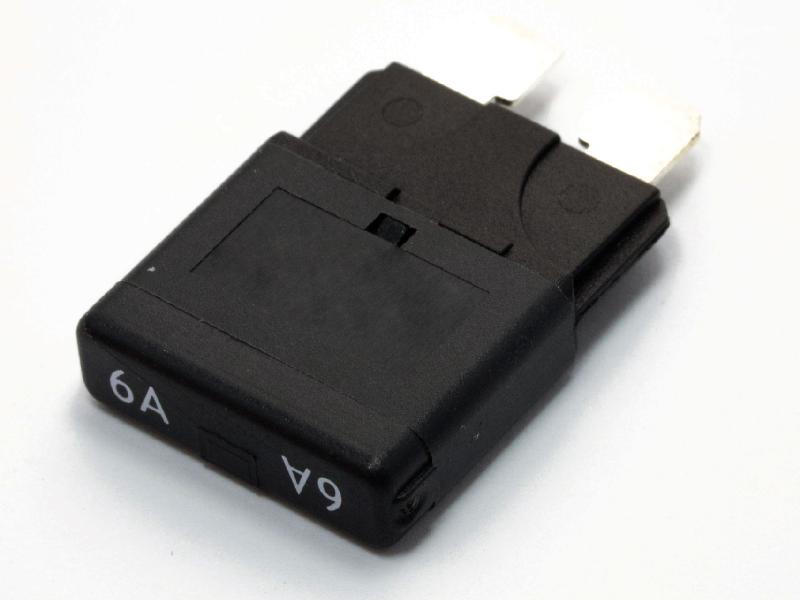

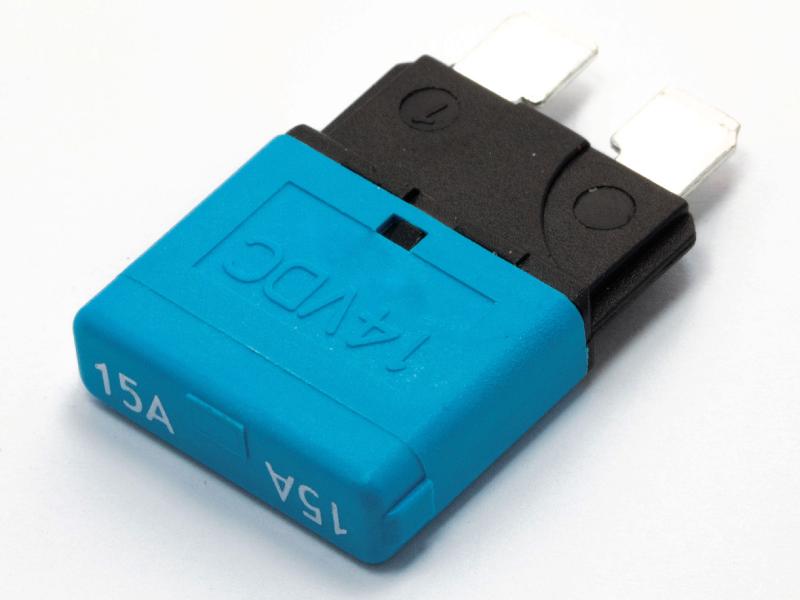

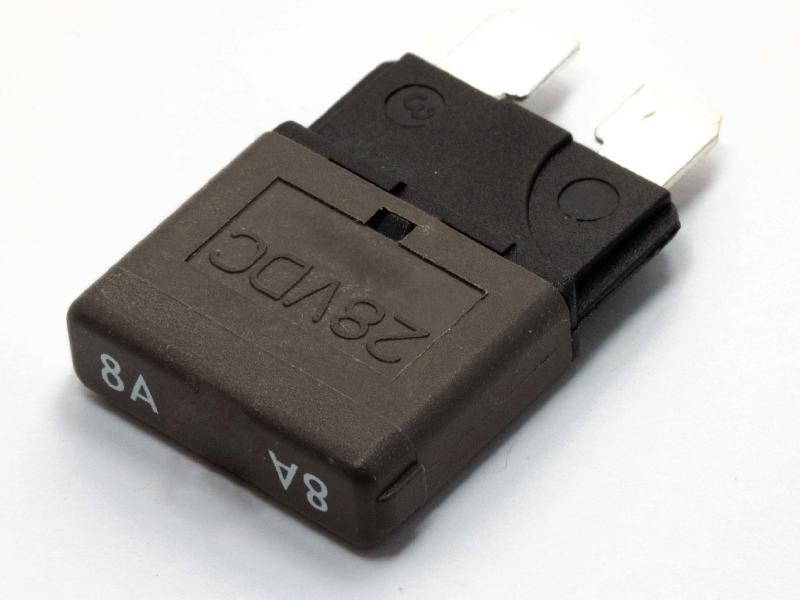

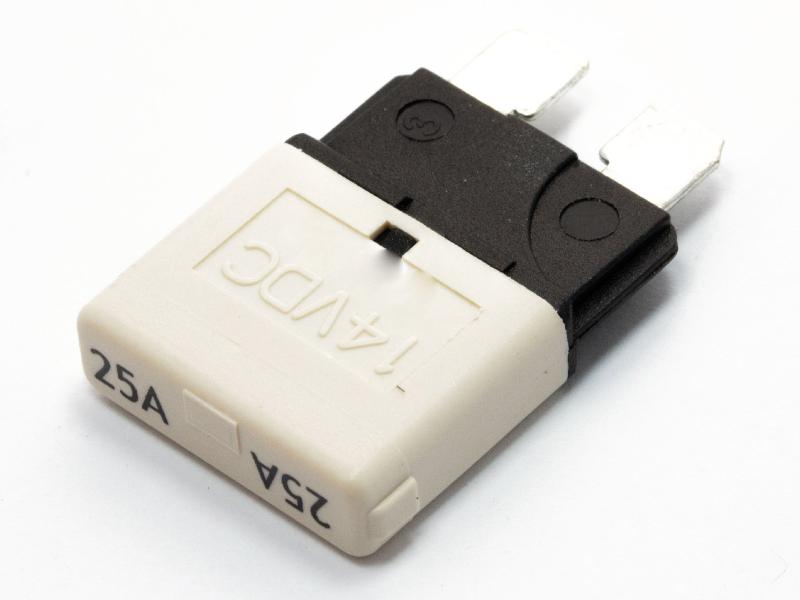

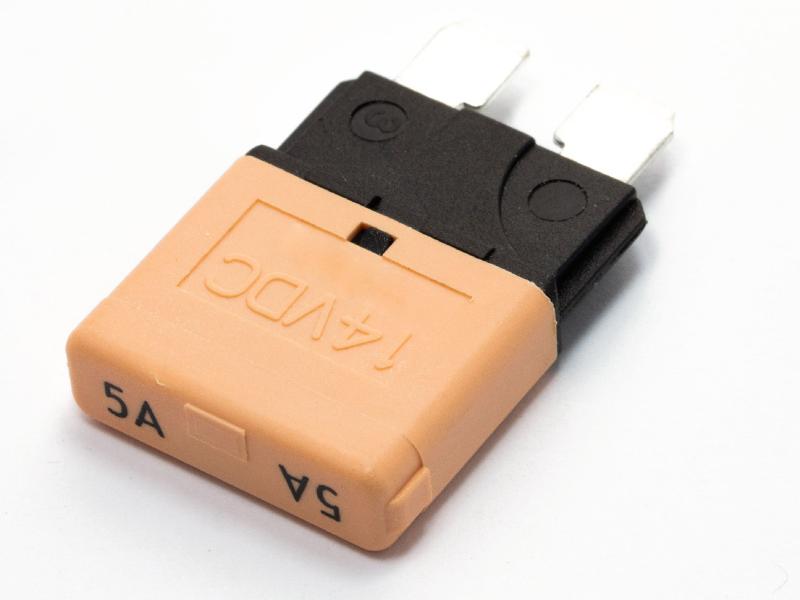

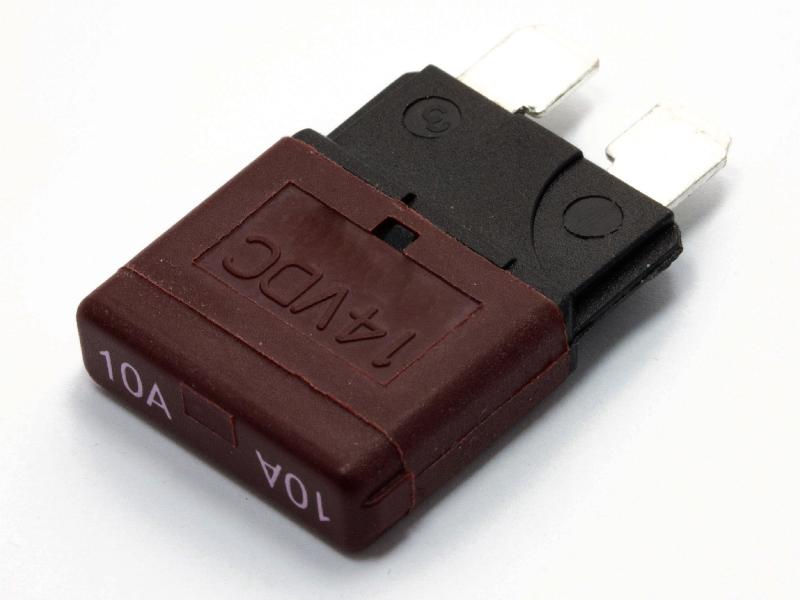

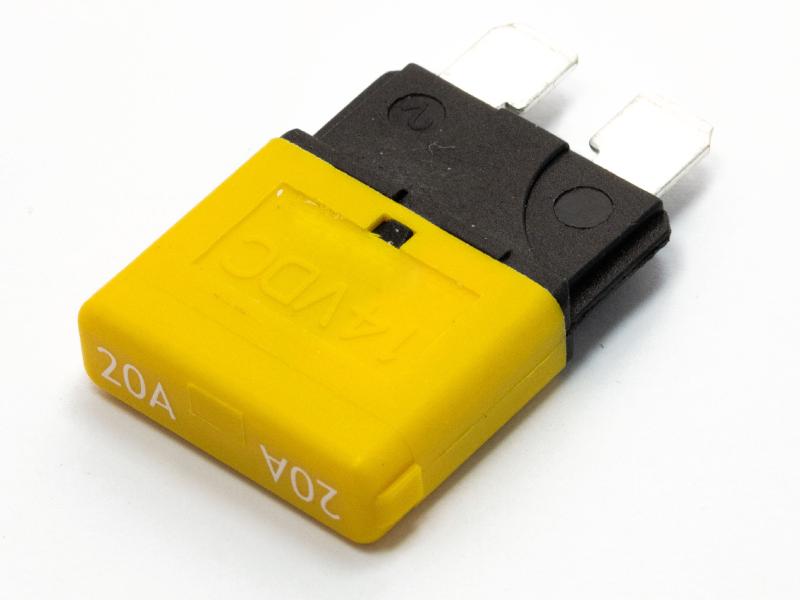

- Designed with a thermoplastic body that is color-coded to match the corresponding fuse — for example, a red fuse (10A) can be conveniently replaced with a red circuit breaker (10A).
Dimensions and 3D view
Dimensions
Length0.76
Height0.24
Width1.22
UnitInch
What is 3D CAD?
A 3D CAD (.STP) file ready to integrate into your project. Download and use it in your design software to streamline your workflow.
Custom solutions
Dimensions and 3D view
Custom solutions
Dimensions
Length0.76
Height0.24
Width1.22
UnitInch
What is 3D CAD?
A 3D CAD (.STP) file ready to integrate into your project. Download and use it in your design software to streamline your workflow.
