Key Specifications and Ratings
Automatic resetPanel mount with #10-32 studMarine rated
Voltage Rating32VDC
Current Rating10A to 60A
Interrupt Rating 2500A DC
Features and Application
- Mid-range amperage (up to 60A) to protect accessory applications in RVs, marine craft, emergency vehicles and trucks. Interrupt Rating meets ABYC requirements for DC branch circuit protection on large battery banks.
- Waterproof and ignition rated for use in marine engine compartments, meeting thorough SAE J1171 and ABYC standards.
- Conforms to SAE J553 standard for circuit breaker performance.

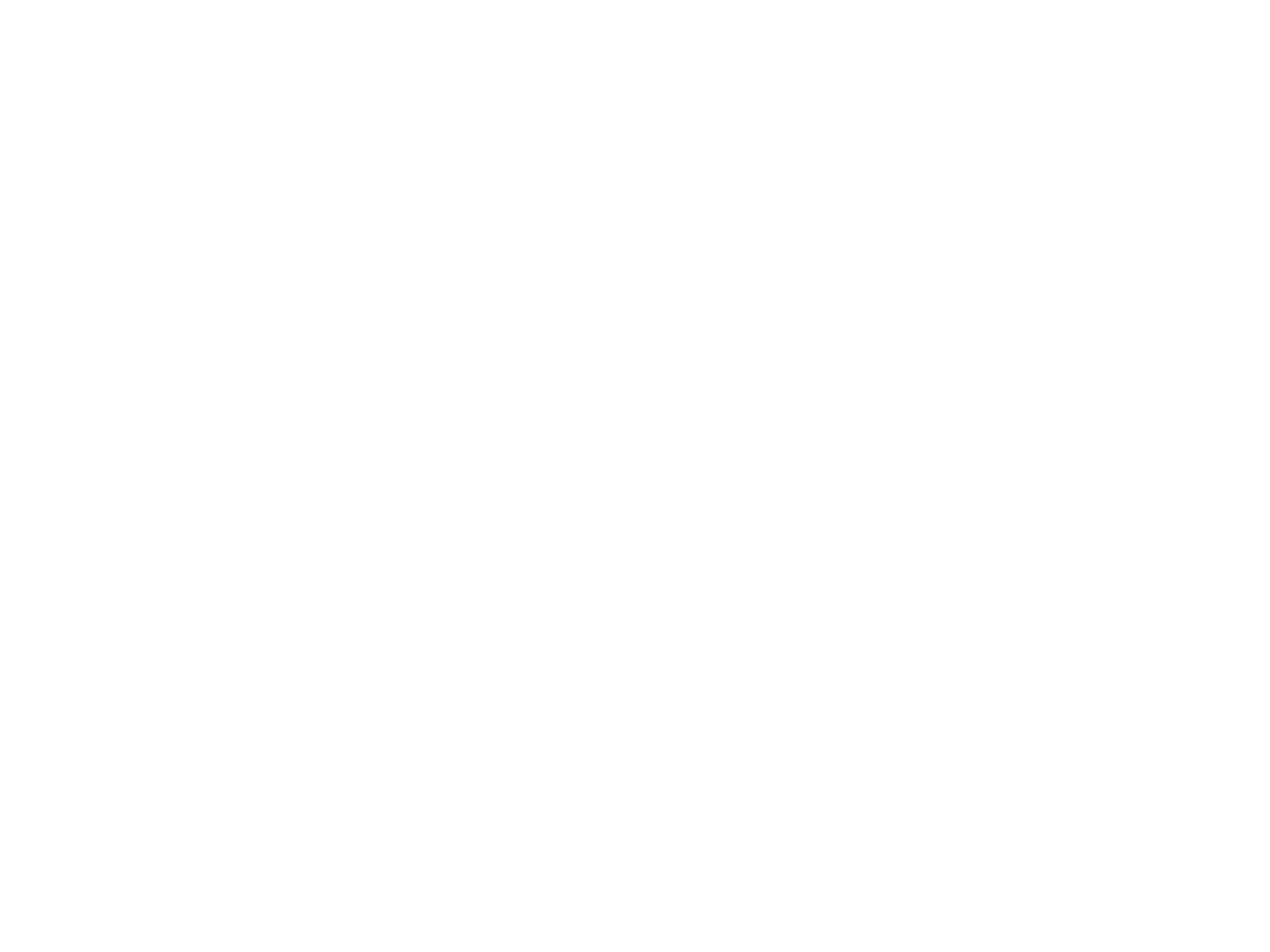

Dimensions and 3D view
Dimensions
Length2.2
Height1.46
Width1.16
UnitInch
What is 3D CAD?
A 3D CAD (.STP) file ready to integrate into your project. Download and use it in your design software to streamline your workflow.
Custom solutions
Dimensions and 3D view
Custom solutions
Dimensions
Length2.2
Height1.46
Width1.16
UnitInch
What is 3D CAD?
A 3D CAD (.STP) file ready to integrate into your project. Download and use it in your design software to streamline your workflow.
