Key Specifications and Ratings
Manual Reset - Push to TripPanel mount with #10-32 studMarine rated
Voltage Rating32VDC
Current Rating10A to 60A
Interrupt Rating 2500A DC
Features and Application
- Designed for accessory circuits in RVs, boats, specialty vehicles, and fleet equipment, this panel-mount breaker provides up to 60A of DC protection and meets ABYC interrupt rating requirements for large battery banks.
- Its panel-mount design installs cleanly through a cutout for a flush, accessible fit on dashboards or control panels.
- Waterproof and ignition-protected for marine engine compartments, it meets SAE J1171 and ABYC standards and conforms to SAE J553 performance requirements.

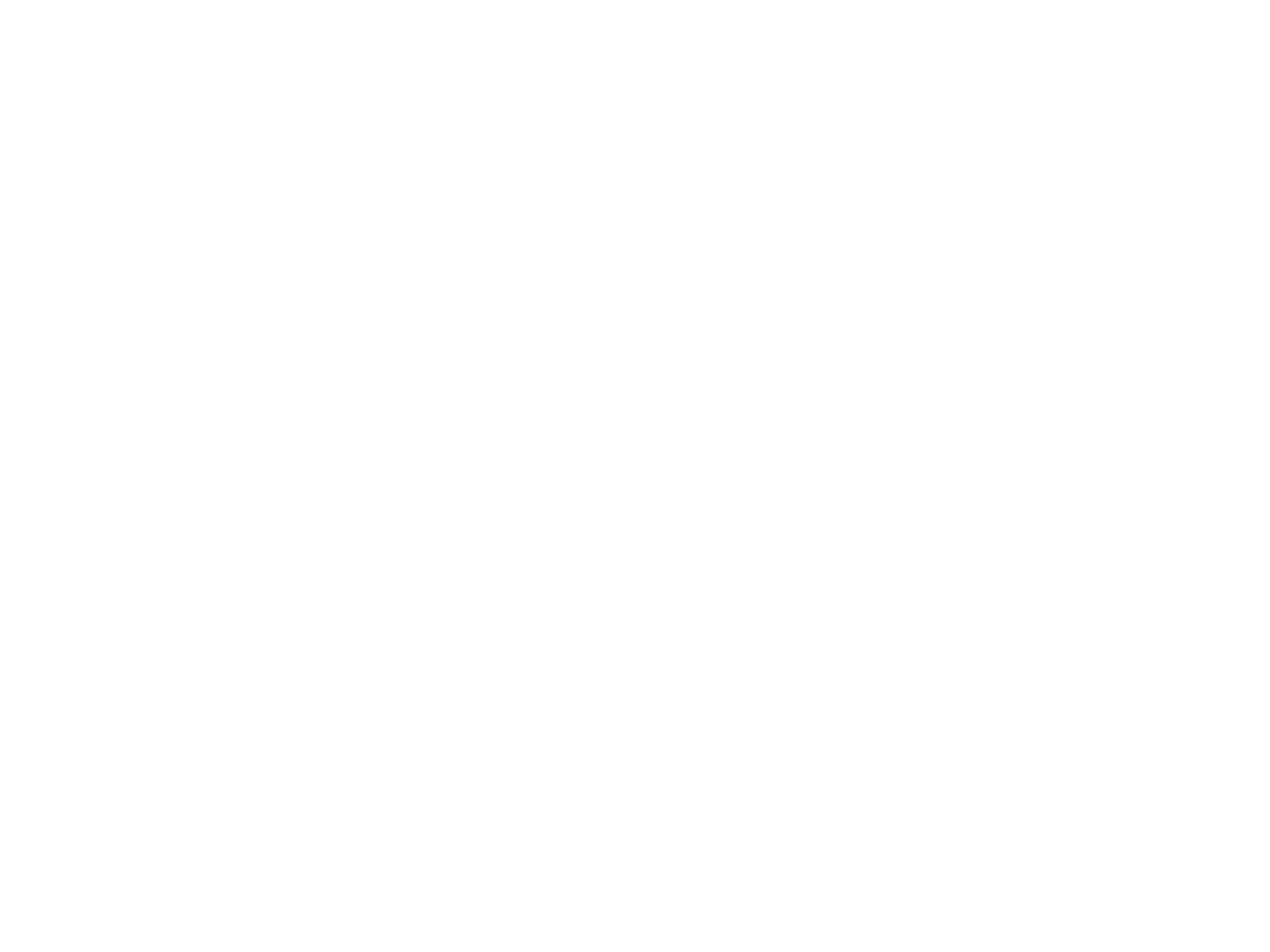

Dimensions and 3D view
Dimensions
Length2.2
Height1.46
Width1.77
UnitInch
What is 3D CAD?
A 3D CAD (.STP) file ready to integrate into your project. Download and use it in your design software to streamline your workflow.
Custom solutions
Dimensions and 3D view
Custom solutions
Dimensions
Length2.2
Height1.46
Width1.77
UnitInch
What is 3D CAD?
A 3D CAD (.STP) file ready to integrate into your project. Download and use it in your design software to streamline your workflow.
