Key Specifications and Ratings

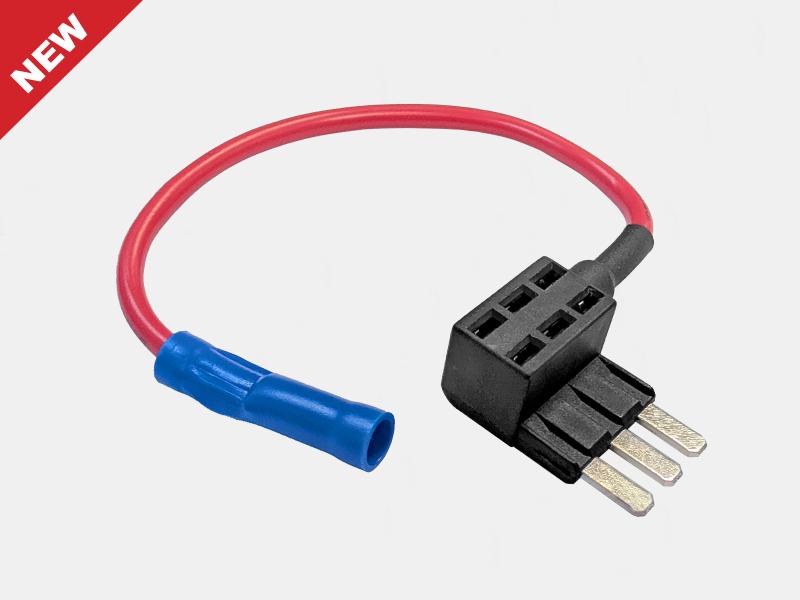

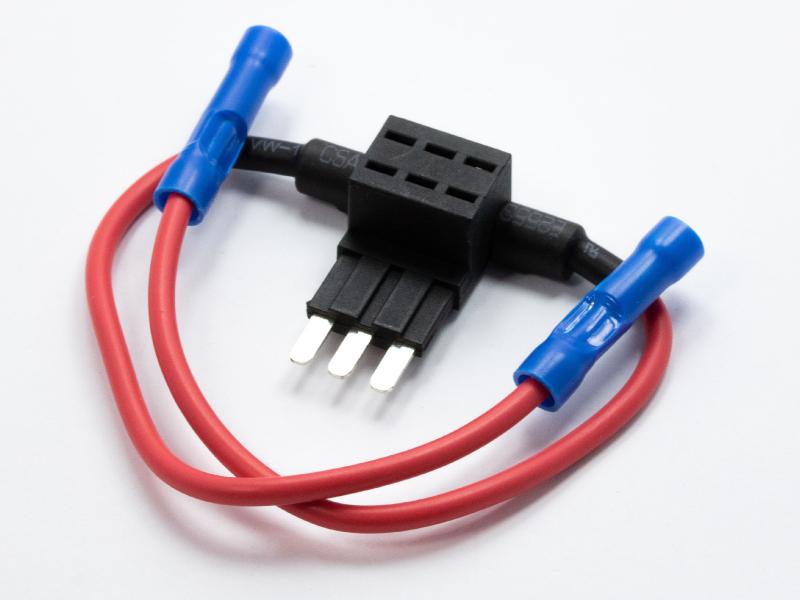

Combines two fuses into one slotRight and left hand exitWith a butt-splice connector Retail Pack Quantity: 1PC
Voltage Rating125VDC
Current Rating (Combined Circuits)40A
Current Rating (Auxiliar Circuit)15A
Wire Gauge#16AWG
Wire ColorsRed
Wire Length5 Inches
Features and Application

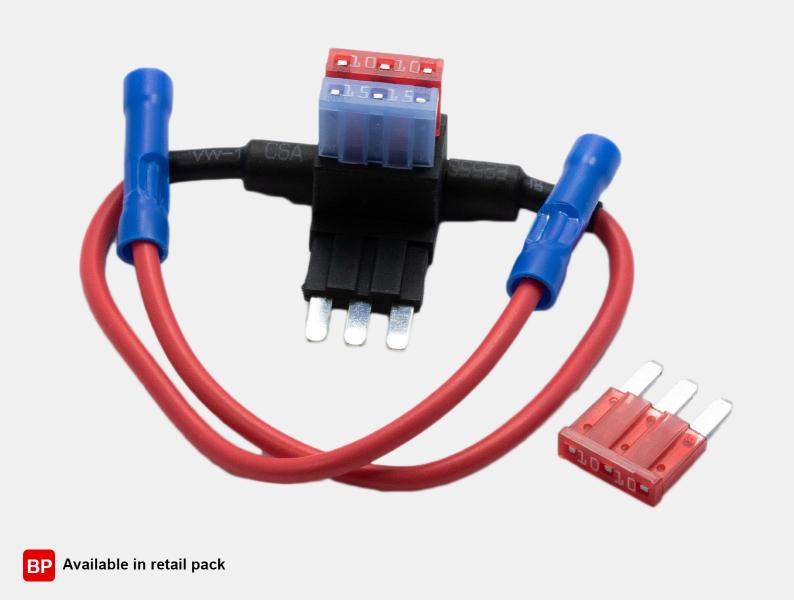

- When space is limited in a fuse block but more accessories still need protection, this lightweight Add-A-Fuse provides an easy solution by turning a single fuse slot into two protected circuits. It allows you to add an additional circuit without disturbing the original, and both circuits remain fully protected by their own independent fuses.
- No cutting or splicing is required. The integrated right- and left-hand exit butt-splice connectors make wiring fast, clean, and simple.

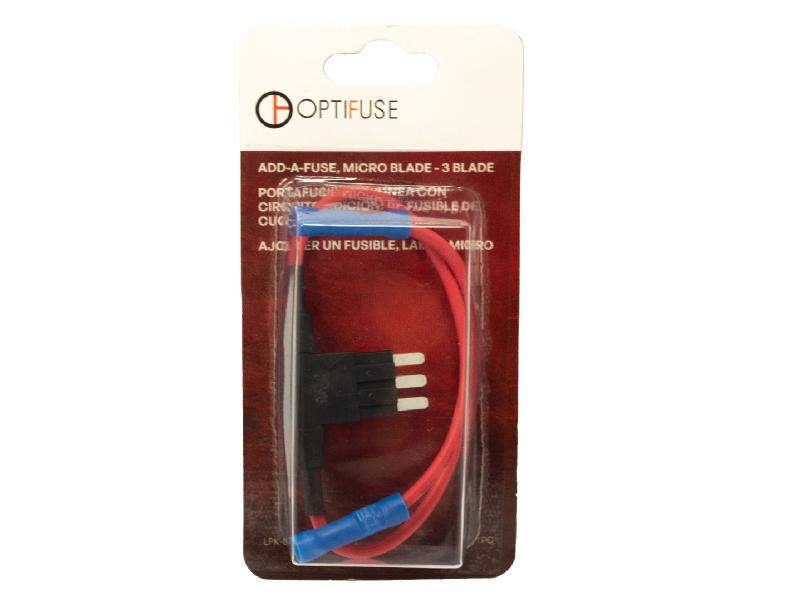

- NEW: Select products are available in attractive retail packaging including blister & clamshell packs and convenient multi amperage assortment packs.
Dimensions and 3D view
Dimensions
Length0.61
Height0.48
Width1.23
UnitInch
What is 3D CAD?
A 3D CAD (.STP) file ready to integrate into your project. Download and use it in your design software to streamline your workflow.
