Key Specifications and Ratings

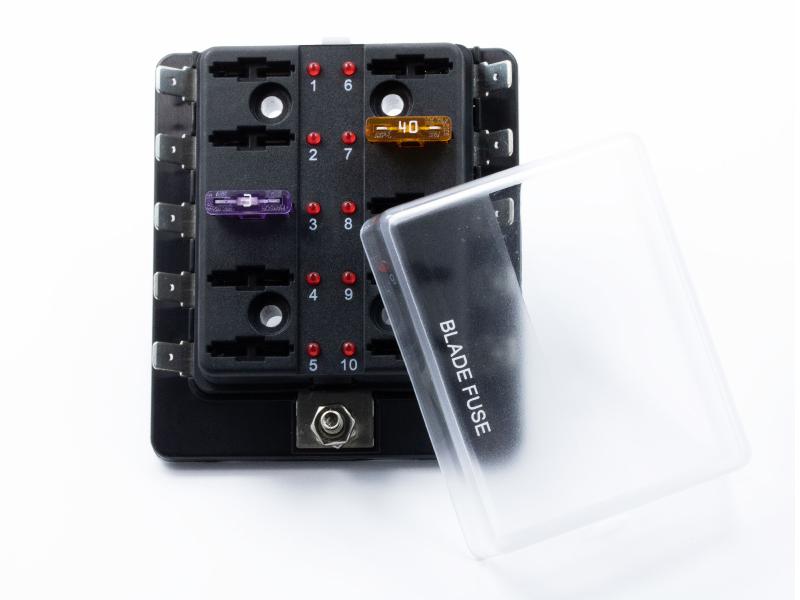

Consolidates 10 circuitsLED blown fuse indicatorComes with clear, insulating cover
Voltage Rating32VDC
Current Rating (Per Circuit)30A
Current Rating (Max Input)100A
Features and Application
- Fuse block for Regular (ATO/ATC style) blade fuses used in DC distribution systems to provide compact circuit protection for 10 circuits, with a rated current of 30A per position and 100A total for the fuse block.
- With an LED light for each circuit that illuminates when the circuit opens and a fuse needs to be replaced, reducing the time required to find and replace a faulty fuse.
- Comes with an insulating cover that offers protection against short circuits, as well as from dirt, dust, and splashes.
Dimensions and 3D view
Dimensions
Length3.74
Height0.83
Width3.35
UnitInch
Custom solutions
Dimensions and 3D view
Custom solutions
Dimensions
Length3.74
Height0.83
Width3.35
UnitInch
