Key Specifications and Ratings

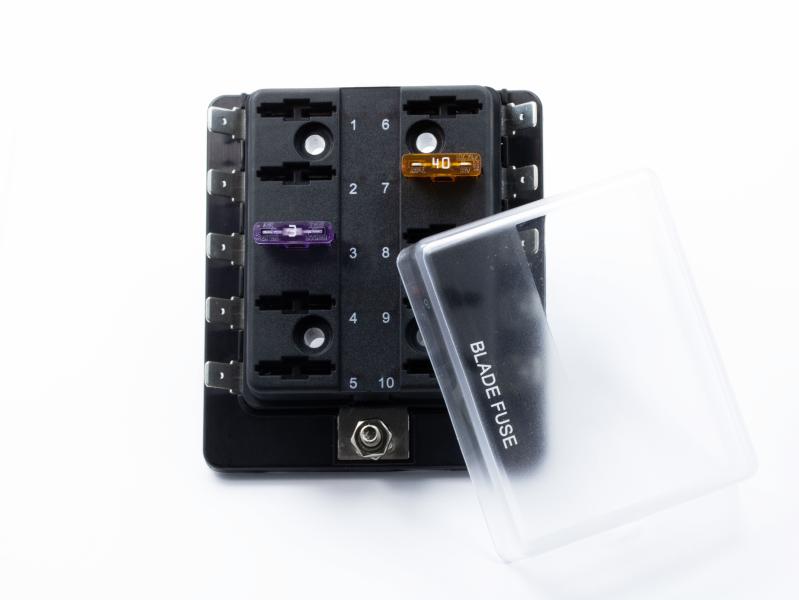

Consolidates 10 circuitsQuick connect input terminalsComes with clear, insulating cover
Voltage Rating32VDC
Current Rating (Per Circuit)30A
Current Rating (Max Input)100A
Features and Application
- Fuse block used to distribute power to automotive electrical systems and provide compact circuit protection for 10 circuits with Regular (ATO/ATC style) blade fuses.
- The rated current is 30A per position and 100A total for the fuse block.
- Comes with an insulating cover that offers protection against short circuits, as well as from dirt, dust, and splashes.
Dimensions and 3D view
Dimensions
Length3.74
Height0.83
Width3.35
UnitInch
What is 3D CAD?
A 3D CAD (.STP) file ready to integrate into your project. Download and use it in your design software to streamline your workflow.
