Key Specifications and Ratings
Comes with insulating coverM5 screw input terminals
Voltage Rating32VDC
Current Rating60A
Features and Application

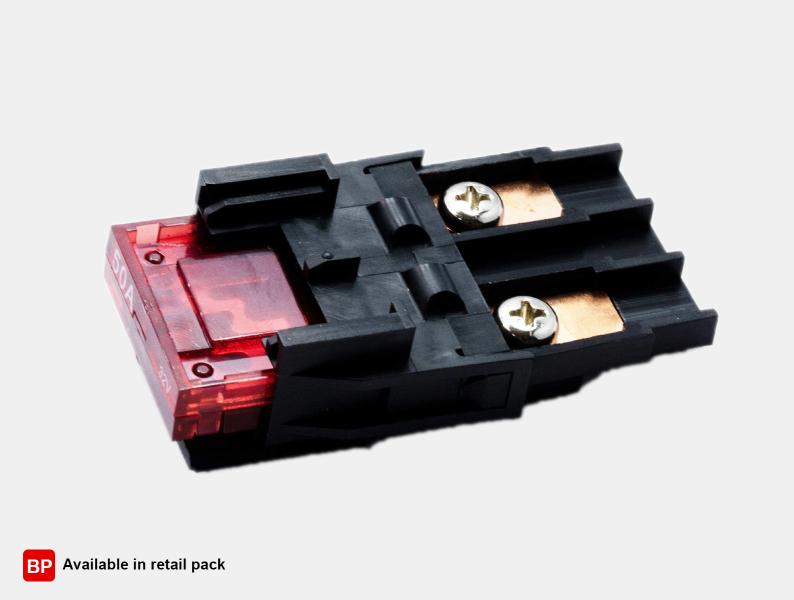

- Single position fuse block for Maxi style blade fuses, intended to use when an added circuit is needed or for applications that have minimal circuit requirements.
- This block can safely handle up to 60A, making it ideal for the heavy-duty loads associated with DC battery operated equipment.

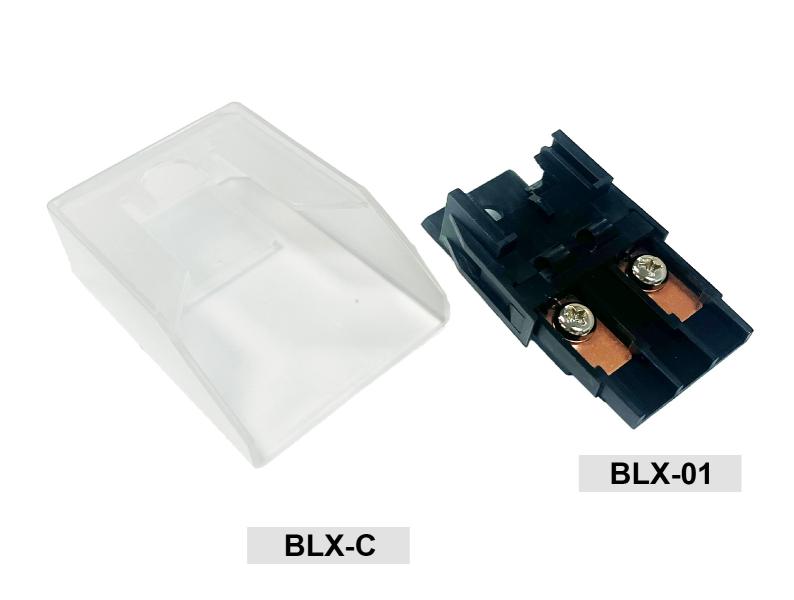

- Its insulating cover protects against accidental short circuits and prevents anything from accidentally touching the exposed terminals.
Dimensions and 3D view
Dimensions
Length1.52
Height0.88
Width2.66
UnitInch
What is 3D CAD?
A 3D CAD (.STP) file ready to integrate into your project. Download and use it in your design software to streamline your workflow.
Custom solutions
Dimensions and 3D view
Custom solutions
Dimensions
Length1.52
Height0.88
Width2.66
UnitInch
What is 3D CAD?
A 3D CAD (.STP) file ready to integrate into your project. Download and use it in your design software to streamline your workflow.
