Key Specifications and Ratings
Spring bronze or beryllium copper pinsVertical fuse entry
Voltage Rating500VAC
Current Rating30A to 40A
Features and Application

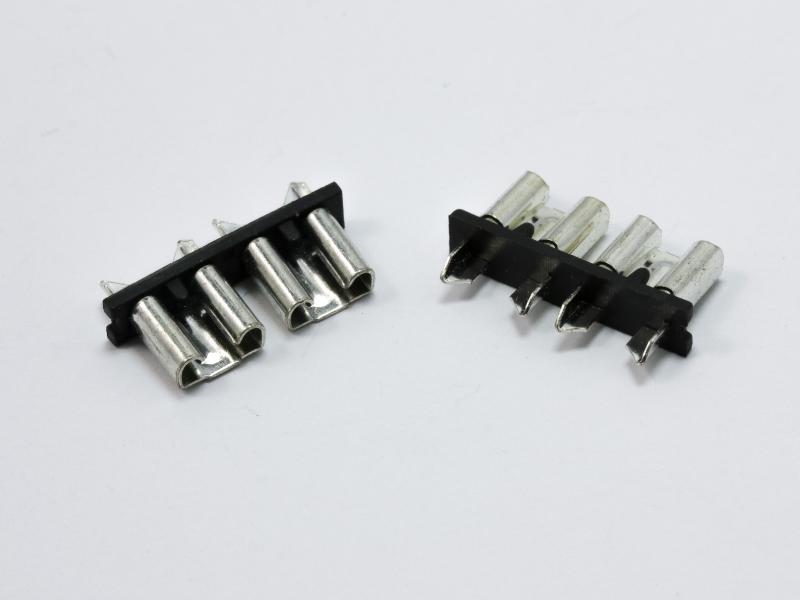

- Economical method to mount Regular (ATO/ATC style) blade fuses on a printed circuit board (PCB).
- With tin-plated mounting pins for easy soldering and a plastic base that holds the fuse securely, even after multiple insertions.
- Configured with a spring bronze base material that is compatible with fuses up to 15A, while beryllium copper base fuse clips accept fuses up to 40A.
Dimensions and 3D view
Dimensions
Length0.75
Height0.43
Width0.13
UnitInch
What is 3D CAD?
A 3D CAD (.STP) file ready to integrate into your project. Download and use it in your design software to streamline your workflow.
Custom solutions
Dimensions and 3D view
Custom solutions
Dimensions
Length0.75
Height0.43
Width0.13
UnitInch
What is 3D CAD?
A 3D CAD (.STP) file ready to integrate into your project. Download and use it in your design software to streamline your workflow.
