Key Specifications and Ratings
Brass, bright tin-plated pins Insulating caseVertical fuse entry
Voltage Rating500VAC 500VDC
Current Rating30A
Features and Application

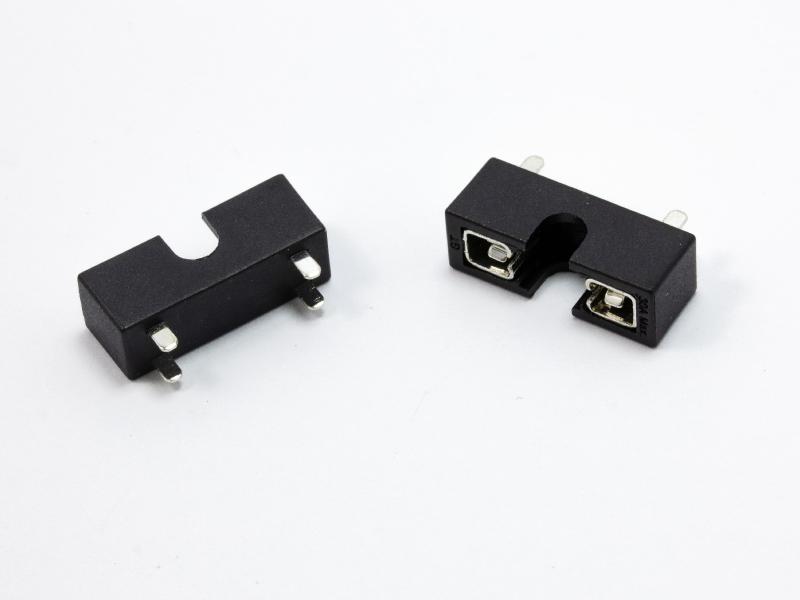

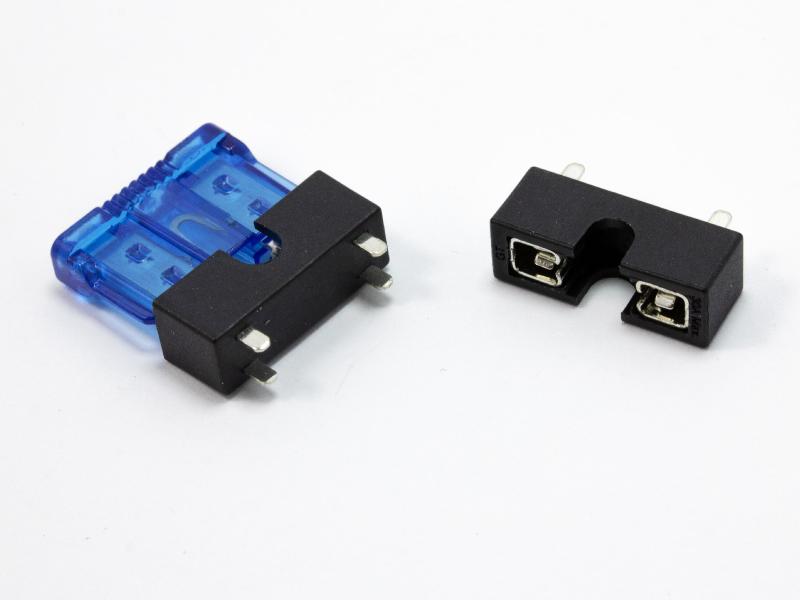

- An economical method to mount blade fuses on a printed circuit board (PCB), this clip accepts most blade fuse styles: Mini - Low Profile, Mini, and Regular (ATO/ATC).
- With tin-plated mounting pins for easy soldering and an insulating case that offers protection against short circuits and holds the fuse securely, even after multiple insertions.
- The base material is a brass and the plating is bright tin, with a voltage rating up to 500VAC/DC and a current rating up to 30A.
Dimensions and 3D view
Dimensions
Length0.76
Height0.27
Width0.41
UnitInch
What is 3D CAD?
A 3D CAD (.STP) file ready to integrate into your project. Download and use it in your design software to streamline your workflow.
Custom solutions
Dimensions and 3D view
Custom solutions
Dimensions
Length0.76
Height0.27
Width0.41
UnitInch
What is 3D CAD?
A 3D CAD (.STP) file ready to integrate into your project. Download and use it in your design software to streamline your workflow.
