Key Specifications and Ratings
Water resistant cap (IP 67)Mounting bracket for easy installationVarious wire gauge, length and colors availableRetail Pack Quantity: 1PC
Voltage Rating58VDC
Current Rating15A to 30A
Wire Gauge#12 - #16AWG
Wire ColorsBlack, Red, Orange
Wire Length5 Inches
Features and Application

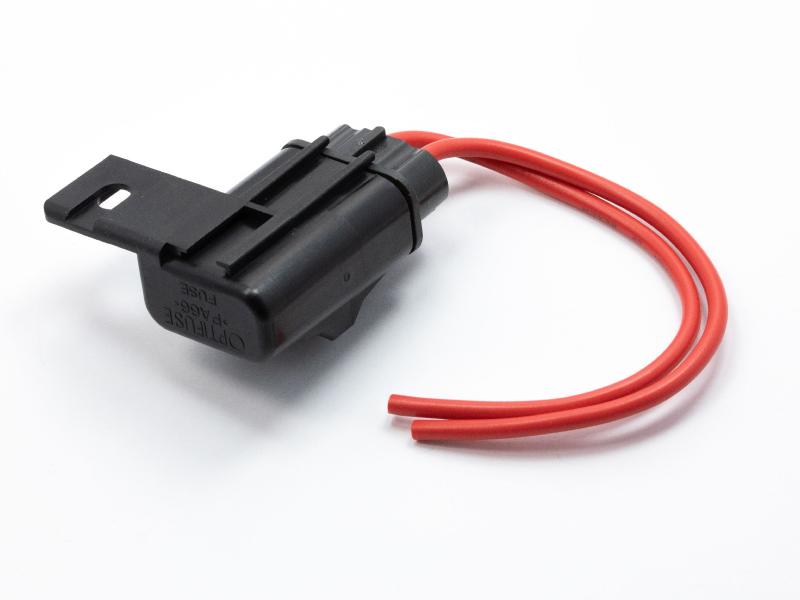

- In-line fuse holder engineered to help to save space in vehicle electrical systems, with an IP67 rated, gasket-sealed design for trailers and marine applications where water infiltration is a problem.

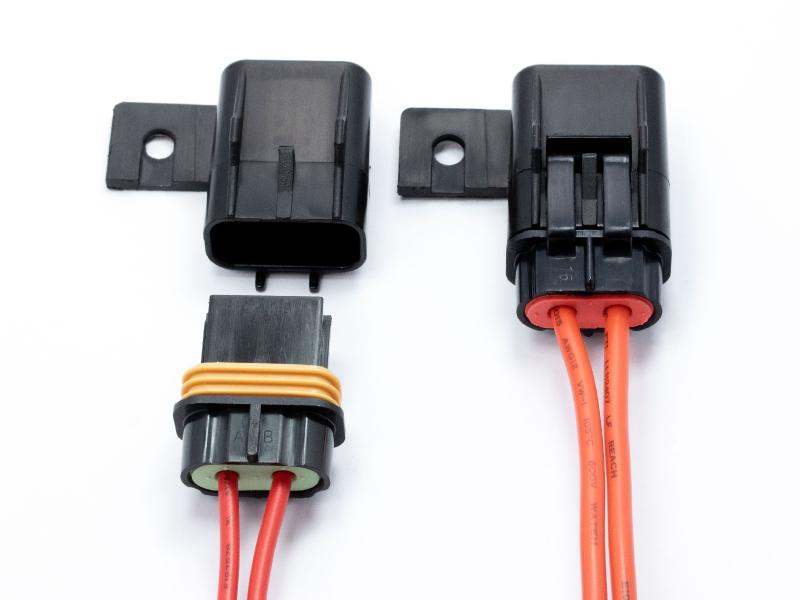

- With a cap that features an attached mounting bracket for easy installation and an inter-locking tab that will keep the fuse holder securely fastened to the mounted cap.
- Compatible with 32V and 58V Regular (ATO/ATC style) blade fuses, this holder can safely handle up to 30A, depending on the wire gauge.

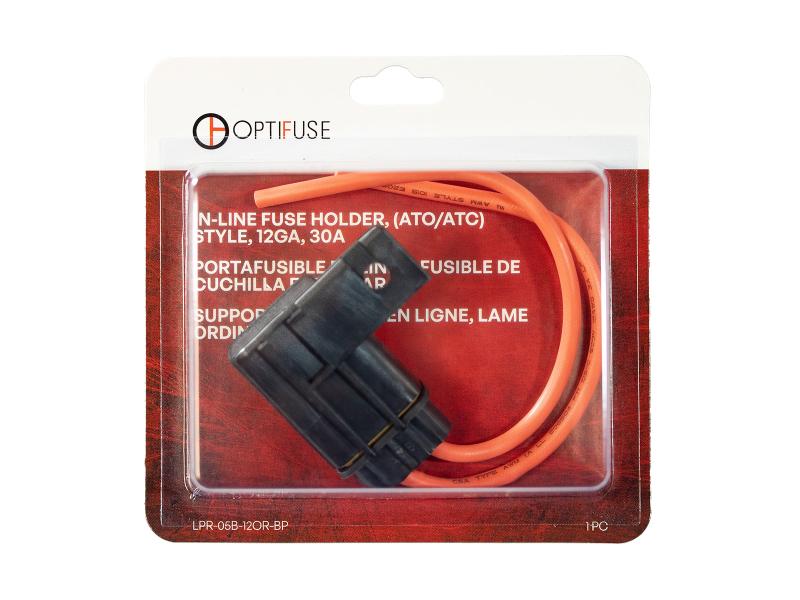

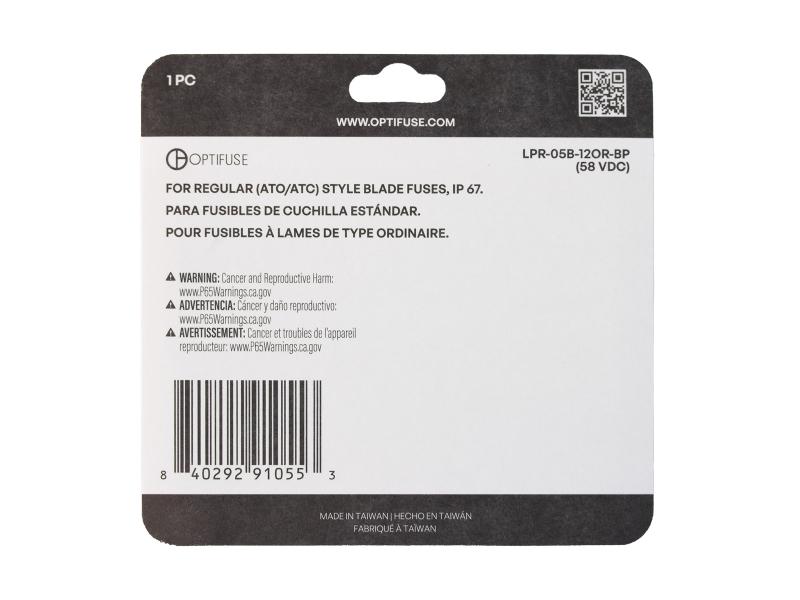

- NEW: Select products are available in attractive retail packaging including blister & clamshell packs and convenient multi amperage assortment packs.
Dimensions and 3D view
Dimensions
Length1.08
Height0.46
Width1.17
UnitInch
What is 3D CAD?
A 3D CAD (.STP) file ready to integrate into your project. Download and use it in your design software to streamline your workflow.
Custom solutions
Dimensions and 3D view
Custom solutions
Dimensions
Length1.08
Height0.46
Width1.17
UnitInch
What is 3D CAD?
A 3D CAD (.STP) file ready to integrate into your project. Download and use it in your design software to streamline your workflow.
