Key Specifications and Ratings
Splash-proof cap (IP 65)Various wire gauge, length and colors availableAvailable with custom body colorRetail Pack Quantity: 1PC
Voltage Rating125VDC
Current Rating50A to 60A
Wire Gauge#6 - #8AWG
Wire ColorsBlack, Red
Wire Length6 Inches
Features and Application

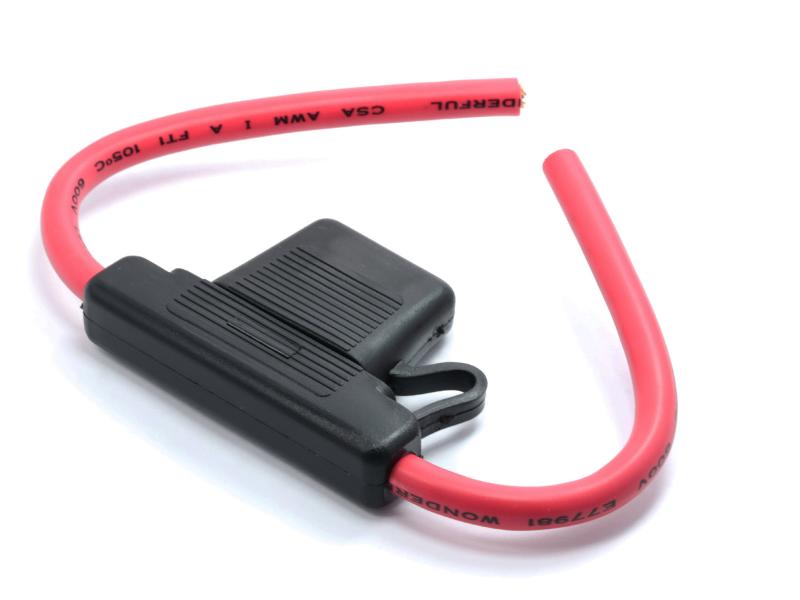

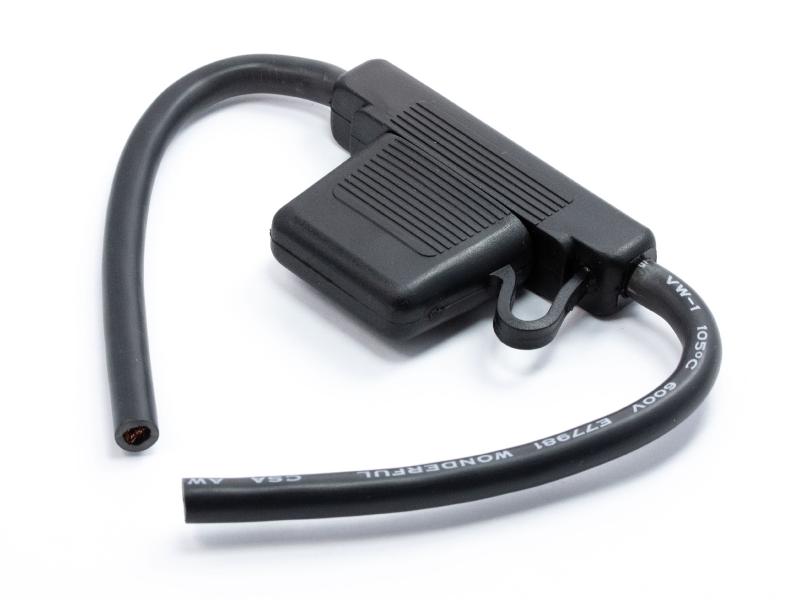

- In-line fuse holder designed to help save space in vehicle electrical systems, with an IP65 rating that makes it ideal for heavy-duty loads associated with automotive and marine applications.
- Compatible with 32V, 58V and 80V DC Maxi style blade fuses, this holder is configured with 8AWG leads that are compatible with fuses up to 50A or with 6AWG leads that accept fuses up to 60A.
- Features an integrated snap-on cover that helps protect the fuse from water, dust, and other airborne pollutants.
- NEW: Select products are available in attractive retail packaging including blister & clamshell packs and convenient multi amperage assortment packs.
Dimensions and 3D view
Dimensions
Length3.13
Height0.47
Width2.09
UnitInch
What is 3D CAD?
A 3D CAD (.STP) file ready to integrate into your project. Download and use it in your design software to streamline your workflow.
Custom solutions
Dimensions and 3D view
Custom solutions
Dimensions
Length3.13
Height0.47
Width2.09
UnitInch
What is 3D CAD?
A 3D CAD (.STP) file ready to integrate into your project. Download and use it in your design software to streamline your workflow.
