Key Specifications and Ratings
LED blown fuse indicatorSplash-proof cap (IP X4)
Voltage Rating24VDC
Current Rating60A
Wire Gauge#6AWG
Wire ColorsRed
Wire Length4 Inches
Features and Application

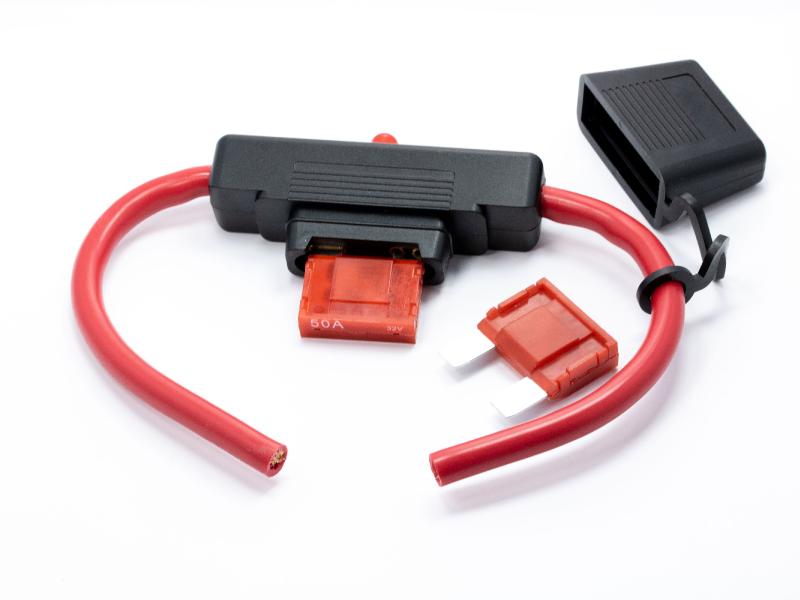

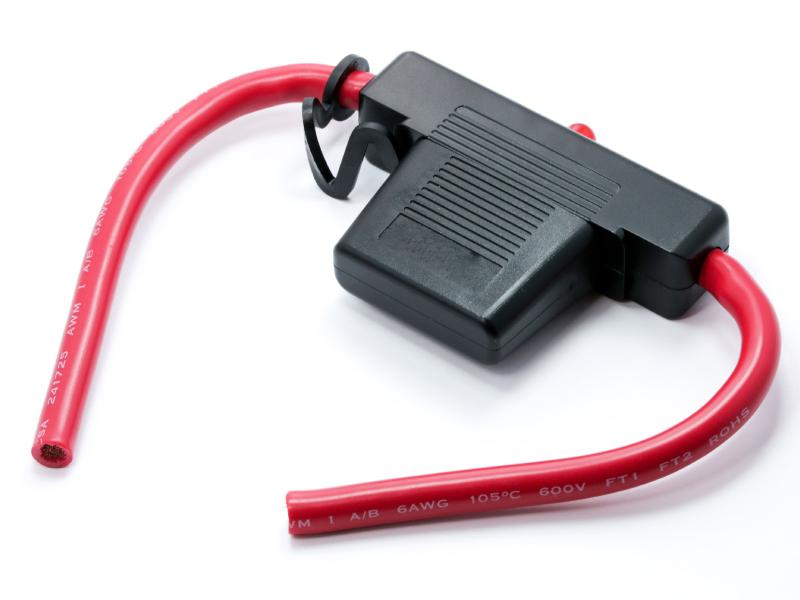

- In-line fuse holder designed to help save space in vehicle electrical systems, with an LED indicating light that shine when the fuse inside opens.
- Built for use with applications that call for an automotive Maxi style blade fuse in heavy-duty loads associated with DC battery operated equipment, it can handle currents up to 60A.
- Manufactured to withstand harsh environmental conditions with an integrated snap-on cover that offers splashproof protection.
Dimensions and 3D view
Dimensions
Length3.39
Height0.8
Width2.66
UnitInch
What is 3D CAD?
A 3D CAD (.STP) file ready to integrate into your project. Download and use it in your design software to streamline your workflow.
Custom solutions
Dimensions and 3D view
Custom solutions
Dimensions
Length3.39
Height0.8
Width2.66
UnitInch
What is 3D CAD?
A 3D CAD (.STP) file ready to integrate into your project. Download and use it in your design software to streamline your workflow.
