Key Specifications and Ratings
Accommodate FSO sized fusesAC/DC ratingsSpace-saving compact sizeRetail Pack Quantity: 1PC
Voltage Rating32VDC
Current Rating30A
Wire Gauge#14AWG
Wire ColorsRed
Wire Length18 Inches
Features and Application
- Designed for use with 6.3 x 32mm fuses, this space-saving in-line fuse holder is ideal when no surface is available to install the fuse using another mounting type. Commonly used as a part of a wire harness assembly in electronic equipment, appliances, and lighting circuits.
- Intended for use in DC circuits (up to 32VDC) and AC circuits (up to 250VAC), this fuse holder can safely handle up to 30A.

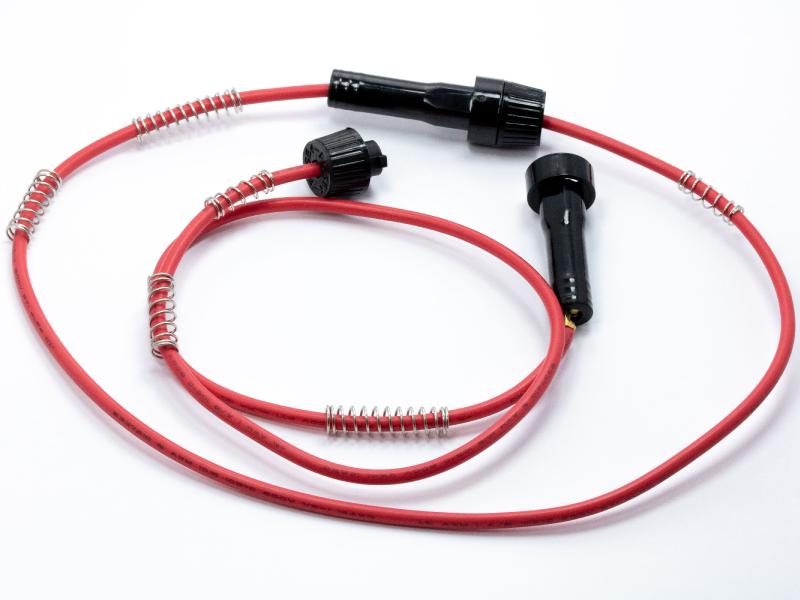

- It comes with three different length springs that can be installed to accommodate FSO sized fuses ranging from 5/8” to 1 1/4” in length.
- NEW: Select products are available in attractive retail packaging including blister & clamshell packs and convenient multi amperage assortment packs.
Dimensions and 3D view
Dimensions
Length0.39
Height2.15
Width0.39
UnitInch
What is 3D CAD?
A 3D CAD (.STP) file ready to integrate into your project. Download and use it in your design software to streamline your workflow.
Custom solutions
Dimensions and 3D view
Custom solutions
Dimensions
Length0.39
Height2.15
Width0.39
UnitInch
What is 3D CAD?
A 3D CAD (.STP) file ready to integrate into your project. Download and use it in your design software to streamline your workflow.
