Key Specifications and Ratings

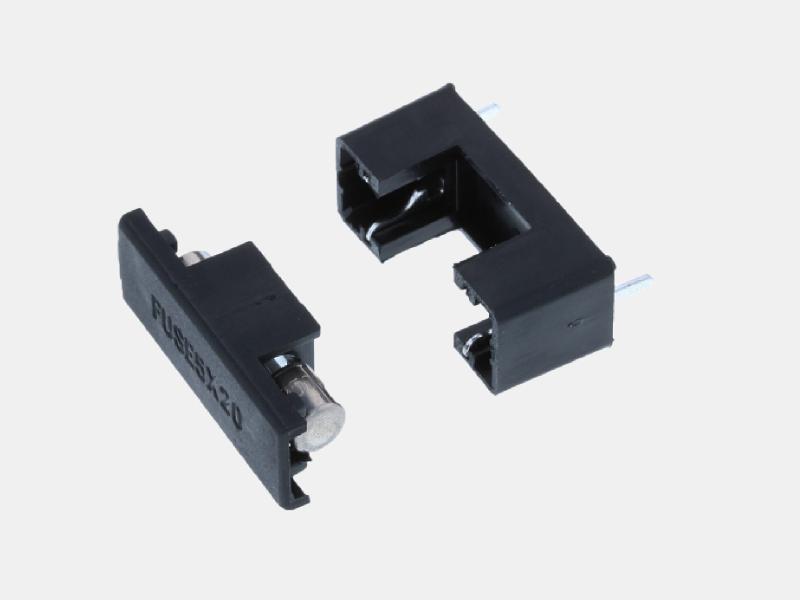

PCB mountedComes with insulating coverEasy soldering
Voltage Rating250VAC
Current Rating6.3A
Features and Application
- Built to mount 5 x 20mm glass and ceramic fuses, with PCB mountable tin-plated brass pins for easy soldering.
- This fuse block's fuse-retaining insulation cover protects against accidental short circuits.
- Designed for electronics equipment, appliances, and lighting circuit applications.

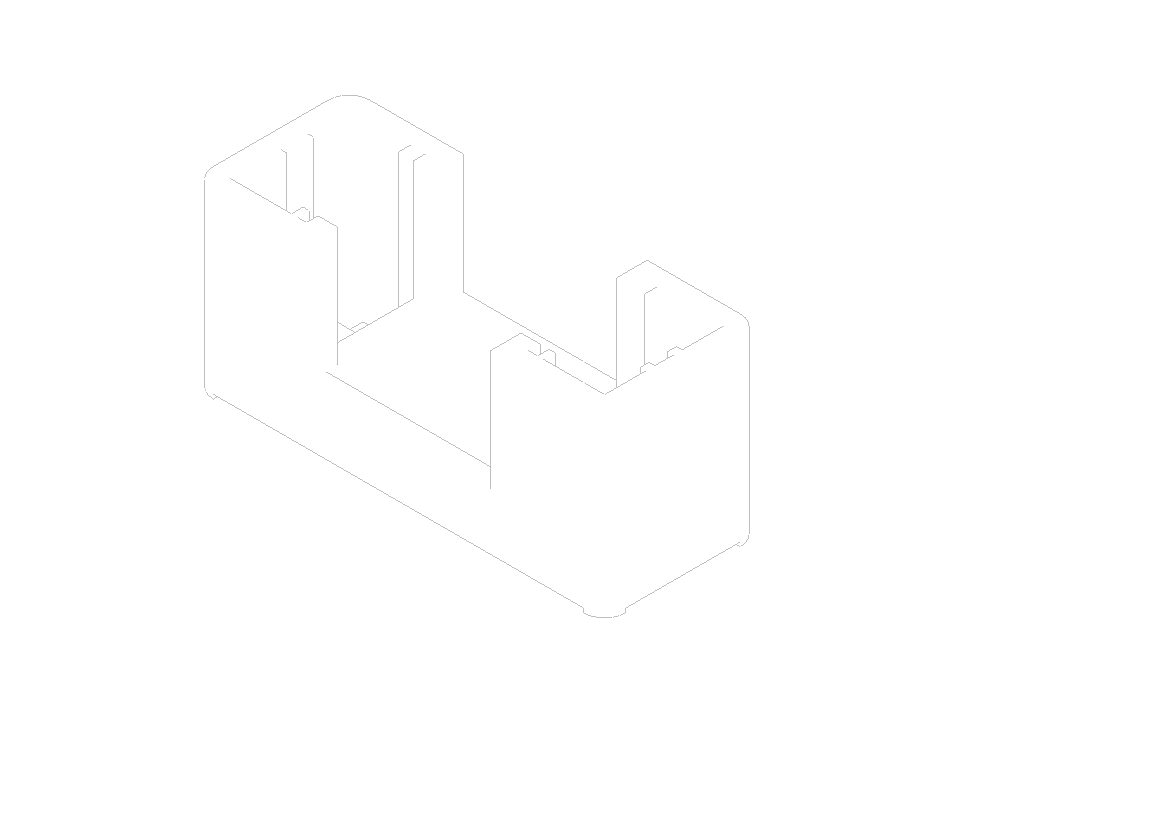

Dimensions and 3D view
Dimensions
Length0.98
Height0.39
Width0.62
UnitInch
What is 3D CAD?
A 3D CAD (.STP) file ready to integrate into your project. Download and use it in your design software to streamline your workflow.
Custom solutions
Dimensions and 3D view
Custom solutions
Dimensions
Length0.98
Height0.39
Width0.62
UnitInch
What is 3D CAD?
A 3D CAD (.STP) file ready to integrate into your project. Download and use it in your design software to streamline your workflow.
Accessories and Mounting Devices
Use it with
