Key Specifications and Ratings

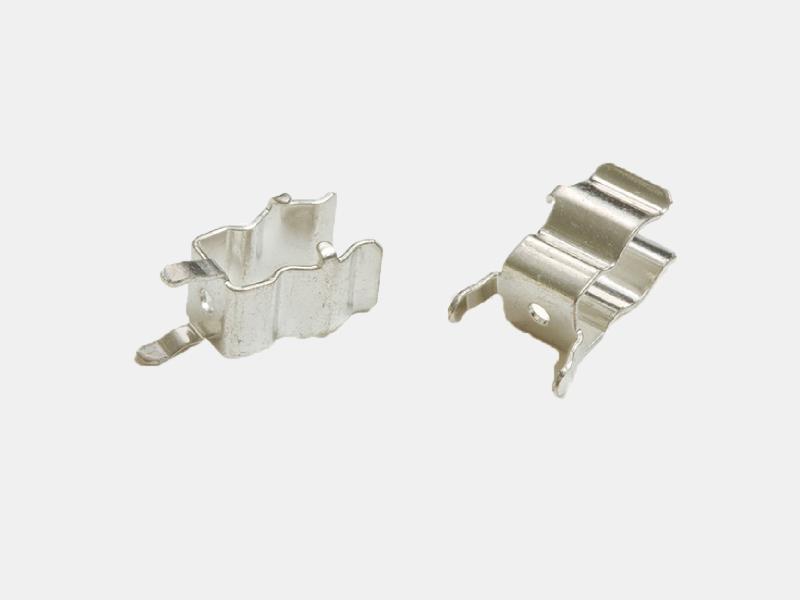

Bronze, tin-plated pins With end stops
Voltage Rating250VAC
Current Rating10A
Features and Application
  • Designed for use with standard 5 x 20mm or 5 x 15mm (sometimes called 2AG) fuses.
  • Most economical method to mount glass and ceramic fuses on a printed circuit board (PCB), with tin-plated mounting pins for easy soldering and end stops for easy fuse installation.
  • The voltage rating is up to 250VAC and the current rating is up to 10A.
Dimensions and 3D view
Dimensions
Length0.59
Height0.2
Width0.2
UnitInch
Custom solutions
Dimensions and 3D view
Custom solutions
Dimensions
Length0.59
Height0.2
Width0.2
UnitInch
