FSE / FSE-P


FSE / FSE-P

Glass - 5 x 15 mm - Fast Acting
curus certification image
ul248 certification image
RoHS certification image
REACH certification image
Key Specifications and Ratings
5 x 15 mmFast actingGlass fuseRetail Pack Quantity: 5PCS / Box Quantity: 5PCS
Voltage Rating250VAC
Current Rating300mA to 15A
Interrupt Rating100A AC
Features and Application

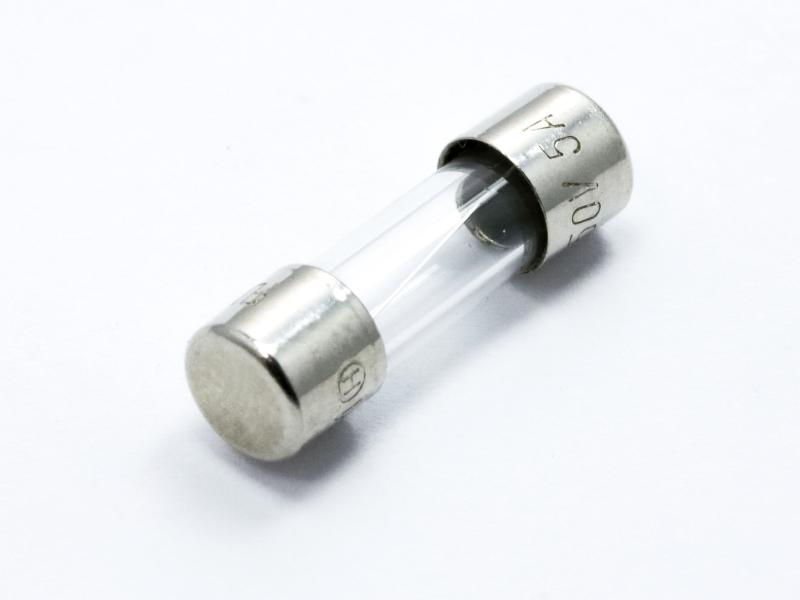

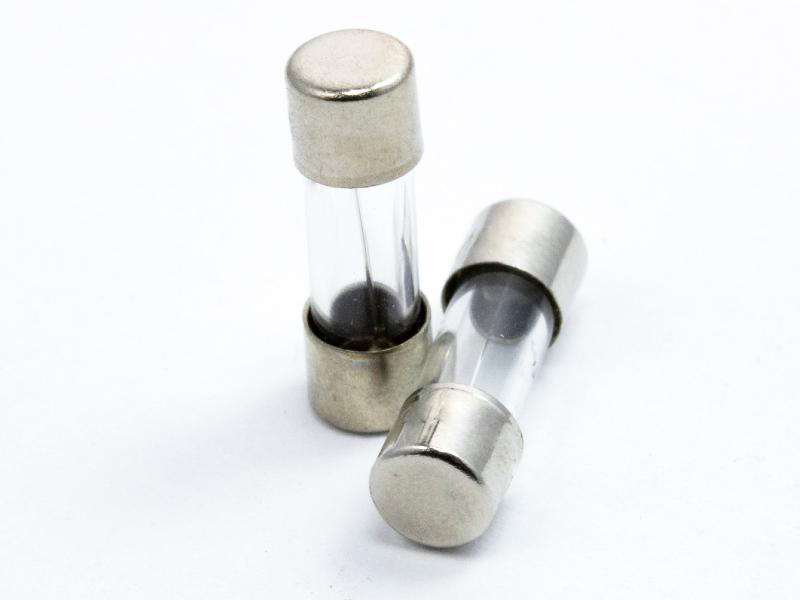

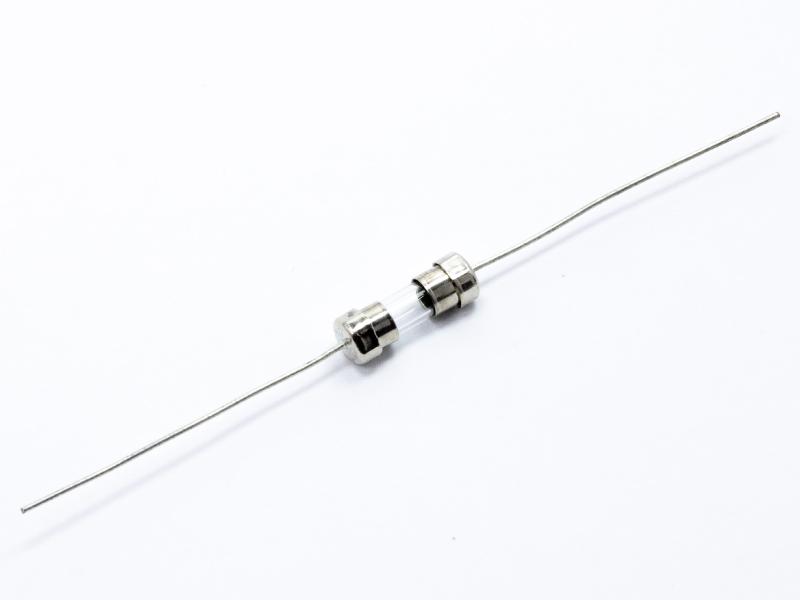

  • 15mm long and 5mm in diameter, this fuse is fast acting with a glass body and is UL Listed. Available with or without axial leads.
  • Commonly used in applications that are sensitive to changes in the flow of electricity, such as home appliances. Designed to open within seconds of being exposed to overloads and short circuits.
  • With a clear body that allows for visual checks of a damaged filament.

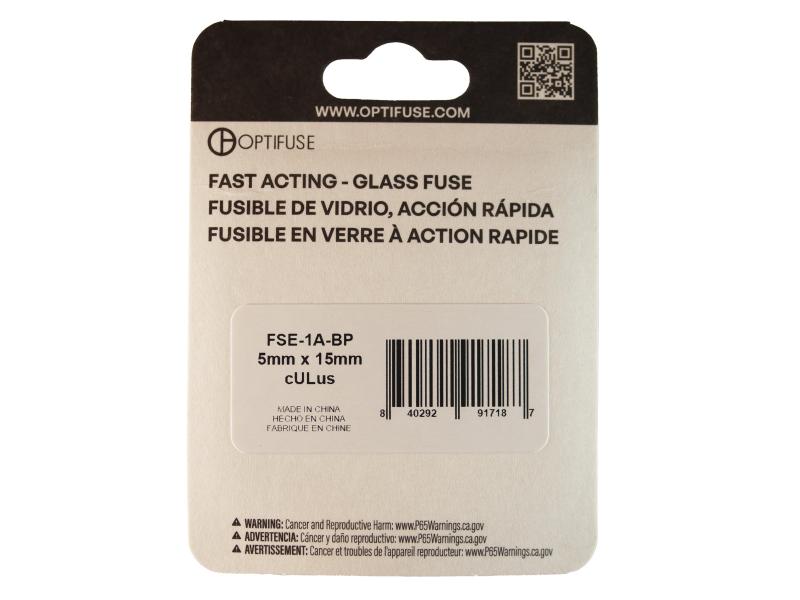

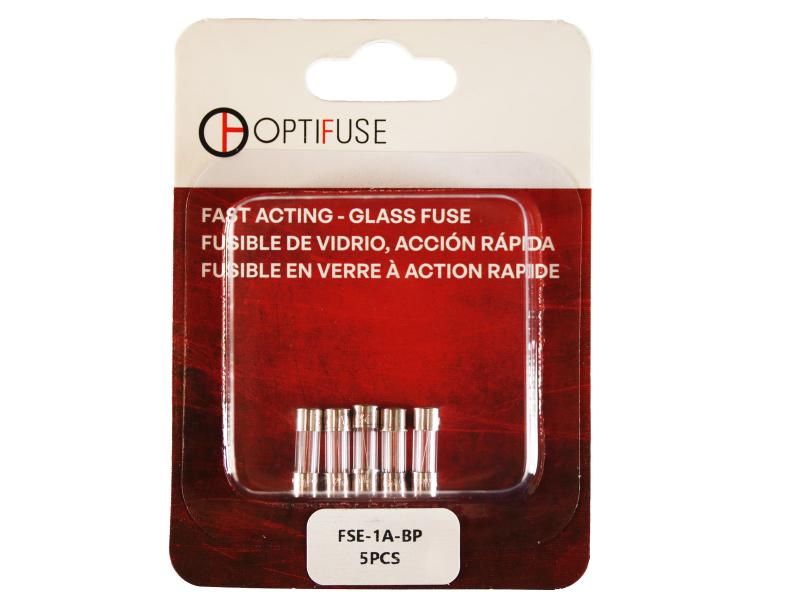

  • NEW: Select products are available in pill boxes.
Dimensions and 3D view
Dimensions
Length0.17
Height0.59
Width0.17
UnitInch
Custom solutions
Dimensions and 3D view
Custom solutions
Dimensions
Length0.17
Height0.59
Width0.17
UnitInch
