Key Specifications and Ratings
UL recognized to use with supplementary fusesAC/DC ratingsSpace-saving compact sizeRetail Pack Quantity: 1PC
Voltage Rating250VAC 32VDC
Current Rating20A to 30A
Wire Gauge#12 - #14AWG
Wire ColorsRed
Wire Length7.87 Inches
Features and Application

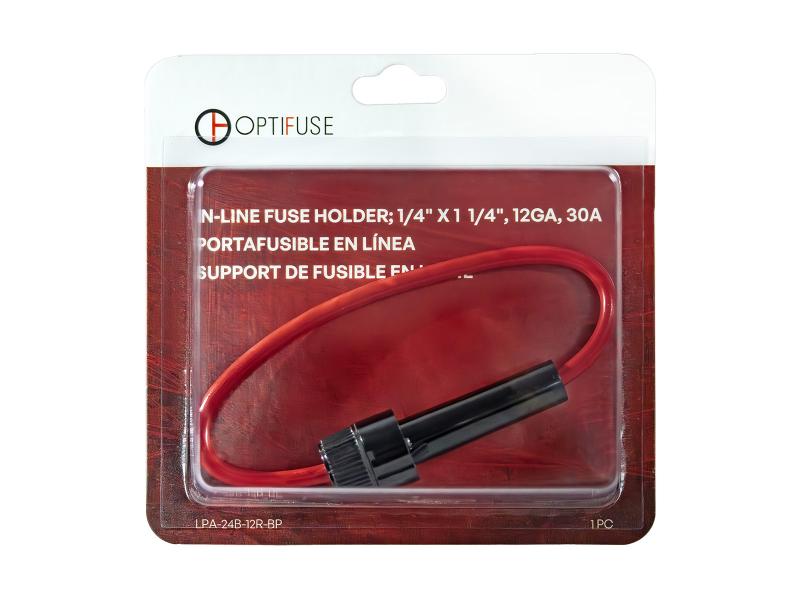

- Designed for use with 6.3 x 32mm fuses, this space-saving in-line fuse holder is ideal when no surface is available to install the fuse using another mounting type. Commonly used as a part of a wire harness assembly in electronic equipment, appliances, and lighting circuits.
- Intended for use in DC circuits (up to 32VDC) and AC circuits (up to 250VAC), this holder is configured with 14 AWG leads that are compatible with fuses up to 15A or 12 AWG leads that accept fuses up to 20A.
- UL recognized to use with special-purpose and supplementary cartridge fuses, and intended for installation in end-use equipment or products.
- NEW: Select products are available in attractive retail packaging including blister & clamshell packs and convenient multi amperage assortment packs.
UL File
Dimensions and 3D view
Dimensions
Length0.69
Height2.2
Width0.69
UnitInch
What is 3D CAD?
A 3D CAD (.STP) file ready to integrate into your project. Download and use it in your design software to streamline your workflow.
Custom solutions
Dimensions and 3D view
Custom solutions
Dimensions
Length0.69
Height2.2
Width0.69
UnitInch
What is 3D CAD?
A 3D CAD (.STP) file ready to integrate into your project. Download and use it in your design software to streamline your workflow.
Accessories and Mounting Devices
Use it with
