Key Specifications and Ratings
Water resistant design (IP 67)AC/DC ratingsSpace-saving compact sizeRetail Pack Quantity: 1PC
Voltage Rating250VAC 32VDC
Current Rating7.5A to 30A
Features and Application

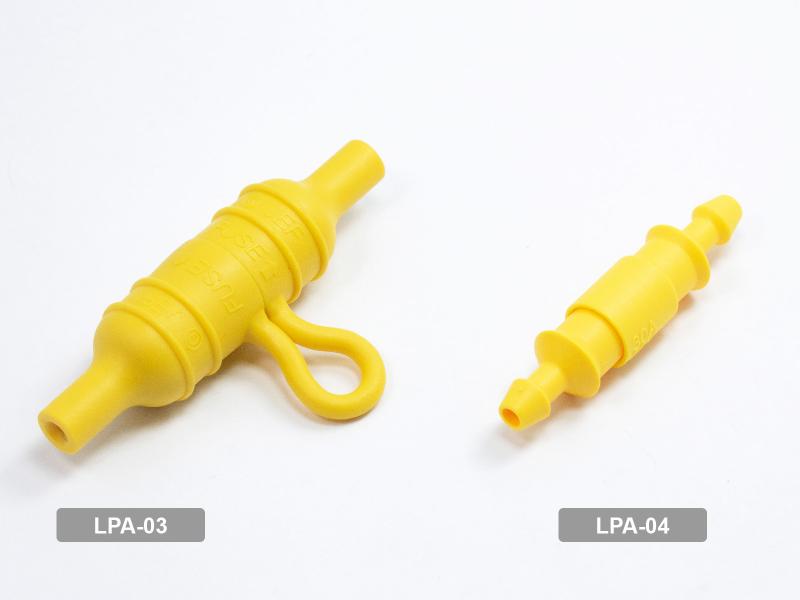

- Designed for use with 6.3 x 32mm fuses, this space-saving in-line fuse holder is ideal when no surface is available to install the fuse using another mounting type. Commonly used as a part of a wire harness assembly in electronic equipment, appliances, and lighting circuits.
- IP67 rated, it is designed for trailers and marine applications where water infiltration is a problem.
- Intended for use in DC circuits (up to 32VDC) and AC circuits (up to 250VAC), this holder accepts #10 to #20 wire leads (not provided). Standard version is #18AWG wire.
- NEW: Select products are available in attractive retail packaging including blister & clamshell packs and convenient multi amperage assortment packs.
Dimensions and 3D view
Dimensions
Length0.69
Height2.77
Width0.69
UnitInch
What is 3D CAD?
A 3D CAD (.STP) file ready to integrate into your project. Download and use it in your design software to streamline your workflow.
Custom solutions
Dimensions and 3D view
Custom solutions
Dimensions
Length0.69
Height2.77
Width0.69
UnitInch
What is 3D CAD?
A 3D CAD (.STP) file ready to integrate into your project. Download and use it in your design software to streamline your workflow.
