Key Specifications and Ratings
UL recognized to use with supplementary fusesAC/DC ratingsSpace-saving compact size
Voltage Rating250VAC 32VDC
Current Rating30A
Wire Gauge#12AWG
Wire ColorsRed
Wire Length6.3 Inches
Features and Application

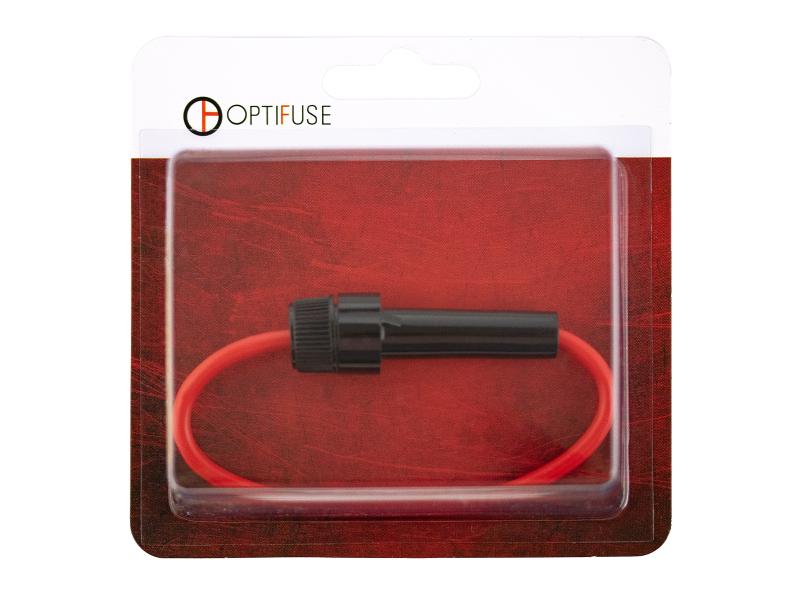

- Designed for use with 5 x 20mm fuses, this space-saving in-line fuse holder is ideal when no surface is available to install the fuse using another mounting type. Commonly used as a part of a wire harness assembly in electronic equipment, appliances, and lighting circuits.
- Intended for use in DC circuits (up to 32VDC) and AC circuits (up to 250VAC)., this holder can safely handle current up to 20A.
- UL recognized to use with special-purpose and supplementary cartridge fuses, and intended for installation in end-use equipment or products.
UL File
Dimensions and 3D view
Dimensions
Length0.69
Height2.11
Width0.69
UnitInch
What is 3D CAD?
A 3D CAD (.STP) file ready to integrate into your project. Download and use it in your design software to streamline your workflow.
Custom solutions
Dimensions and 3D view
Custom solutions
Dimensions
Length0.69
Height2.11
Width0.69
UnitInch
What is 3D CAD?
A 3D CAD (.STP) file ready to integrate into your project. Download and use it in your design software to streamline your workflow.
Accessories and Mounting Devices
