Key Specifications and Ratings
UL recognized to use with supplementary fusesSpace-saving compact size
Voltage Rating250VAC
Current Rating15A
Wire Gauge#16AWG
Wire ColorsRed
Wire Length6 Inches
Features and Application

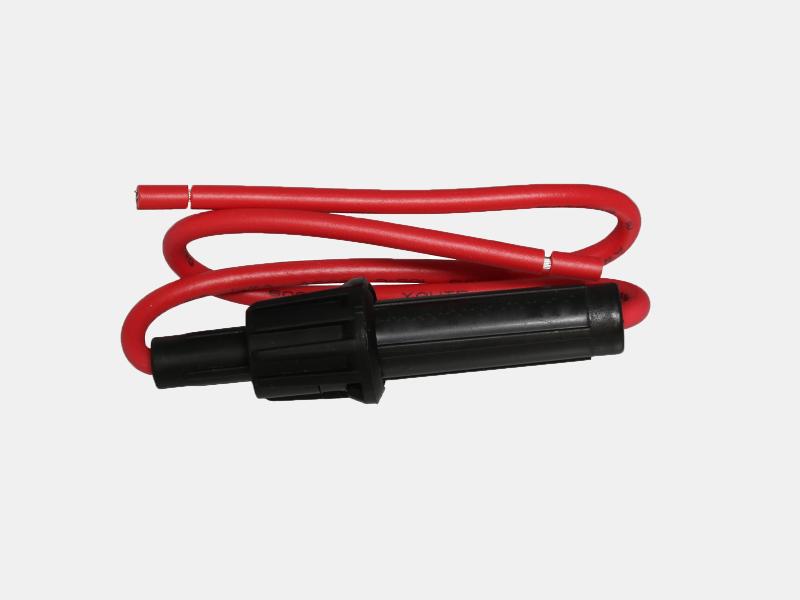

- Designed for use with 6.3 x 32mm fuses, this space-saving in-line fuse holder is ideal when no surface is available to install the fuse using another mounting type. Commonly used as a part of a wire harness assembly in electronic equipment, appliances, and lighting circuits.
- Intended for use at 250VAC max rated up to 10A, this holder is UL recognized to use with special-purpose and supplementary cartridge fuses, and is intended for installation in end-use equipment or products.
UL File
Dimensions and 3D view
Dimensions
Length0.52
Height2.3
Width0.52
UnitInch
What is 3D CAD?
A 3D CAD (.STP) file ready to integrate into your project. Download and use it in your design software to streamline your workflow.
Custom solutions
Dimensions and 3D view
Custom solutions
Dimensions
Length0.52
Height2.3
Width0.52
UnitInch
What is 3D CAD?
A 3D CAD (.STP) file ready to integrate into your project. Download and use it in your design software to streamline your workflow.
Accessories and Mounting Devices
Use it with
