Key Specifications and Ratings
Shock-Safe fuse holderScrew capScrewdriver release
Voltage Rating250VAC
Current Rating15A
Features and Application

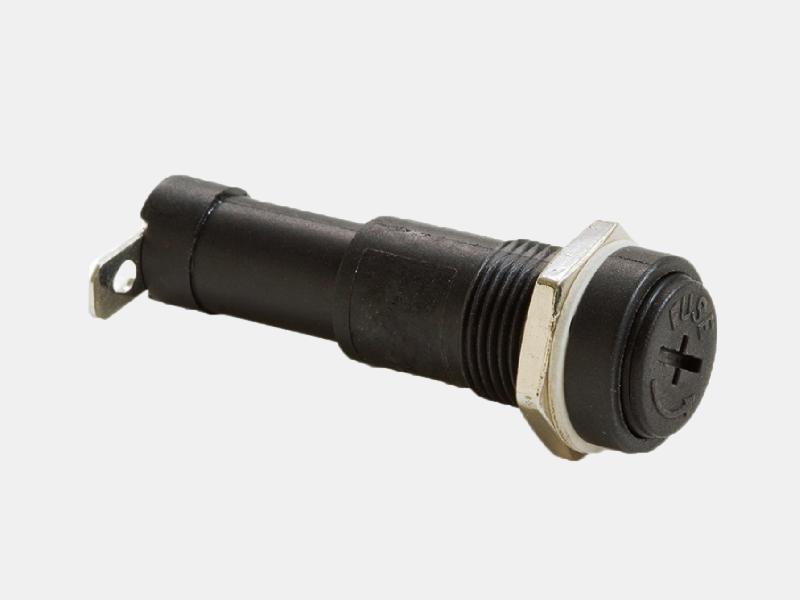

- Panel-mounted fuse holder for 6.3 x 32mm fuses used in electronic equipment, appliances, and lighting circuits.
- With a screw cap that provides superior water and condensation resistance, and a convenient screwdriver release to access the fuse.
- Manufactured to withstand harsh environmental conditions with an IP55 rated splashproof cap.
- This holder comes with 0.187” quick-connect tabs.
UL File
Dimensions and 3D view
Dimensions
Length0.59
Height1.72
Width0.59
UnitInch
What is 3D CAD?
A 3D CAD (.STP) file ready to integrate into your project. Download and use it in your design software to streamline your workflow.
Custom solutions
Dimensions and 3D view
Custom solutions
Dimensions
Length0.59
Height1.72
Width0.59
UnitInch
What is 3D CAD?
A 3D CAD (.STP) file ready to integrate into your project. Download and use it in your design software to streamline your workflow.
