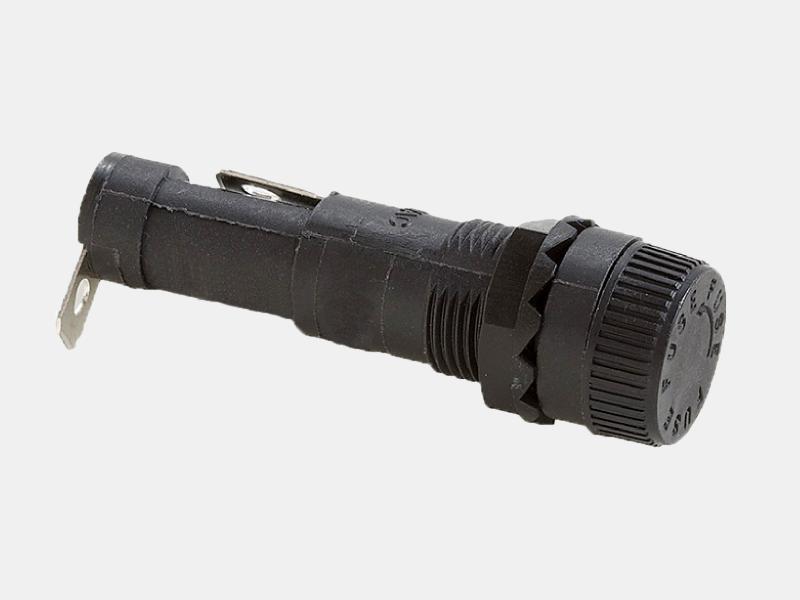

PMA-KB-05-Q1R Bayonet Fuse Holder with Quick-Connect for Appliances
Disclaimer Notice
PMA-KB-05-Q1R Bayonet Fuse Holder with Quick-Connect for Appliances
Disclaimer Notice
Panel Mount - 6.3x32 mm - Bayonet Cap - Finger Release
Contact Sales
Find a DistributorKey Specifications and Ratings
Shock-Safe fuse holderBayonet capFinger release
Voltage Rating250VAC
Current Rating15A
Features and Application
- Panel-mounted fuse holder for 6.3 x 32mm fuses used in electronic equipment, appliances, and lighting circuits.
- With a bayonet cap that opens conveniently with a ¼ turn, and a release that allows the user to remove the fuse with just their fingers.
- This holder comes with 0.187” quick-connect tabs.
UL File
Dimensions and 3D view
Dimensions
Length0.59
Height1.97
Width0.59
UnitInch
Custom solutions
Dimensions and 3D view
Custom solutions
Dimensions
Length0.59
Height1.97
Width0.59
UnitInch
Related products
You can also use
PMA-KB-08-Q1S
Current Rating10A
Voltage Rating250VAC
PMA-KB-03-Q2S
Current Rating10A
Voltage Rating250VAC
PMA-KB-01H-SOS
Current Rating30A
Voltage Rating250VAC
Accessories and Mounting Devices
Use it with
FSA / FSA-P
Current Rating100mA to 30A
Voltage Rating250VAC 32VDC
FCA / FCA-P
Current Rating300mA to 30A
Voltage Rating250VAC
TSA / TSA-P
Current Rating200mA to 30A
Voltage Rating250VAC
