Key Specifications and Ratings
Shock-Safe fuse holderVertical designUL recognized to use with supplementary fuses
Voltage Rating250VAC
Current Rating10A
Features and Application

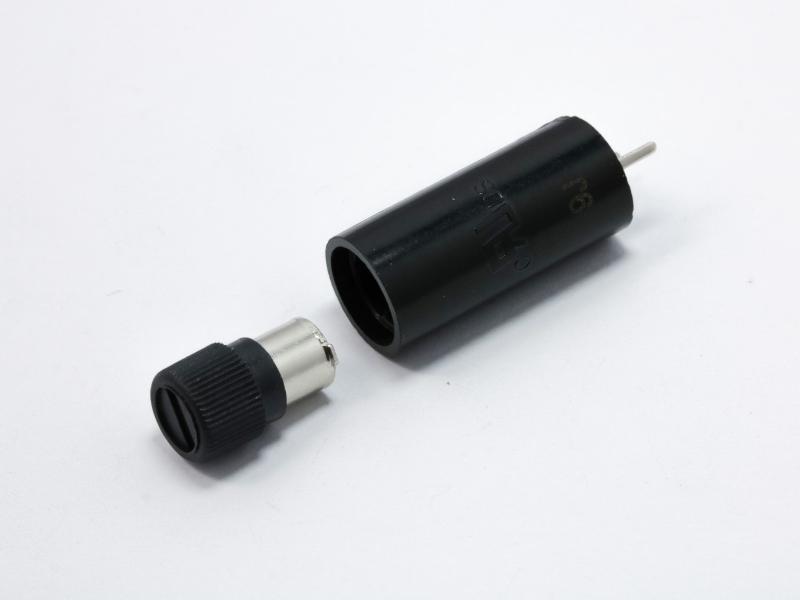

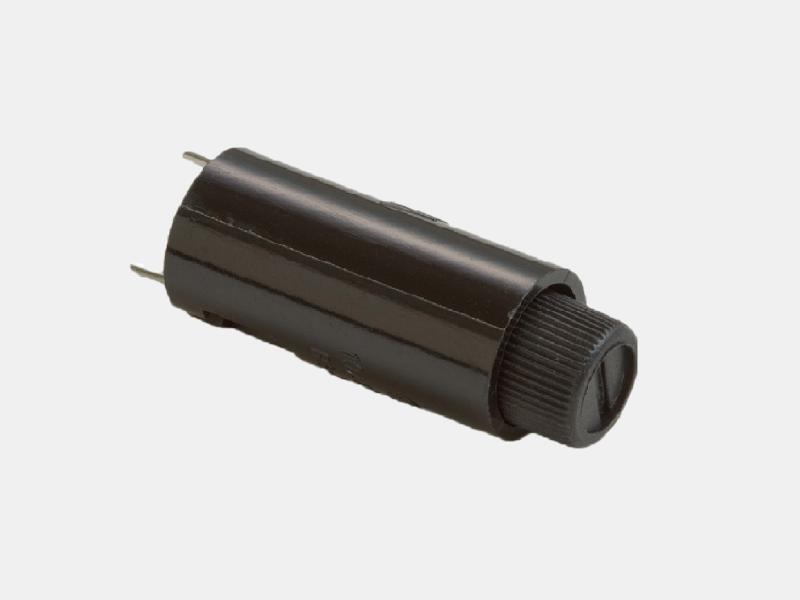

- PCB-Mounted fuse holder for 5 x 20mm fuses used in electronics applications, designed for vertical mounting and with a bayonet cap that requires a simple ¼ turn to remove.
- This holder’s release allows for easy access to the fuse with just the fingers or with the use of a screwdriver.
- UL recognized to use with special-purpose and supplementary cartridge fuses, and intended for installation in end-use equipment or products.
UL File
Dimensions and 3D view
Dimensions
Length0.47
Height1.42
Width0.47
UnitInch
What is 3D CAD?
A 3D CAD (.STP) file ready to integrate into your project. Download and use it in your design software to streamline your workflow.
Custom solutions
Dimensions and 3D view
Custom solutions
Dimensions
Length0.47
Height1.42
Width0.47
UnitInch
What is 3D CAD?
A 3D CAD (.STP) file ready to integrate into your project. Download and use it in your design software to streamline your workflow.
