Key Specifications and Ratings
Consolidates 6 circuitsIndependent circuitsComes with clear, insulating cover
Voltage Rating32VDC
Current Rating30A
Features and Application

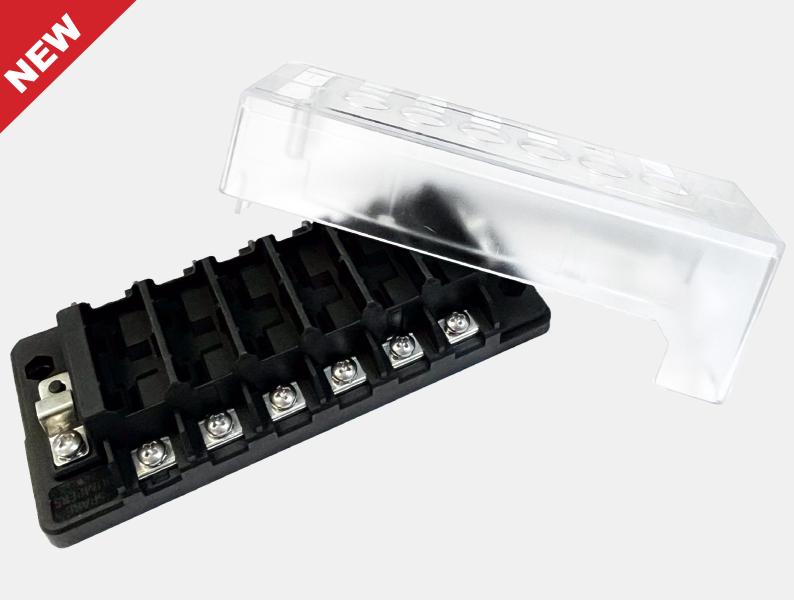

- Installing CBW57 and CBW58 circuit breakers is now easy with OptiFuse’s BLCBW-206. This block consolidates 6 independently sourced branch circuits in one compact block, making it convenient to combine switched and unswitched circuits in boats or RVs.
- The rated current is 30A per position.

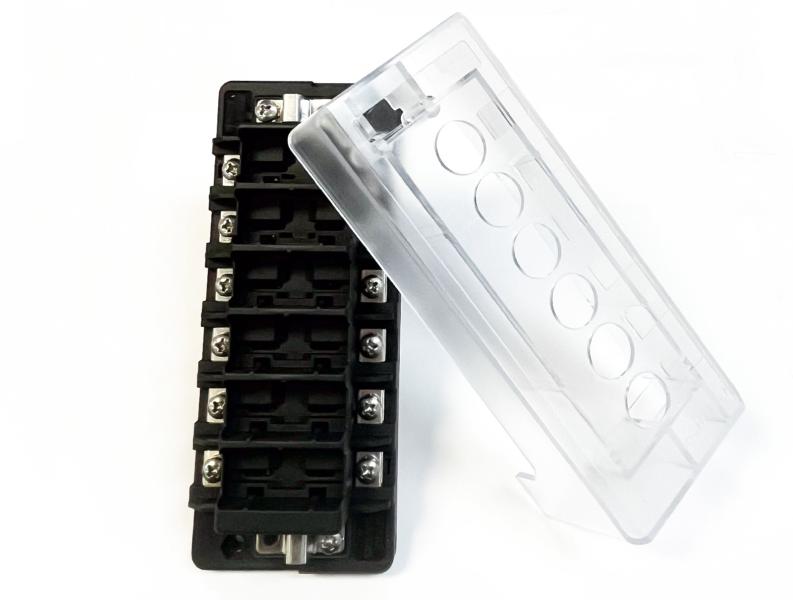

- Comes with an insulating cover that offers protection against short circuits, as well as from dirt, dust, and splashes. It allows for manual reset without the removal of the cover and gives great visibility to check the status of each individual circuit breaker.
Dimensions and 3D view
Dimensions
Length6.3
Height2.2
Width2.58
UnitInch
What is 3D CAD?
A 3D CAD (.STP) file ready to integrate into your project. Download and use it in your design software to streamline your workflow.
Custom solutions
Dimensions and 3D view
Custom solutions
Dimensions
Length6.3
Height2.2
Width2.58
UnitInch
What is 3D CAD?
A 3D CAD (.STP) file ready to integrate into your project. Download and use it in your design software to streamline your workflow.
