Key Specifications and Ratings
Mini styleHigher voltageIgnition protected
Voltage Rating125VDC
Current Rating1A to 15A
Interrupt Rating 1000A DC
Features and Application
- 125VDC blade fuse, compatible with vehicle electrical power systems designed for the 42V architecture. Smaller than standard Regular (ATO/ATC style) blade fuses, this fuse can control more circuits by occupying less space.
- Ignition protected and filled with sand to cool vaporized metal that forms when the fuse blows, thus preventing it from ionizing and in turn stopping an arc from carrying current after the fusible link has melted.
- This fuse is intended for use in higher voltage systems aimed at reducing the current requirements of modern vehicles with increasing power needs. Raising the voltage helps minimize the size of the wiring, contributing to overall vehicle weight reduction and improved efficiency.

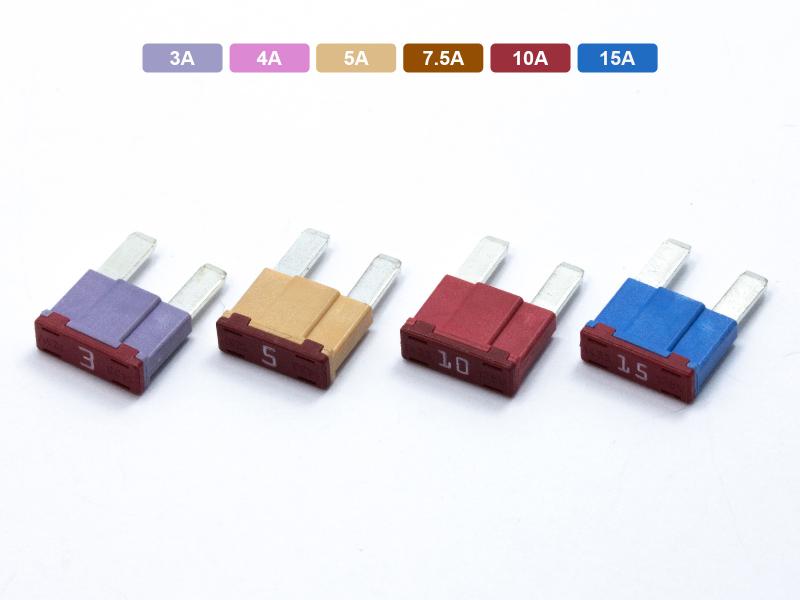

- It features industry-standard color coding for easy amperage identification.
Dimensions and 3D view
Dimensions
Length0.46
Height0.65
Width0.16
UnitInch
What is 3D CAD?
A 3D CAD (.STP) file ready to integrate into your project. Download and use it in your design software to streamline your workflow.
