Key Specifications and Ratings

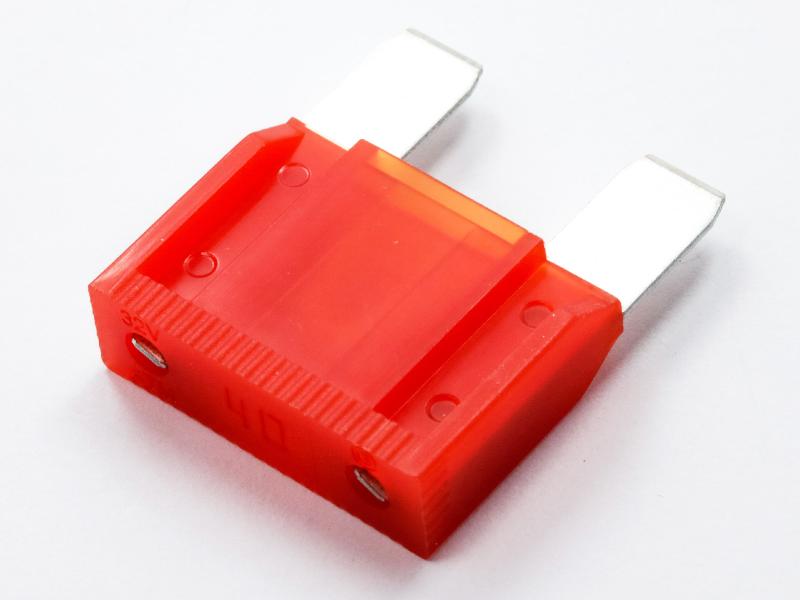

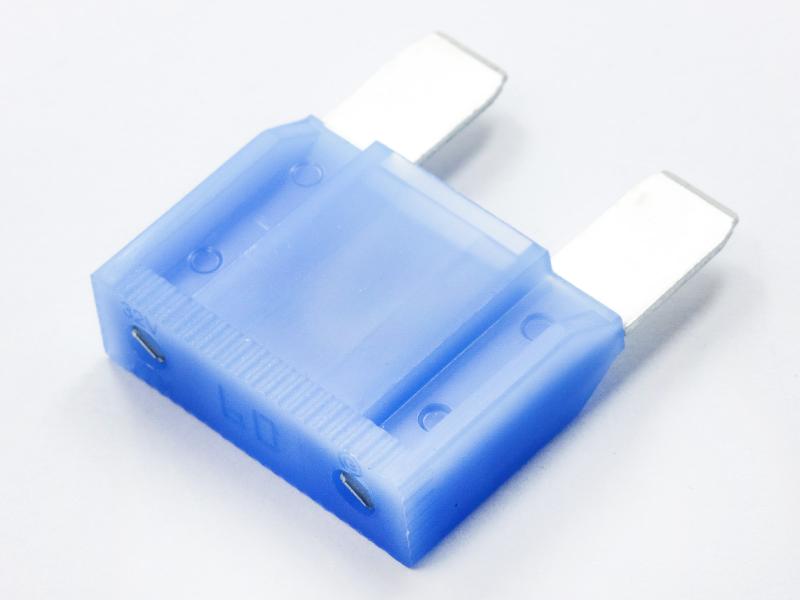

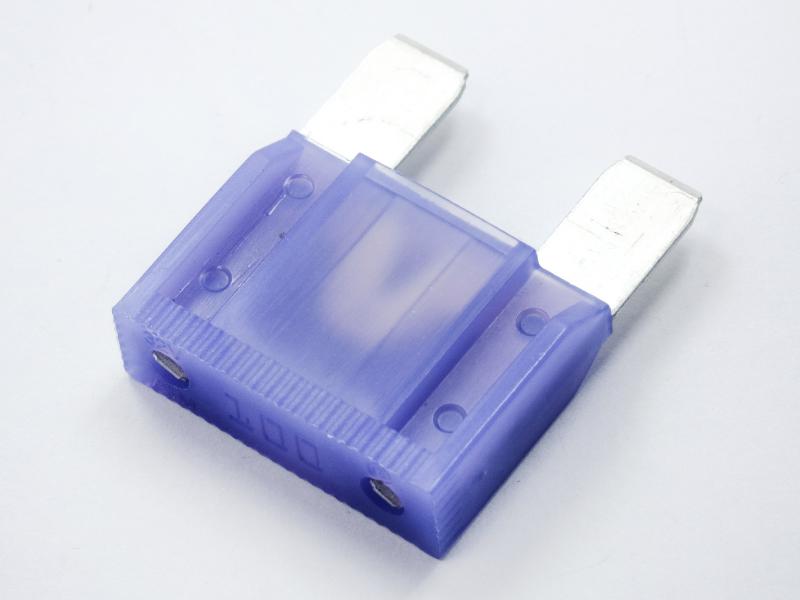

Maxi styleUL recognizedNylon housing
Voltage Rating32VDC
Current Rating20A to 100A
Interrupt Rating 1000A DC
Features and Application
- The largest blade style fuse, this is built for heavy-duty loads associated with DC battery operated equipment.
- UL recognized, enabling OEM companies to satisfy requirements from UL.

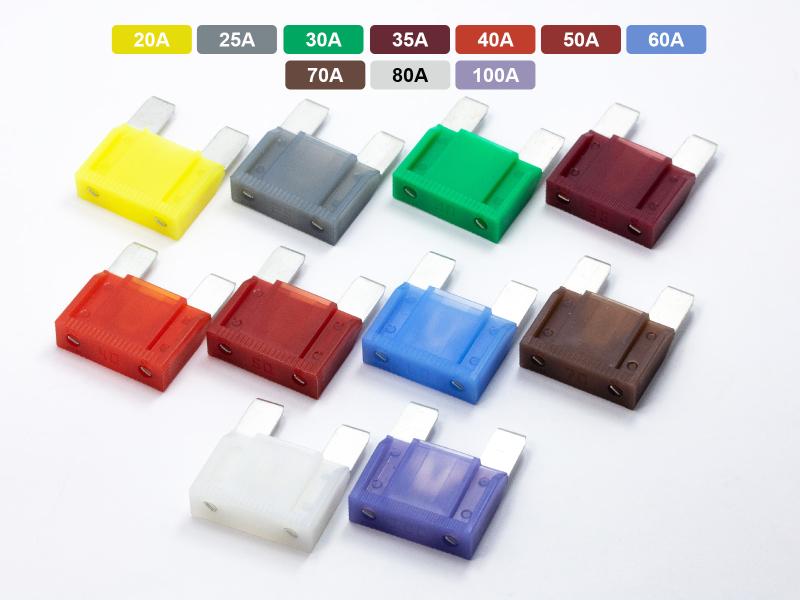

- Designed with industry-standard color coding for easy amperage identification.
UL File
Dimensions and 3D view
Dimensions
Length1.15
Height1.35
Width0.35
UnitInch
What is 3D CAD?
A 3D CAD (.STP) file ready to integrate into your project. Download and use it in your design software to streamline your workflow.
Custom solutions
Dimensions and 3D view
Custom solutions
Dimensions
Length1.15
Height1.35
Width0.35
UnitInch
What is 3D CAD?
A 3D CAD (.STP) file ready to integrate into your project. Download and use it in your design software to streamline your workflow.
