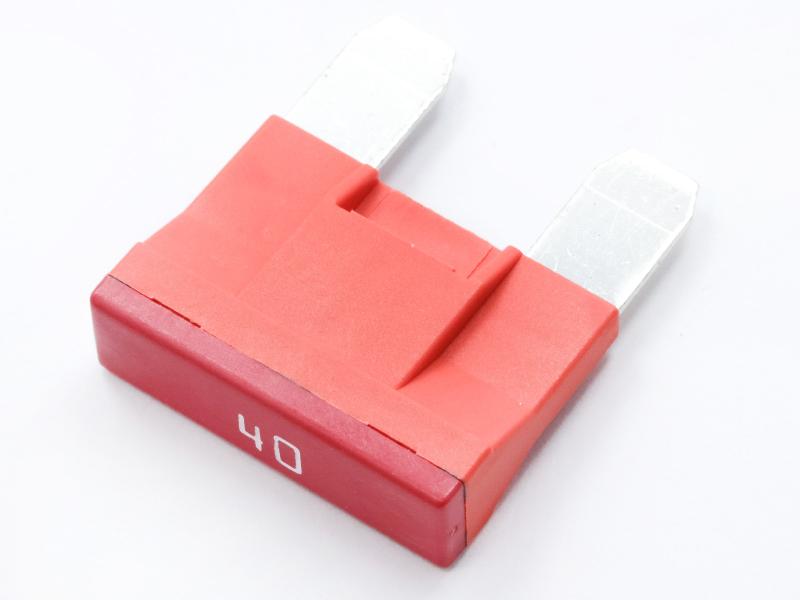

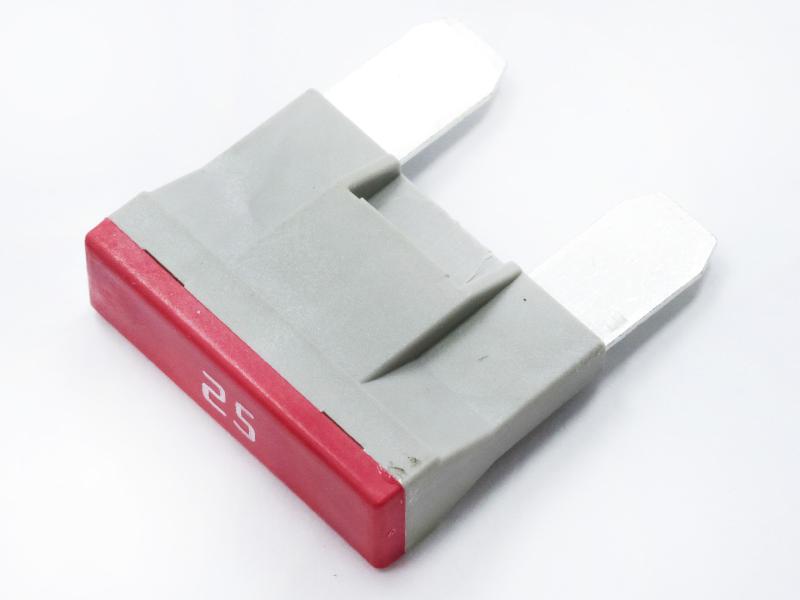

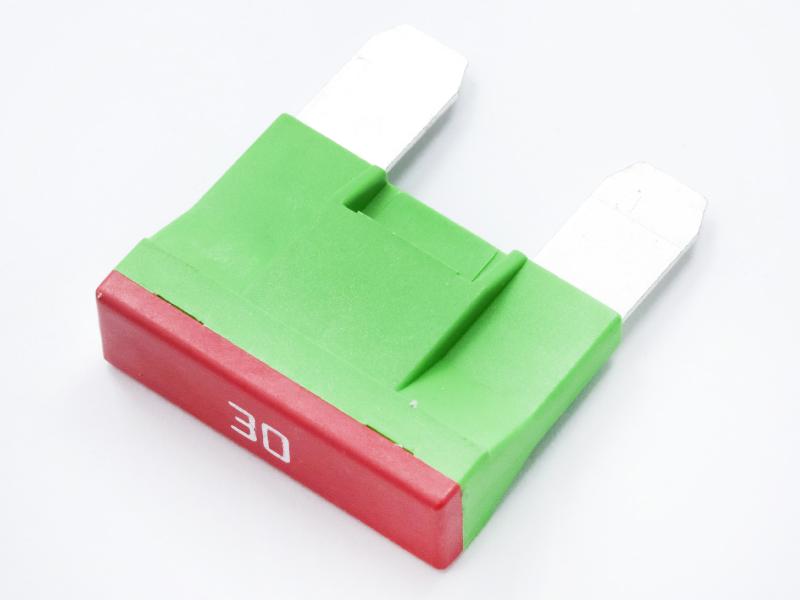

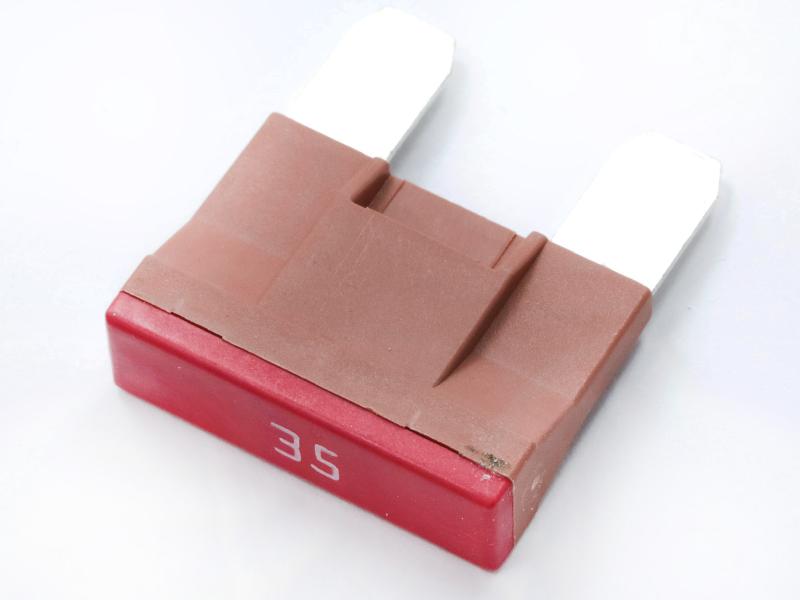

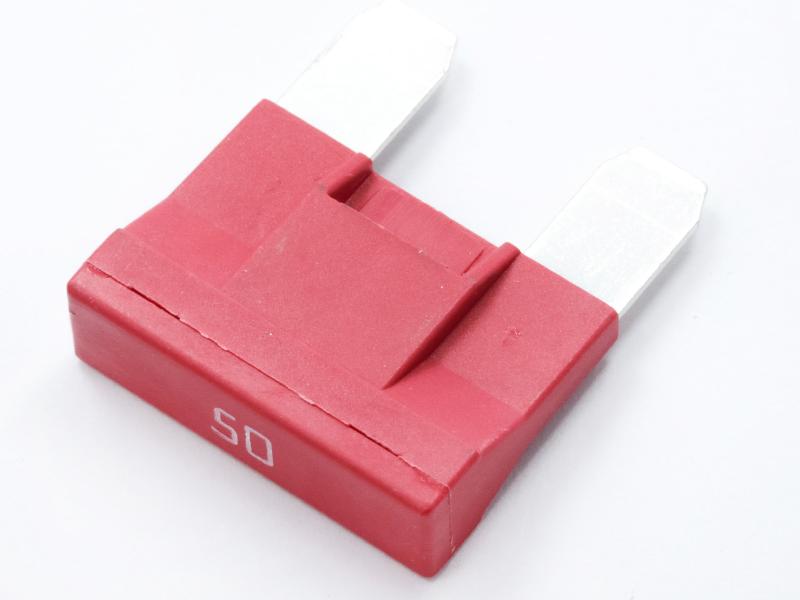

ANX80-UL


ANX80-UL

Blade - Maxi Style - UL Approved - High Voltage
curus certification image
ul248 certification image
RoHS certification image
REACH certification image
Key Specifications and Ratings
Maxi styleUL recognizedHigher voltage
Voltage Rating80VDC

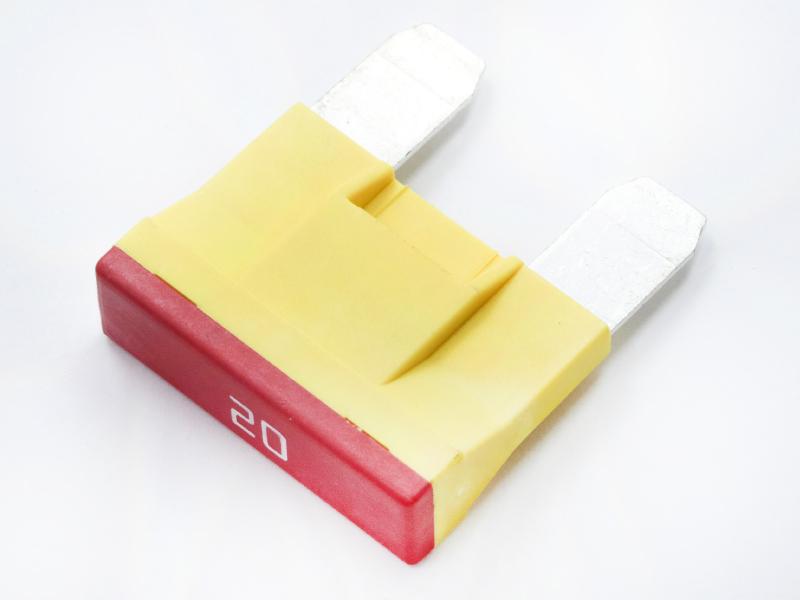

Current Rating20A to 60A
Interrupt Rating 1000A DC
Features and Application
  • 80VDC UL recognized blade fuse, designed for heavy-duty applications. Compatible with vehicle electrical power systems designed for the 42V architecture.
  • This fuse is intended for use in higher voltage systems aimed at reducing the current requirements of modern vehicles with increasing power needs. Raising the voltage helps minimize the size of the wiring, contributing to overall vehicle weight reduction and improved efficiency.

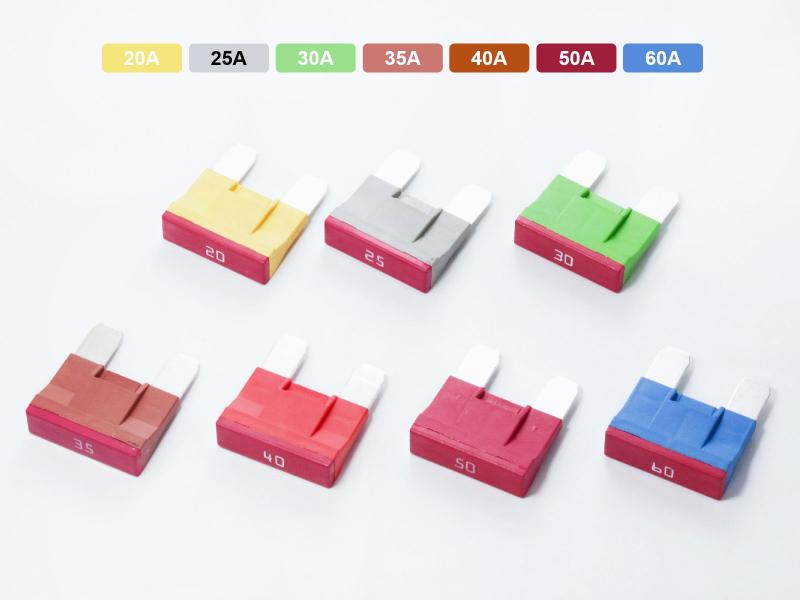

  • It features industry-standard color coding for easy amperage identification.
Dimensions and 3D view
Dimensions
Length1.18
Height1.35
Width0.35
UnitInch
Custom solutions
Dimensions and 3D view
Custom solutions
Dimensions
Length1.18
Height1.35
Width0.35
UnitInch
