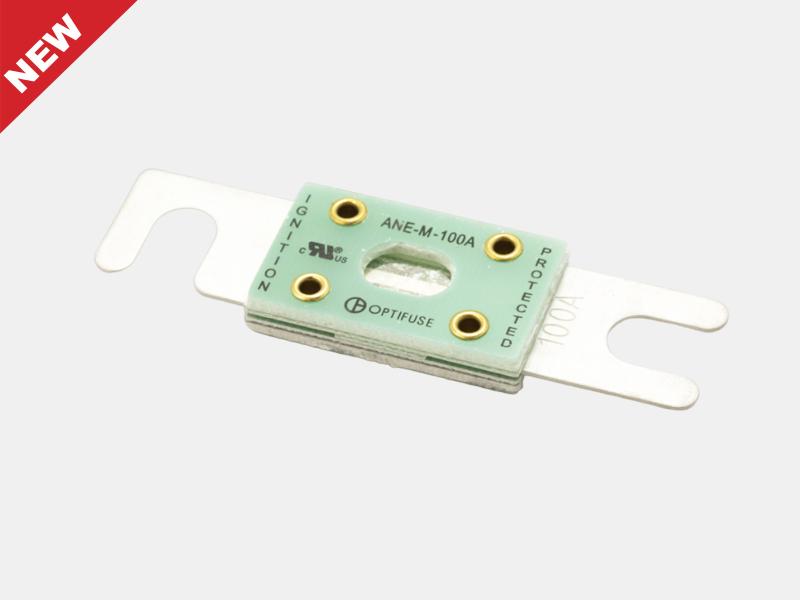

ANE-M


ANE-M

Bolt-On - Limiter Fuse - Ignition Protected
curus certification image
ul248 certification image
ISO certification image
SAE certification image
RoHS certification image
REACH certification image
Key Specifications and Ratings
Marine rated limiter fuse61.8mm center-to-center bolt-on5/16" (M8) terminals
Voltage Rating125VDC
Current Rating40A to 600A
Interrupt Rating 6000A DC
Features and Application
  • Ignition protected fuse designed for loads up to 500A and circuits up to 125VDC. This fuse opens swiftly when exposed to temporary overload currents that might occur with DC battery powered equipment, whose heavy-duty loads can lead to power surges.
  • Approved for installation aboard gasoline-powered boats, it meets the SAE J1171 standards and features silver-plated terminals for corrosion resistance. With a 6,000A Interrupt Rating, it satisfies ABYC requirements for DC main circuit protection on large battery banks, making it suitable for use alongside a vehicle's battery as the primary source of power protection.
  • Additionally, its clear window allows for easy identification of open fuses, while its blade design permits straightforward replacement by loosening the nuts without complete removal.
Dimensions and 3D view
Dimensions
Length3.19
Height0.27
Width0.88
UnitInch
Custom solutions
Dimensions and 3D view
Custom solutions
Dimensions
Length3.19
Height0.27
Width0.88
UnitInch
